GX-6000 Benzene Personal PID Gas Monitor

Features:

Benzene specific measurement
- 0.01 – 50 ppm with 10.0 eV PID lamp and pre-filter tube
Benzene select mode takes timed samples using pre-filter tube
Long break through times for benzene filter tubes
10.0 eV Selective PID sensor
- 0 – 100 ppm VOC range
- Library of over 300 VOC’s including BTEX
- Humidity resistant
Easily switched VOC target gas
- Favorite list of 30 VOC’s
- Recently used list of 8 VOC’s
Dual channel PIDs utilizing both 10.0 & 10.6 PID sensors
2 smart sensor slots auto recognize PID, IR, and super toxic sensors
Internal sample pump
Dust & Water resistant IP-67 design
Interchangeable battery packs Li-ion / alkaline
Operates up to 14 hours on Li-ion battery pack, fully recharges in 3 hours

Application/s:

Petroleum / Oil refining
Chemical manufacturing
Rubber & Tire manufacturing
Coke & Coal manufacturing
Fuel Storage & Tank Farms
Hazmat response teams

Overview
Specifications
Detectable Ranges
Downloads
Videos
Accessories

Overview of the Benzene Personal PID gas monitor:

The GX-6000 personal Benzene PID gas monitor is the lightest and smallest Benzene monitor created, weighing in at only 600 grams with the rubber boot.

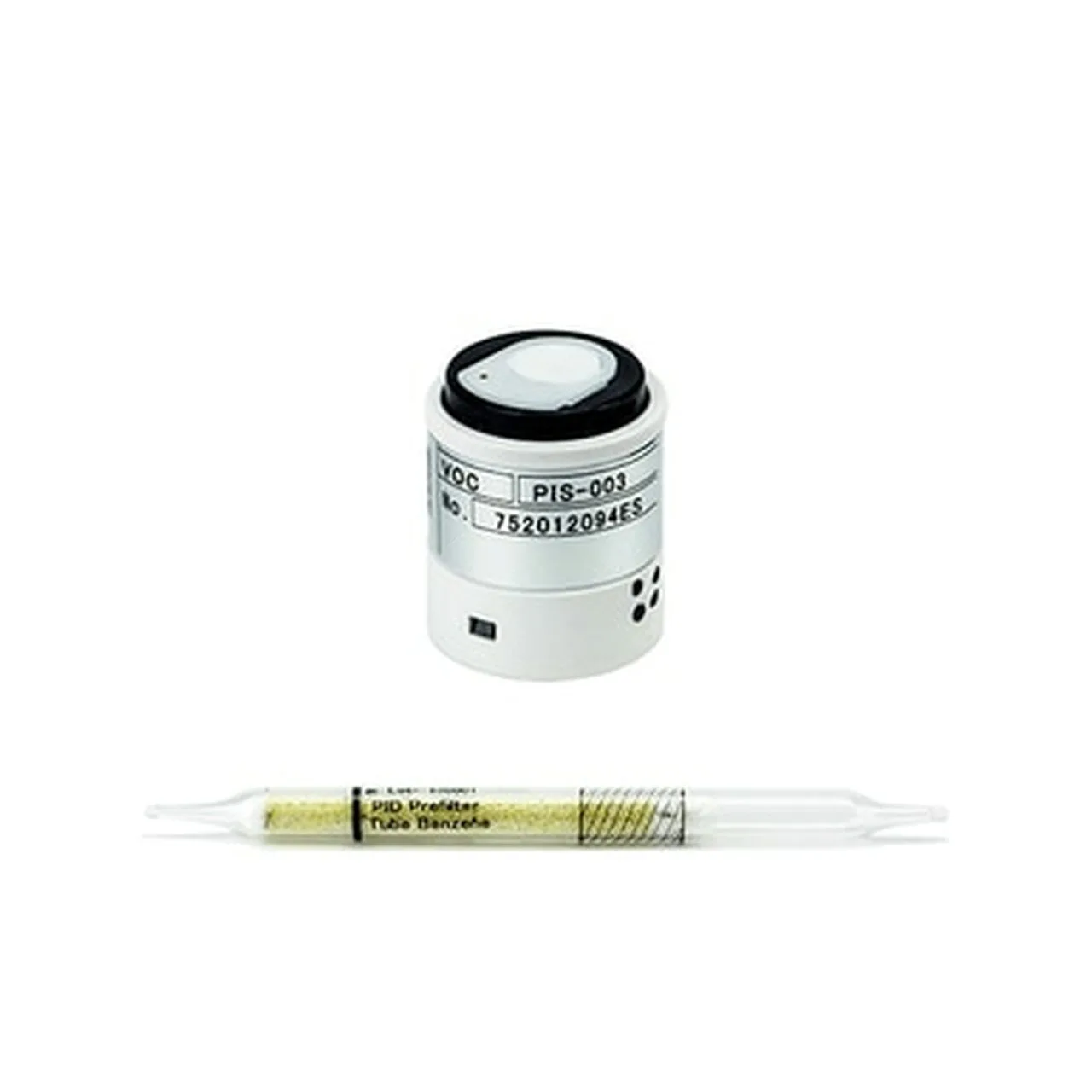

Simply put, the GX-6000 is a game changer with Benzene Specific measuring mode. With a library of over 300 VOC’s and the addition of the highly selective 10.0 eV PID sensor, the GX-6000 can now detect the BTEX (benzene, toluene, ethylbenzene, and xylene) family of VOC’s up to 100 ppm. By using filtering tubes and the tube holder, the GX-6000 can monitor specifically for Benzene at a range of 0 – 50ppm (with resolutions as small as 0.01) by filtering out all other VOC’s. The filter tube holder has a unique break away design for accidental damage. The filter tube also has a safe and convenient glass breaker for the filter tube tips.

The GX-6000 is the only PID instrument in the market with the ability to utilise two PID sensors in one instrument. When using the broad range 10.6eV PID for preliminary investigation, it is possible to switch to benzene mode for a highly accurate measurement.

The GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating. With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and loud audible alarm, GX-6000 will easily alert users when needed.

Specifications:

Alarm Types	Gas alarm	Man-down	Trouble
	Low and high adjustable	1st – self reset 2nd – latching	Low flow Sensor connection Low battery Circuit error Calibration range
Sample Method	Sample draw pump, flow rate 0.45 LPM, 30m sample range
Display	Digital LCD, autobacklite, peak bar display, auto display rotation, and customize order of gases
Audible Alarm	95 dB at 1 ft.
Languages	English, German, Japanese, Korean, Russian
Continuous Operation *	14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50?), 0- 95% RH non condensing
Dimensions / Weight	2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals	Explosion proof: IECEx , ATEX
Standard Features	2 Smart sensors slots auto recognise sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode
Standard Accessories	Rubber boot Belt clip Hand strap Tapered nozzle Probe with hydrphobic filter and 3’ teflon lined hose
Optional Accessories	Lithium-ion battery pack & charger / alkaline battery charger Filter set • IrDA cable
Warranty	Two years material (including sensors) and workmanship. One year for PID sensor

Gas	Measuring Range	Minimum Display	Alarm Set Points	Accuracy * Which ever is greater
PID Sensors
10.6 PID Lamp 600 VOC’s	0 – 50,000 ppb	1 ppb (< 5000 ppb) 10 ppb (> 5,000 ppb)	A1: 5,000 ppb	+5% of full scale
			A2: 10,000 ppb
	0 – 6,000 ppm	0.1 ppm (< 600 ppm) 1 ppm (> 600 ppm)	A1: 400 ppm
			A2: 1,000 ppm
10.0 PID Lamp Benzene Specific No Alarms 300 VOC’s 0 – 100 ppm	Benzene Specific 0.1 – 50 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm)	no alarms
	300 VOC’s 0 – 100 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm)	A1: 5 ppm
			A2: 10 ppm
Catalytic
Hydrocarbons (CH4, std)	0 – 100% LEL	1% LEL	A1: 10%LEL	± 5% of reading or ± 2% LEL (*)
			A2: 50%LEL
Galvanic
Oxygen (O2)	0 – 40% Vol.	0.1% Vol.	A1: 19.5 Vol.	± 0.5% O2
			A2: 23.5 Vol.
Electro Chemical
Carbon Monoxide (CO)	0 – 500 ppm	1 ppm	A1: 25 ppm	± 5% of reading or ± 5 ppm
			A2: 50 ppm
			TWA 25 ppm
			STEL 200 ppm
Hydrogen Sulfide (H2S)	0 – 100 ppm	0.5 ppm	A1: 5.0 ppm	± 5% of reading or± 2 ppm
			A2: 30.0 ppm
			TWA 1.0 ppm
			STEL 5.0 ppm
Toxics (EC Sensors)
Ammonia (NH3)*	0 – 75 ppm 0 – 400 ppm	0.5 ppm 5 ppm	A1: 25 ppm	± 10% of reading or ± 5% of full scale (*)
			A2: 50 ppm
Chlorine (Cl2)*	0 – 3 ppm 0 – 10 ppm	0.05 ppm 0.1 ppm	A1: 0.5 ppm
			A2: 1.0 ppm
Hydrogen Cyanide (HCN)	0 – 15 ppm	0.1 ppm	A1: 5 ppm
			A2: 10 ppm
Nitrogen Dioxide (NO2)	0 – 20 ppm	0.05 ppm	A1: 3 ppm
			A2: 6 ppm
Sulfur Dioxide (SO2)	0 – 100 ppm		A1: 2 ppm
			A2: 5 ppm
IR Sensors
Carbon Dioxide (CO2)	0 – 10% vol	25 ppm 0.2%	A1: 5,000 ppm	± 5% of reading or ± 2% of full scale (*)
			TWA 5,000 ppm
			STEL 10,000
Methane (CH4)*	0 – 100% LEL/ 0 – 100% Vol.	Vol. 1% LEL / 0.5% Vol	A1: 10% LEL
Hydrocarbons**	0 – 100% LEL/ 0 – 30% Vol.		A2: 50% LEL
PID Sensors
VOC	0 – 50,000 ppb	1 ppb (< 5000 ppb) 10 ppb (> 5,000 ppb)	A1: 5,000 ppb	+10% of reading + 1 digit
			A2: 10,000 ppb
	0 – 6,000 ppm	0.1 ppm (< 600 ppm) 1 ppm (> 600 ppm)	A1: 400 ppm
			A2: 1,000 ppm

Downloads:

Manual

GX-6000 Benzene Manual

Specifications:

GX-6000 Benzene Datasheet

GX-6000 Webinar

SDM-6000

Sampling Hose & Probe

Red Boot

Overview

Overview of the Benzene Personal PID gas monitor:

The GX-6000 personal Benzene PID gas monitor is the lightest and smallest Benzene monitor created, weighing in at only 600 grams with the rubber boot.

Specifications

Specifications:

Alarm Types	Gas alarm	Man-down	Trouble
	Low and high adjustable	1st – self reset 2nd – latching	Low flow Sensor connection Low battery Circuit error Calibration range
Sample Method	Sample draw pump, flow rate 0.45 LPM, 30m sample range
Display	Digital LCD, autobacklite, peak bar display, auto display rotation, and customize order of gases
Audible Alarm	95 dB at 1 ft.
Languages	English, German, Japanese, Korean, Russian
Continuous Operation *	14 hours on Lithium-ion battery pack. Complete recharge in 3 hours. 8 hours Alkaline battery pack (3 AA size within each pack)
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50?), 0- 95% RH non condensing
Dimensions / Weight	2.6” W x 7.8” H x 2” D (H200 x W68 x D52 mm) 14 ounce (400g) (with lithium battery pack)
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals	Explosion proof: IECEx , ATEX
Standard Features	2 Smart sensors slots auto recognise sensor changes Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode
Standard Accessories	Rubber boot Belt clip Hand strap Tapered nozzle Probe with hydrphobic filter and 3’ teflon lined hose
Optional Accessories	Lithium-ion battery pack & charger / alkaline battery charger Filter set • IrDA cable
Warranty	Two years material (including sensors) and workmanship. One year for PID sensor

Detectable Ranges

Gas	Measuring Range	Minimum Display	Alarm Set Points	Accuracy * Which ever is greater
PID Sensors
10.6 PID Lamp 600 VOC’s	0 – 50,000 ppb	1 ppb (< 5000 ppb) 10 ppb (> 5,000 ppb)	A1: 5,000 ppb	+5% of full scale
			A2: 10,000 ppb
	0 – 6,000 ppm	0.1 ppm (< 600 ppm) 1 ppm (> 600 ppm)	A1: 400 ppm
			A2: 1,000 ppm
10.0 PID Lamp Benzene Specific No Alarms 300 VOC’s 0 – 100 ppm	Benzene Specific 0.1 – 50 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm)	no alarms
	300 VOC’s 0 – 100 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm)	A1: 5 ppm
			A2: 10 ppm
Catalytic
Hydrocarbons (CH4, std)	0 – 100% LEL	1% LEL	A1: 10%LEL	± 5% of reading or ± 2% LEL (*)
			A2: 50%LEL
Galvanic
Oxygen (O2)	0 – 40% Vol.	0.1% Vol.	A1: 19.5 Vol.	± 0.5% O2
			A2: 23.5 Vol.
Electro Chemical
Carbon Monoxide (CO)	0 – 500 ppm	1 ppm	A1: 25 ppm	± 5% of reading or ± 5 ppm
			A2: 50 ppm
			TWA 25 ppm
			STEL 200 ppm
Hydrogen Sulfide (H2S)	0 – 100 ppm	0.5 ppm	A1: 5.0 ppm	± 5% of reading or± 2 ppm
			A2: 30.0 ppm
			TWA 1.0 ppm
			STEL 5.0 ppm
Toxics (EC Sensors)
Ammonia (NH3)*	0 – 75 ppm 0 – 400 ppm	0.5 ppm 5 ppm	A1: 25 ppm	± 10% of reading or ± 5% of full scale (*)
			A2: 50 ppm
Chlorine (Cl2)*	0 – 3 ppm 0 – 10 ppm	0.05 ppm 0.1 ppm	A1: 0.5 ppm
			A2: 1.0 ppm
Hydrogen Cyanide (HCN)	0 – 15 ppm	0.1 ppm	A1: 5 ppm
			A2: 10 ppm
Nitrogen Dioxide (NO2)	0 – 20 ppm	0.05 ppm	A1: 3 ppm
			A2: 6 ppm
Sulfur Dioxide (SO2)	0 – 100 ppm		A1: 2 ppm
			A2: 5 ppm
IR Sensors
Carbon Dioxide (CO2)	0 – 10% vol	25 ppm 0.2%	A1: 5,000 ppm	± 5% of reading or ± 2% of full scale (*)
			TWA 5,000 ppm
			STEL 10,000
Methane (CH4)*	0 – 100% LEL/ 0 – 100% Vol.	Vol. 1% LEL / 0.5% Vol	A1: 10% LEL
Hydrocarbons**	0 – 100% LEL/ 0 – 30% Vol.		A2: 50% LEL
PID Sensors
VOC	0 – 50,000 ppb	1 ppb (< 5000 ppb) 10 ppb (> 5,000 ppb)	A1: 5,000 ppb	+10% of reading + 1 digit
			A2: 10,000 ppb
	0 – 6,000 ppm	0.1 ppm (< 600 ppm) 1 ppm (> 600 ppm)	A1: 400 ppm
			A2: 1,000 ppm

Downloads
