GX-FORCE Portable Four Gas Detector with Pump

Features:

Easy-to-grip lightweight design. Approx 280g
3 Year sensor warranty
Intrinsically safe explosion-proof construction, flame-proof enclosure
Continuous operating time: Approx 30 hours
Passes 3m drop testing
Protection rating equivalent to IP67

Application/s

Confined spaces
Hazardous material
Refineries/petrochemical
Personal monitoring
Utilities
Oil and gas
Water/wastewater plants
Fire services
Pharmaceuticals
Construction

Overview
Specifications
Downloads
Accessories
Detected Gas
Video

Overview:

The device has a lightweight design, weighing about 300g, with an easy-to-grip handle. It comes with a 3-year sensor warranty, has a continuous use time of approximately 30 hours, and has cleared a 3m drop test. The device has an explosion-proof construction and is equivalent to protection class IP67.

Common Specifications
Model	GX-Force
Sampling Method	Sample draw
Suction flow rate	Minimum 0.35 L/min (open flow rate)
Gas alarm pattern	Lamp flashing, continuous buzzer sounding, gas concentration display, vibration
Gas alarm reset operation	Self-latching
Fault alarm/self-diagnosis	System, clock, or sensor abnormality; battery voltage drop; calibration feature; pump abnormality; low flow rate
Fault alarm pattern	Lamp flashing, intermittent buzzer sounding, detail display
Fault alarm reset operation	Self-latching
Display	LCD digital (7-segment + 14-segment + icons) with backlight
Individual operations	Operational status, clock, battery level, peak reading, pump status, calibration notification
Sound pressure	Approx. 90 dB (30cm)
Data logger function	Maximum storage capacity: 3,600 items Interval: 5 minutes (adjustable)
Communication specifications	USB2.0 (for data logger) * Connector: Type-C
Power source	Rechargeable lithium-ion battery
Continuous operating time*1	Approx. 30 hours (25°C)

Operating ambient

temperature/humidity range^{*2, 3}

-40^°C – +60^°C (no suden changes), 0-95 %RH (no condensation)

Explosion-proof construction Intrinsically safe explosion-proof construction, flame-proof enclosure
IECEx (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga)
ATEX (II1G Ex da ia IIC T4 Ga/II1G Ex ia IIC T4 Ga)
Japan EX (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga) (pending)

Certifications CE/UKCA marking, JIS T 8201, JIS T 8205, JIS T 8206

Protection Level IP67 equivalent

External dimensions/weight Approx. 64 mm (W) x 173 mm (H) x 47 mm (D) (excluding protrusions) / Approx. 280 g

* 1 Varies depending on the sensor type installed. Please contact for more information

* 2 In temporary ambient conditions for approximately 15 minutes. This operating temperature and humidity ranges for continuous ambient conditions are as follows: Temperature -20°C – +50°C (no sudden changes) / Humidity 10-90 %RH (no condensation)

* 3 The range of operating temperatures in which explosion-proof performance is maintained is as follows:Temperature: -20°C – +60°C (no sudden changes)

Downloads:
Specifications

GX-Force Datasheet

Gas sampling probe

Gas sampling tube

Float-type gas collector (tube 8m)

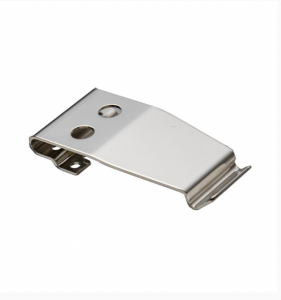

Accessories:4777 9296 50Protect film
