Features
- Dual Audible alarm ports
- 3 visual alarm LED’s
- Bluetooth
- Vibration alarm
- IP68 Waterproof / dust-proof design
-
Non-Compliance indicator
-
3 Year warranty
One to Six Personal Gas Monitor – GX-6000
Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilising all 6 channels.
IN STOCK
Description
Overview of the personal multi gas detector:
Simply put, the GX-6000 is a game changer, because this powerful hand-held personal multi gas detector instrument is capable of simultaneously monitoring up to 6 gases.
Including the standard 4 confined space gases which incorporates combustibles, O2, CO, & H2S, the GX-6000 has 2 additional smart channels that accept PID, IR or super toxic sensors.
PID Sensor
Equipped with a strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and large auto rotating LCD display, the GX-6000 can operate as a single gas PID unit or a multifunctional tool utilising all 6 channels.
This one to six gas monitor with a PID sensor will come equipped with a library of over 600 VOC gases to choose from as standard.
Choosing from the library is easy with a personalised favourites list of 30 commonly used VOC’s as well as a list of 8 of the most recently used VOC’s.
Rugged Design
The personal multi gas detector GX-6000 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water resistant enclosure with an IP-67 rating.
With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives, and because of the vibration and loud audible alarms, the one to six personal monitor will easily alert users when needed.
Detectable Gases
Gases & Detectable Ranges
Gas
Measuring Range
Minimum Display
Alarm Set Points
Accuracy (which ever is greater)CatalyticHydrocarbons (CH4, std)
0 – 100% LEL
1% LEL
A1: 5%LEL± 5% of reading or ± 2% LELA2: 10%LELGalvanic
Oxygen (O2)
0 – 40% Vol.
0.1% Vol.
A1: 19.5 Vol.
± 0.5% O2
A2: 23.5 Vol.Electro Chemical
Carbon Monoxide (CO)
0 – 500 ppm
1 ppm
A1: 30 ppm
± 5% of reading or
± 5 ppm
A2: 60 ppmTWA: 30 ppmSTEL: 60 ppm
Hydrogen Sulfide (H2S)
0 – 100 ppm
0.5 ppm
A1: 10 ppm
± 5% of reading or
± 2 ppm
A2: 15 ppmTWA: 10 ppmSTEL: 15 ppmToxics (EC Sensors)Ammonia (NH3)0 – 400 ppm0.5ppmA1: 25 ppm
± 10% of reading or
± 5% of full scale
A2: 35 ppmHydrogen Cyanide (HCN)0 – 15ppm0.1 ppmA1: 5 ppmA2: 10 ppmNitrogen Dioxide (NO2)0 – 20ppm
0.05 ppm
A1: 3 ppmA2: 5 ppmSulfur Dioxide (SO2)0 – 99.90 ppmA1: 2 ppmA2: 5 ppmPhosphine
(PH3)
0 – 20ppm*0.2ppmA1: 0.3 ppmA2: 1 ppmIR Sensors
Carbon Dioxide (CO2)
0 – 10,000 ppm
20 ppm
A1: 5,000 ppm
± 5% of reading or
± 2% of full scale
TWA: 5,000 ppm
0 – 10% Vol.
0.02%
A1: 0.50% VolA2: 3.00% VolSTEL: 3.00% VolTWA: 0.50% VolMethane (CH4)0 – 100% LEL
0 – 100% Vol.
Vol. 1% LEL/
0.5% Vol
A1: 5% LEL
*
Hydrocarbons
(HC)
0 – 100% LEL
0 – 30% Vol.
A2: 10% LEL
*
PID Sensors
600
VOC
10.6 Lamp
0 – 50,000 ppb
1 ppb:
(< 5000 ppb)
10 ppb:
(> 5,000 ppb)
A1: 5,000 ppb
± 10% of reading,
± 1 digit
A2: 10,000 ppb
0 – 6,000 ppm
0.1 ppm: (< 600 ppm)
1 ppm:
(> 600 ppm)
A1: 50 ppmA2: 100 ppmSTEL: 100 ppmTWA: 50 ppm
Benzene Specific
0.1 – 50 ppm
0.01 ppm
( 0 ~ 10 ppm)
0.1 ppm (10 ~ 50 ppm)
No alarms300 VOC’s
10.0 Lamp
0 – 100 ppm
0.01 ppm
( 0 ~ 10 ppm)
0.1 ppm (10 ~ 100 ppm)
A1: 5 ppm
A2: 10 ppm
High Voltage
11.7 Lamp
0 – 1000 ppm
0.1 ppm
A1: 400 ppm
A2: 1,000 ppm
Video
GX-6000
GX-3R Startup
Accessories
-
- GX-3R Belt Clip
-
- Clip-on sample drawing pump for the GX-3R and GX-3R Pro
-
- Heatproof Pouch for the GX-3R
-
- Bump/Calibration Station – SDM-3R for GX-3R and GX-3R Pro
-

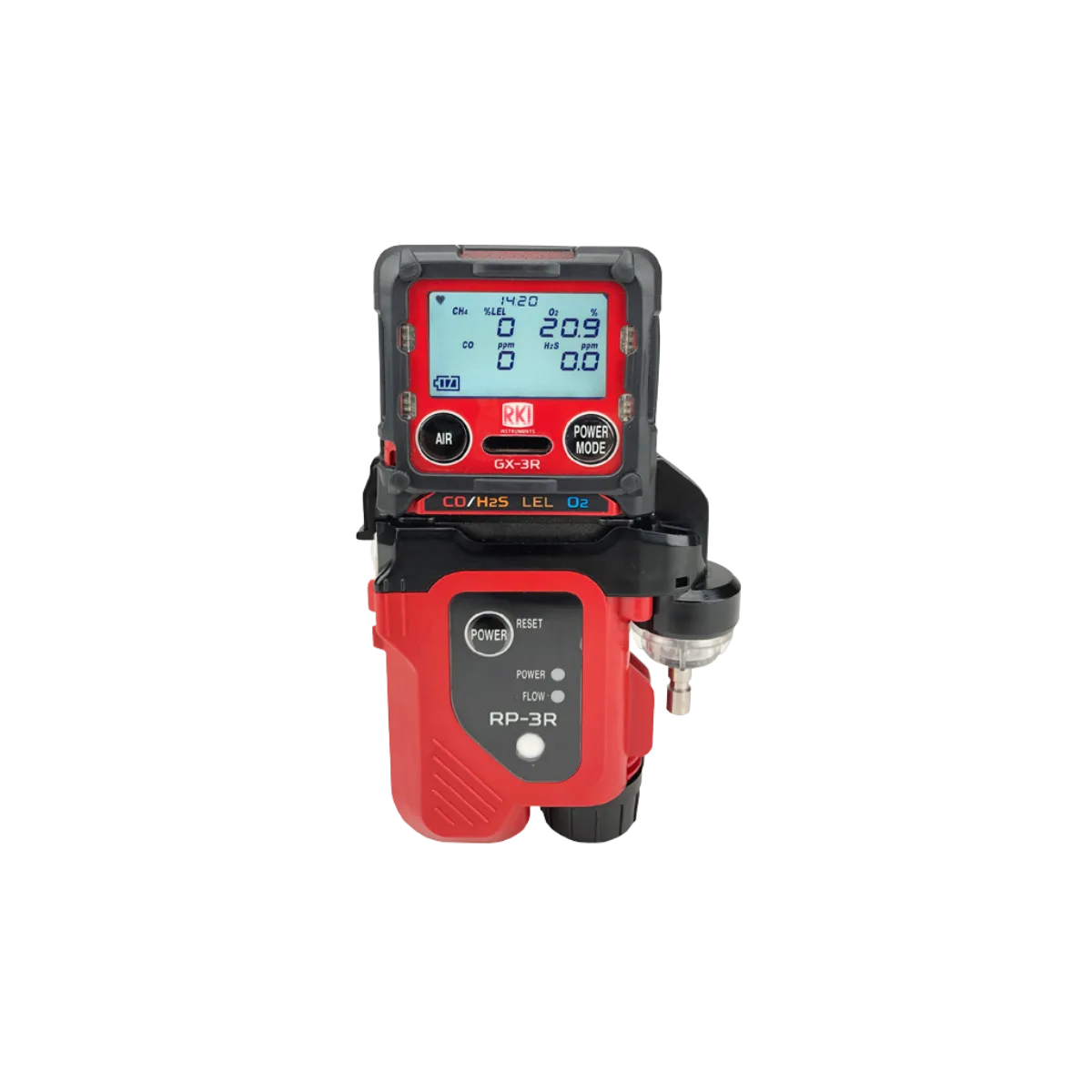

- RP-3R pump for the GX-3R
-
- Multi Charging station for the GX-3R
-
- Personal Gas Detection – Multi Gas – Confined Space Monitors – GX-3R with Pump
-
- calibration gas with GX-3R
-

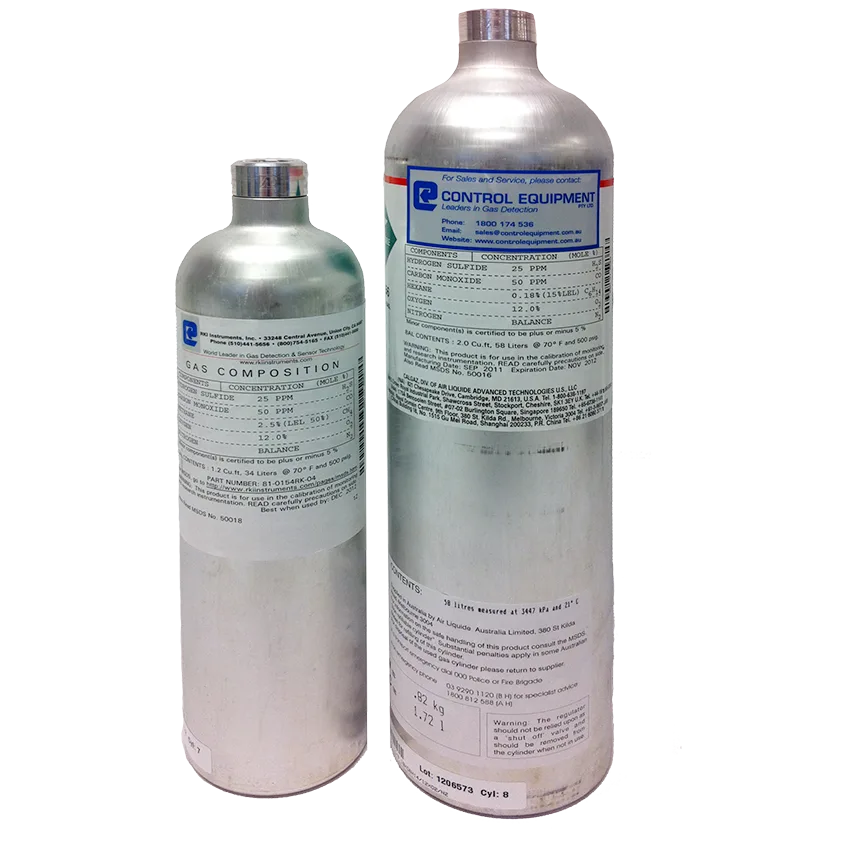

- Calibration Gas Bottles
-

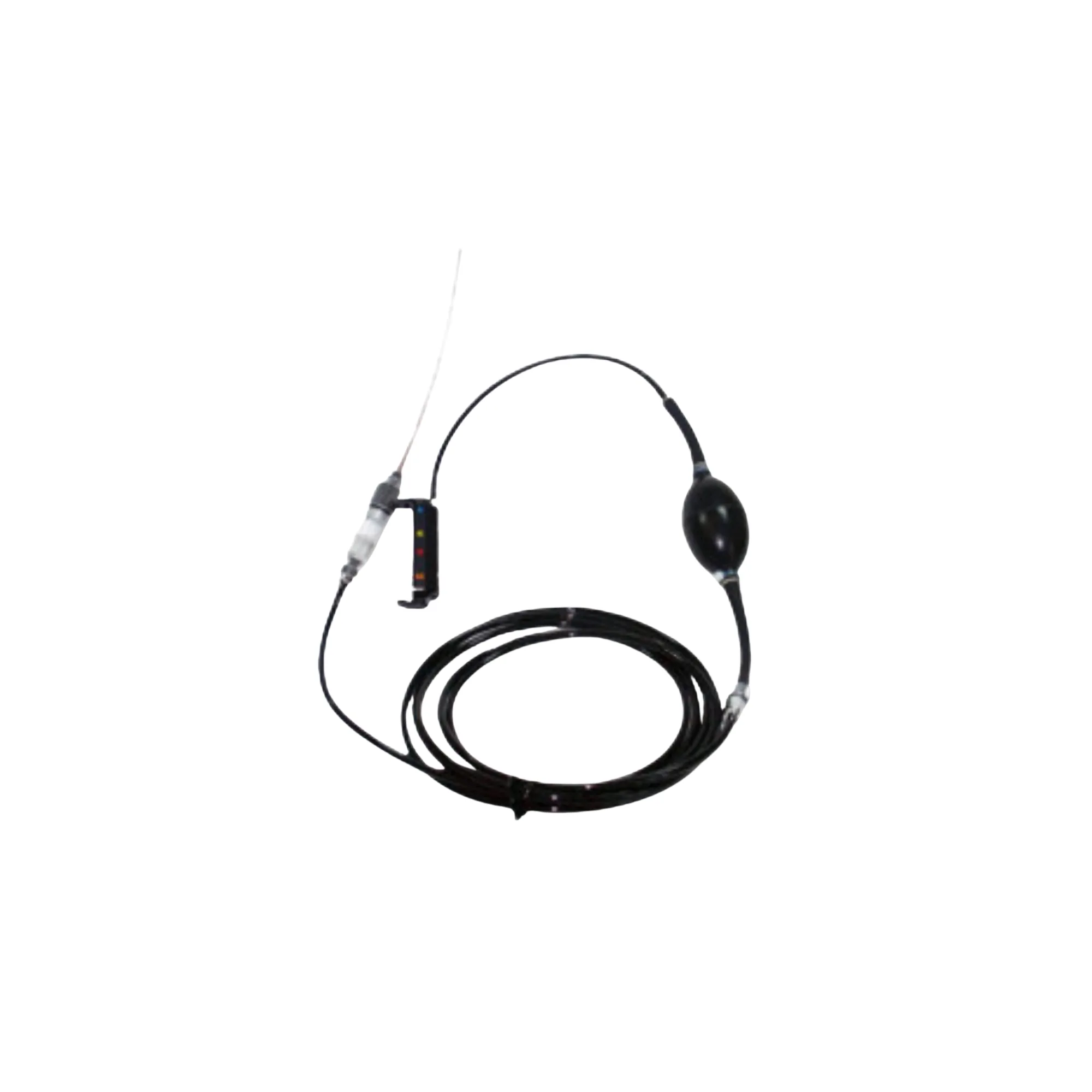

- Manual Sampling Pump
Applications
- Confined spaces
- Hazardous material
- Refineries / petrochemical
- Personal monitoring
- Utilities
- Oil and gas
- Water / wastewater plants
- Fire services
- Pharmaceuticals
- Construction
Specifications
| Common Specifications | |||
| Alarm Types | Gas Alarm | Man-down | Trouble |
| Low and high adjustable | 1st – self reset 2nd – latching |
Low flow Sensor connection Low battery Circuit error Calibration range | |
| Sample Method | Sample draw pump, flow rate 0.45 LPM 30 meter sample range | ||
| Display
|
Digital LCD, auto backlite, peak bar display, auto display rotation, and customise order of gases | ||
| Audible Alarm | 95 dB at 30cm | ||
| Continuous Operation | 24 hours on Lithium-ion battery pack Complete recharge in 3 hours 8 hours Alkaline battery pack (3 AA size in each pack) |
||
| Operating Temp. & Humidity | -20°C to +50°C, 0- 95% RH non-condensing
|
||
| Dimensions | 70mm W x 201mm H x 54mm D 600g (with lithium battery pack) | ||
| Case Material | Dust and water resistant with IP-67 approval (exclude sample hose and probe) | ||
| Safety Design / Approvals
|
Explosion proof: IECEx , ATEX , TIIS , Explosion class : Ex ia IIB T4/T3 Ga -20°C ≤ Ta ≤ +50°C Ex ia IIC T4/T3 Ga -20°C ≤ Ta ≤ +50°C Others: CE Marking | ||
| Standard Features
|
2 Smart sensors slots auto recognize sensor changes
Library of over 600 VOC’s User defined VOC list. Up to 30 frequently used Recent VOC list for last 8 selected gases Pump and circuit status indicators User & station ID selection menu Data logging (interval, alarm trend, station and user ID) Snap logging – on demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight IrDA communication LEL sensor protection mode |
||
| Standard Accessories | • Taper nozzle Accessories
• Hand strap • LCD protect nozzle • Belt clip • Rubber boot • Li-Ion battery unit (BUL-6000) |
||
| Optional Accessories | • Alkaline battery pack & charger • Filter set • IrDA cable |
||
| Warranty | Two years material (including sensors) and workmanship. One year for PID sensor | ||
