Multi Gas Calibration Station SDM-Force

The SDM-Force Multi Gas Calibration Station is a versatile calibration station designed for GX-Force gas monitors. It can operate as a standalone unit, automatically handling charging, calibration, and bump testing while storing all records for easy transfer via USB.

AVAILIBILE

Features

Charging (Lithium-Ion Battery)
Calibration
Bump Test

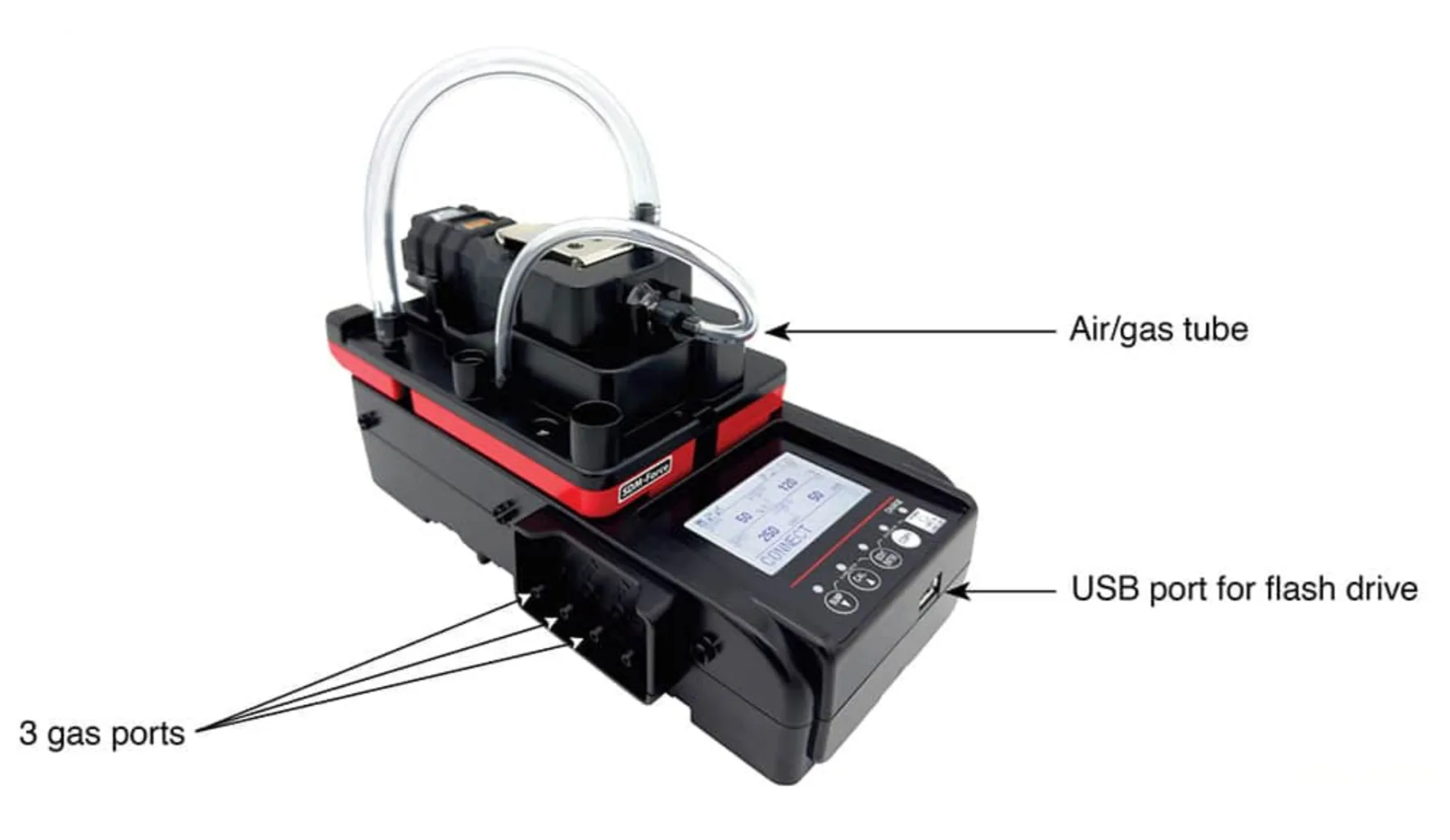

3 Calibration gas ports
Save Bump Test and Calibration records
Bump Test and Calibration records copy to USB Jump Drive
Multiple connected to a PC (10 max)
Configure GX-Force

Description

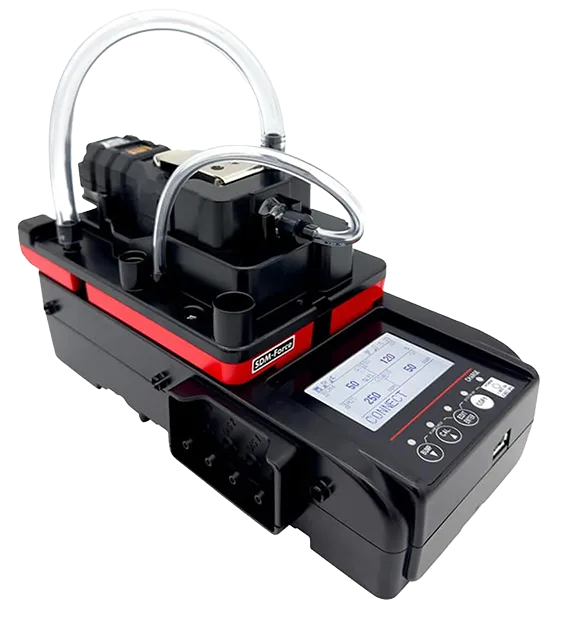

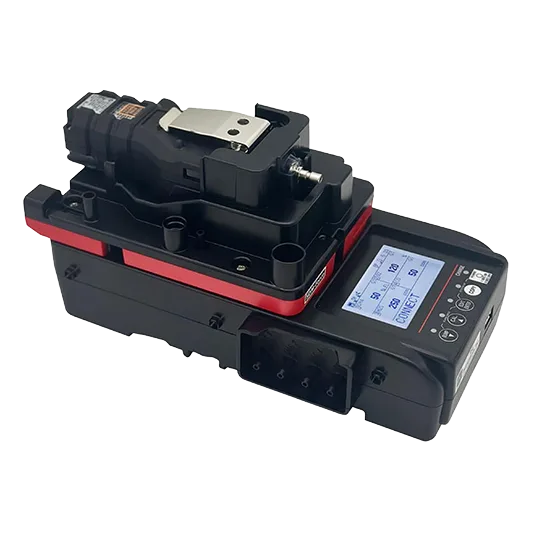

Overview of Multi Gas Calibration Station SDM-Force

Stand Alone Station

The SDM-Force is a versatile maintenance tool that automates the service of a GX-Force portable gas monitor. This docking station can be used as a stand alone device for charging, calibrating and bump testing, with all records stored automatically for future upload to a PC via USB flash drive (PC software and flash drive included).

PC-Controlled System

The SDM-Force can also be connected to a PC for automated calibration, bump testing, and archiving of datalog data from GX-Force instruments. Up to ten SDM-Force docking stations can be connected simultaneously using USB cables and the SDM-Force includes connections for one to three calibration gas cylinders.

SDM-Force Specifications and Gases

Model		SOM-Force (C1)	SOM-Force (C2)	SOM-Force (C3)
Number of inlets	Air	1	1	1
	Gas	1(GAS1)	2(GAS1,GAS2)	3(GAS1,GAS2, GAS3)
Compatable gas detector		GX-Force
Display		LCD digital (full dot)
Status display		LED (Green, orange, red /Steady light, blinking)

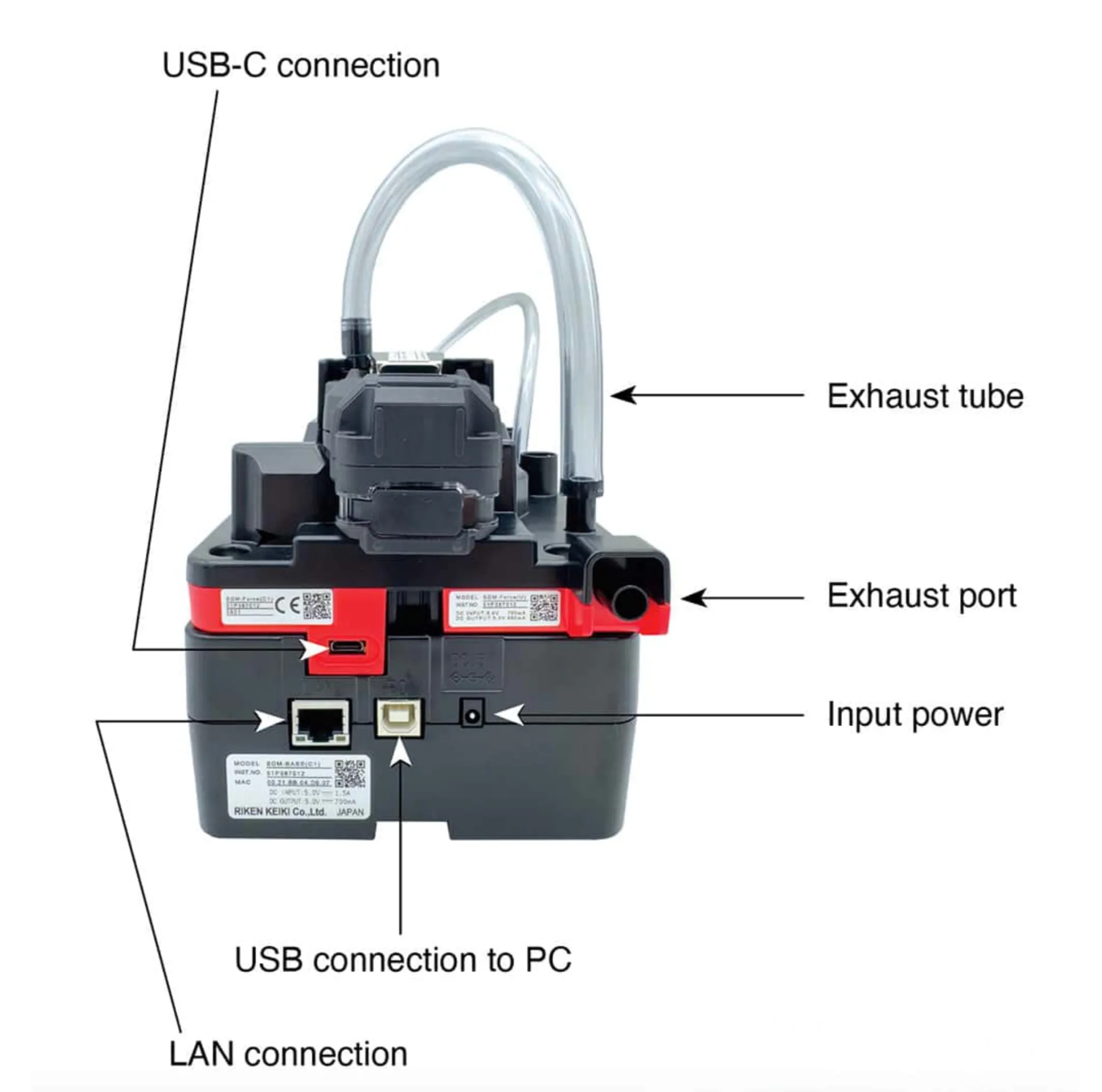

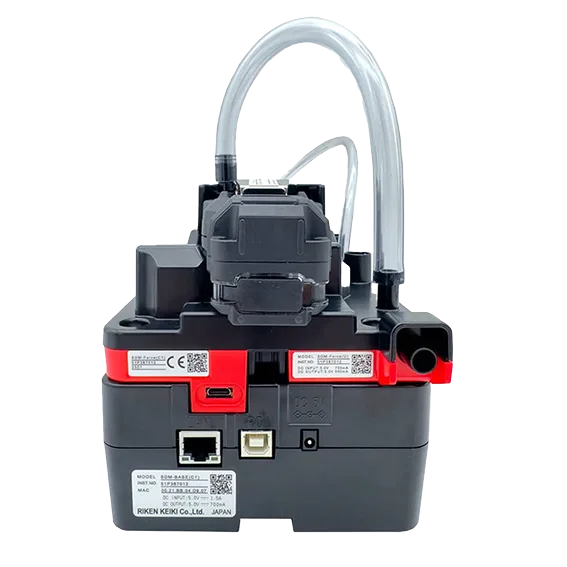

Interface		USB (for USB flash device, PC communication), LAN
PC communication		Wired connection (USB cable, LAN cable)
Number of units that can be connected		Up to 5 units
Maximum data storage capacity		Up to 500 items (bump test, calibration, alarm check)
Input power supply		100 to 240 V AC, 50/60Hz (AC adapter)
Operating temp range		0 to 40 °C (no sudden changes)
Operating humidity range		0 to 95 %RH (no condensation)
External dimensions		Approx.130(W) x 138(H) x 272(D)mm
Weight		Approx. 1 kg
