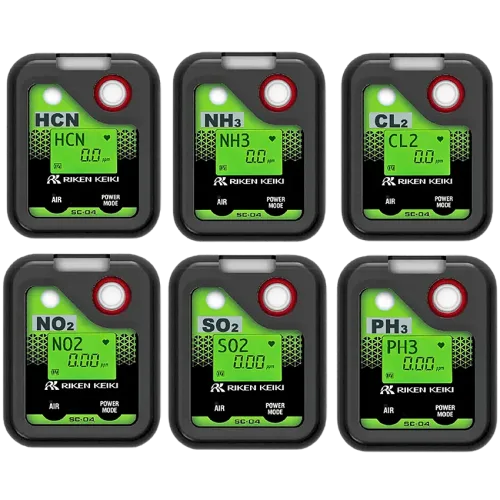

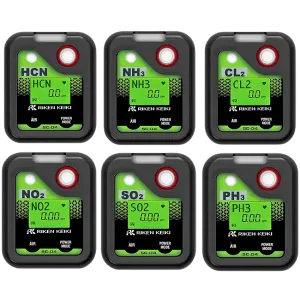

04 Series Single Gas Monitor toxic
Features:
• 3 Year Warranty
• Personal monitoring for O2, H2S, CO
(Toxic – HCN, NO2, SO2, PH3, NH3 & CL2)
• CO with H2 elimination
• O2 / CO combo sensor
• Operates 3,000 hours on alkaline
• Pocket size 53mm (W) x 66mm (H) x 22mm (D)
• Lightweight approx 93 grams
• Impact, dust, and water resistant (IP-67)
• Replaceable rubber boot
• Data log 5 to 300 hours with adjustable intervals
• Audible / visual / vibration alarms
• Automatic backlight
• Low battery alarm
• Intrinsically safe, IECEx/ATEX
Applications:
- Fumigation Safety
- Hazardous material
- Mining
- Refineries/petrochemical
- Water/wastewater treatment
- Pharmaceuticals
- Utilities
- Chemical plants
- Fire services
04 Series Single Gas Monitor Overview:
Single Gas Monitor (Toxic)
The 04 Series toxic single gas monitor is designed to operate for many years. The HCN, NO2, SO2, PH3 and NH3 versions can be operated continuously for at least 3,000 hours on (2) AAA-size alkaline batteries. The 04 models have 2 user-adjustable preset alarms. Each version is also equipped with standard visual, audible, and vibration alarms.
Single Gas Monitor (Standard)
This single gas monitor is designed to operate for many years. These models have 2 user-adjustable preset alarms. Each version is also equipped with visual, audible, and vibration alarms as standard.
Sensors have a life expectancy of over 3 years and are backed by a 3 Year Warranty.
Each 04 Series monitor is impact-, dust-, and water-resistant, with an IP-67 rating. 04 Series instruments are safe for use in hazardous locations, classified as intrinsically safe IECEx/ATEX.
04 Series Single Gas Monitor Specifications:
| Model Name | SC-04 HCN | SC-04 NO2 | SC-04 PH3 | SC-04 SO2 | CO-04 (-H2) | CX-04 | |
| Gas Detected | Hydrogen Cyanide | Nitrogen Dioxide | Phosphine | Sulfur Dioxide | Carbon Monoxide | CO | O2 |
| Detection Principle | Electrochemical | ||||||
| Part# | 73-0071 | 73-0073 | 73-0079 | 73-0083 | 73-0067 | 73-0069 | |
| Detection Range (Increments) | 0 ~ 30.0 ppm
(0.1 ppm) |
0 ~ 20.00 ppm
(0.05 ppm) |
0 ~ 20.00 ppm
(0.01 ppm) |
0 ~ 100.0 ppm
(0.05 ppm) |
0 ~ 2000 ppm
(1 ppm) |
0 ~ 40%
(0.1%) |
|
| Alarm Set Points | 1st: 5.0 ppm
2nd: 10.0 ppm 3rd: 30.0 ppm TWA: 4.7 ppm STEL: 10 ppm |
1st: 2.00 ppm
2nd: b4.00 ppm 3rd: 20.00 ppm TWA: 0.50 ppm STEL: 1.00 ppm |
1st: 0.30 ppm
2nd: 0.60 ppm 3rd: 0.60 ppm TWA: 0.30 ppm STEL: 1.00 ppm |
1st: 2.00 ppm
2nd: 5.00 ppm 3rd: 100.00 ppm TWA: 2.00 ppm STEL 5.00 ppm |
1st 25 ppm
2nd 50 ppm 3rd 1200 ppm TWA 25 ppm STEL 200 ppm |
L: 19.5 %
LL: 18.0% H: 25.0 % |
|
| Alarm Types | Gas alarms: 1st, 2nd and 3rd (user adjustable), OVER alarm, STEL and TWA
Trouble alarms: Sensor connection, low battery, circuit failure, and calibration range error |
||||||
| Alarm Methods | Gas alarm: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration
Trouble alarm: Flashing LED’s, intermittent buzzer, and display of error message STEL & TWA alarms: Flashing LED’s, intermittent buzzer, flashing gas value, and vibration |
||||||
| Gas Sampling | Diffusion | ||||||
| Response Time | T90 in 30 seconds | ||||||
| Accuracy (whichever is greater) | ± 10% of reading
or ± 5 % of full scale |
< 300 ppm ± 5 % of reading
> 300 ppm ± 20 % of reading |
< 25% ± 0.5 %
> 25% ± 3.0 % |
||||
| Data Logging | 10 second intervals = 10 hours, 5 minute intervals = 300 hours, 10 minute intervals = 600 hours | ||||||
| Instrument records alarms, alarm trends, gas readings, calibration & bump test history, instrument information and settings. | |||||||
| Battery Options | Alkaline dry cell (2-AAA size) | ||||||
| Continuous Operation | 3,000 hours (at 25°C, no backlight) | 6,200 hours | 4,600 hours | ||||
| Safety Rating | ATEX/IECEx approved. QPS classified, “C / US”, as intrinsically safe, Class I, Division 1, Groups A, B, C, D | ||||||
| Enclosure | Dust and water resistant with IP-67 rating | ||||||
| Dimensions & Weight | 2.1” W x 2.64” H x 0.94” D, (54 x 67 x 24 mm); 2.8 ounces (80 g) | ||||||
| Display | Digital LCD, gas name & concentration, auto backlighting during alarm, operation icon, battery icon | ||||||
| Operating Temp. & Humidity | -4°F ~ 122°F (-20°C ~ 50°C);
Humidity below 90% RH (non-condensing) |
||||||
| Standard Accessories | • Rubber protective boot • Alligator clip • Data logging software
• Alkaline batteries |
||||||
| Optional Accessories | • Calibration cap • Wrist strap
• Calibration kit • Belt clip • Data logging download cable |
||||||
| Special Functions | • Manual backlight for LCD (automatically lit during alarm)
• Peak hold, STEL & TWA |
||||||
| Warranty | 3 Year warranty | ||||||
04 Series Single Gas Monitor Downloads:
Specifications:
04 Series Single Gas Monitor Accessories:

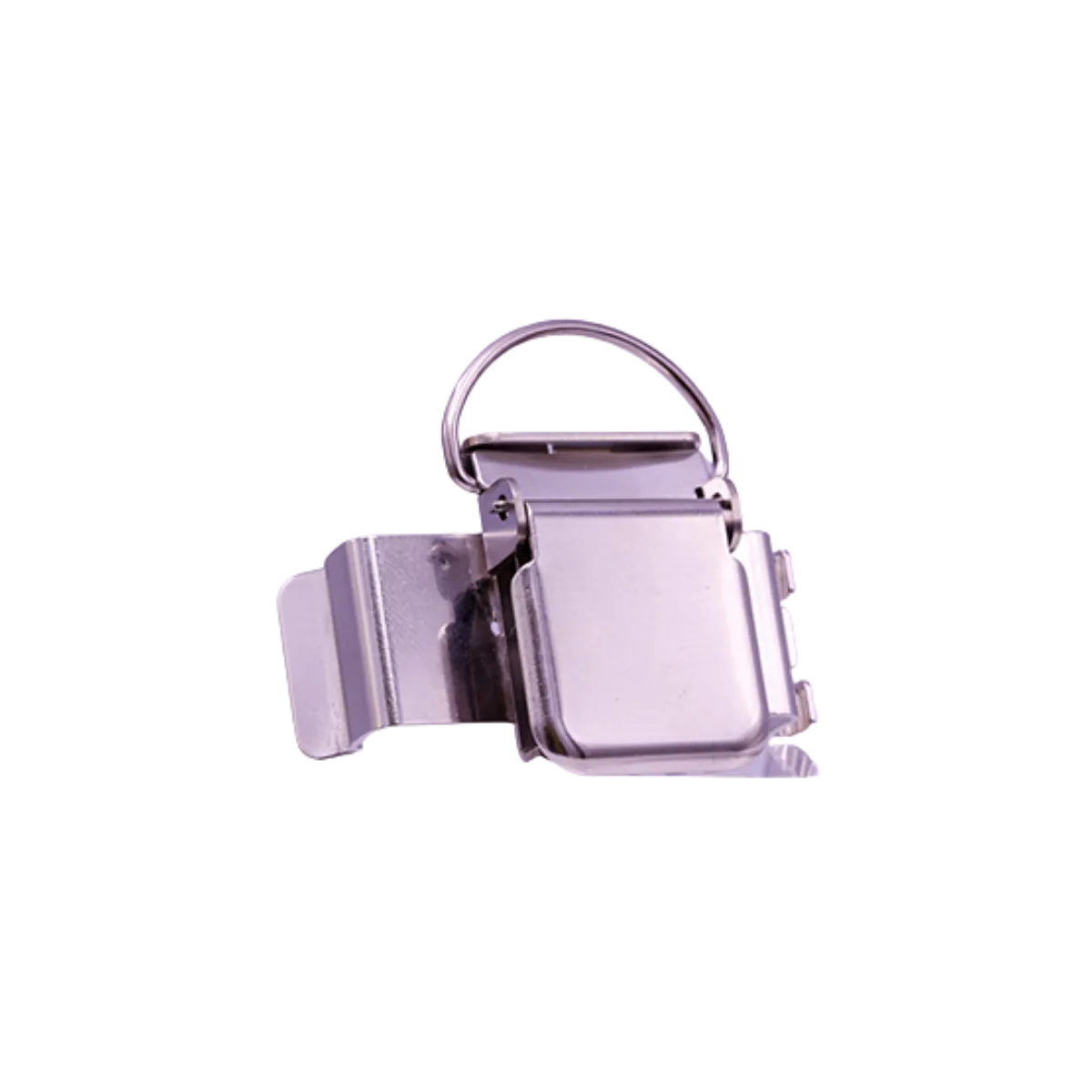

Alligator Clip

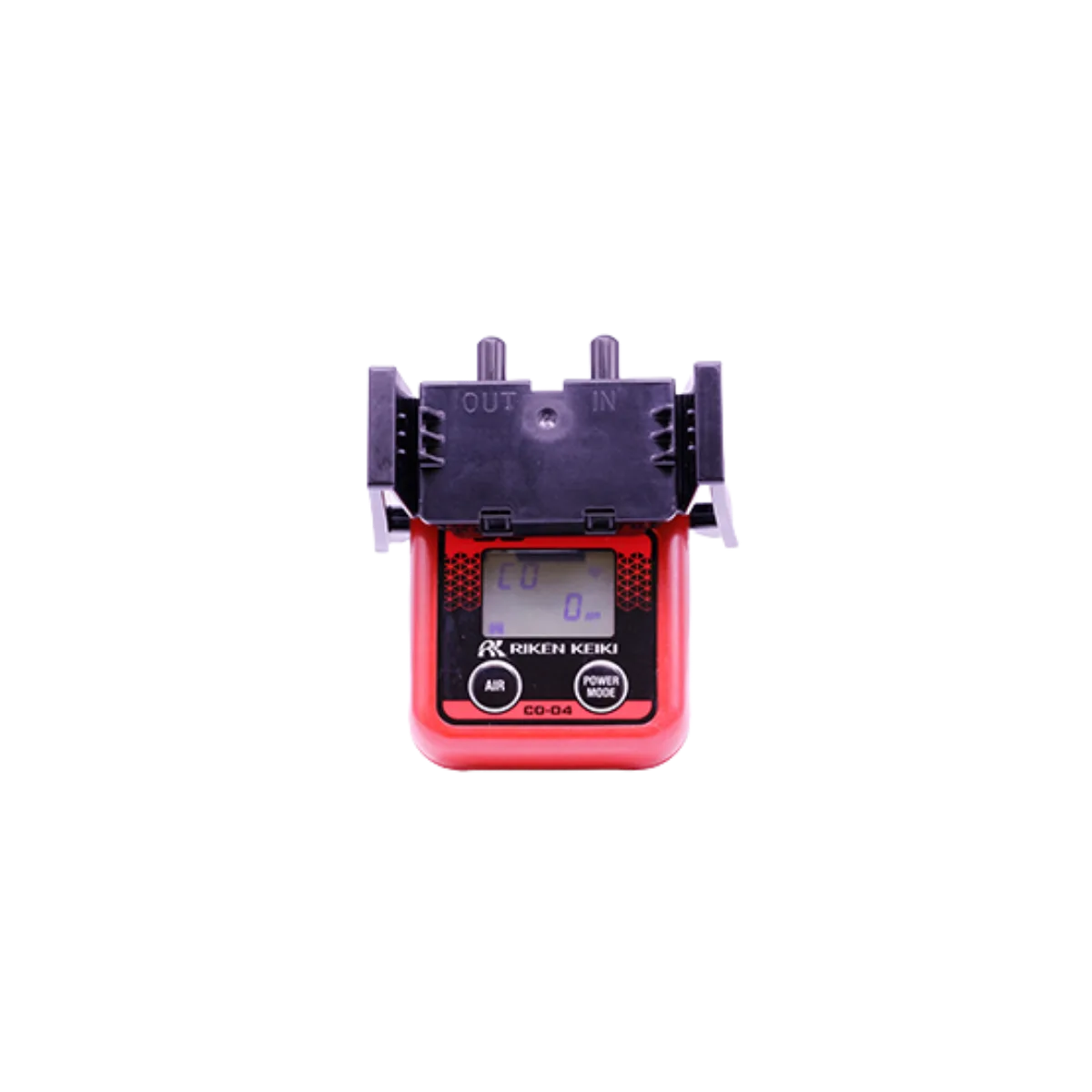

Calibration Cap

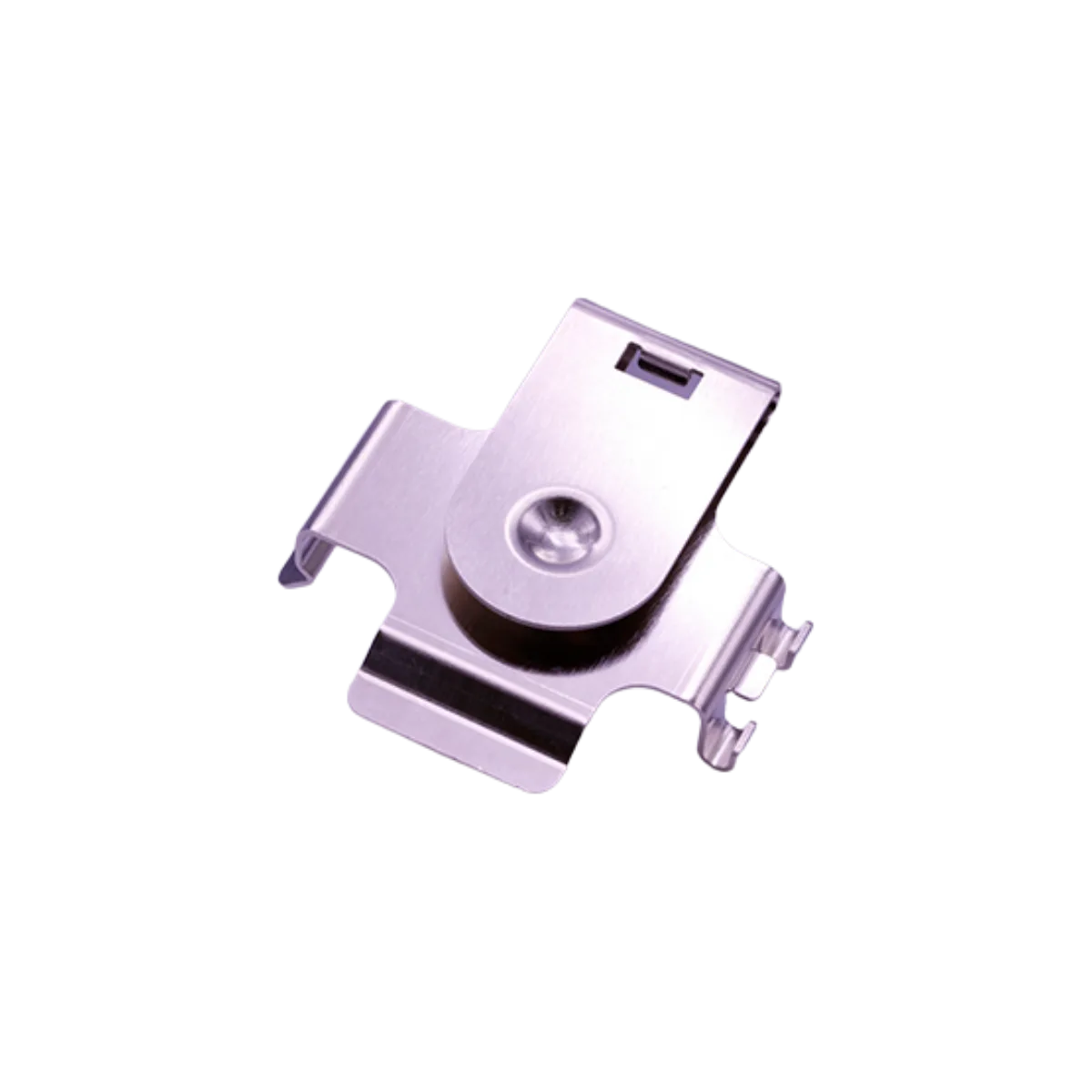

Belt Clip

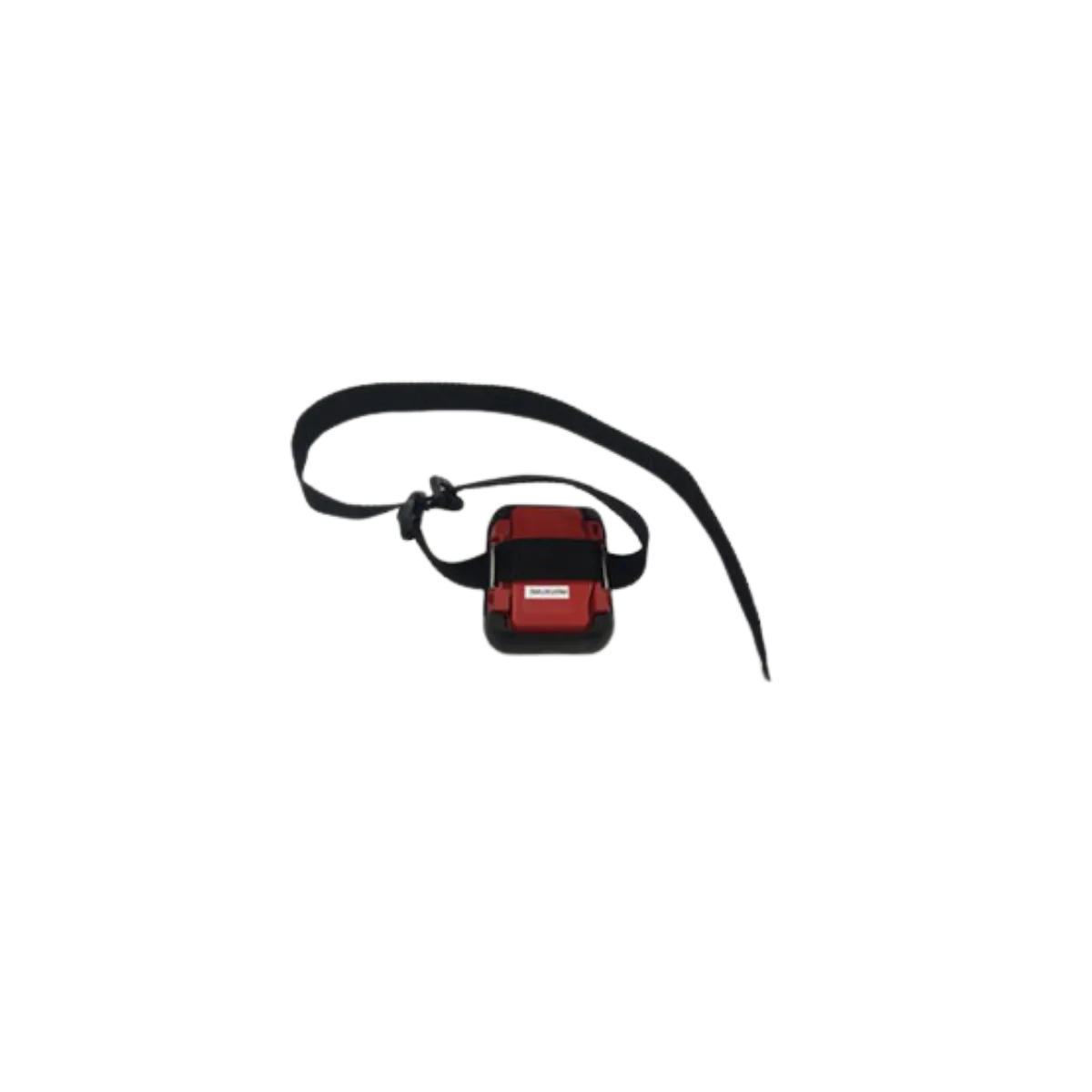

Arm Band

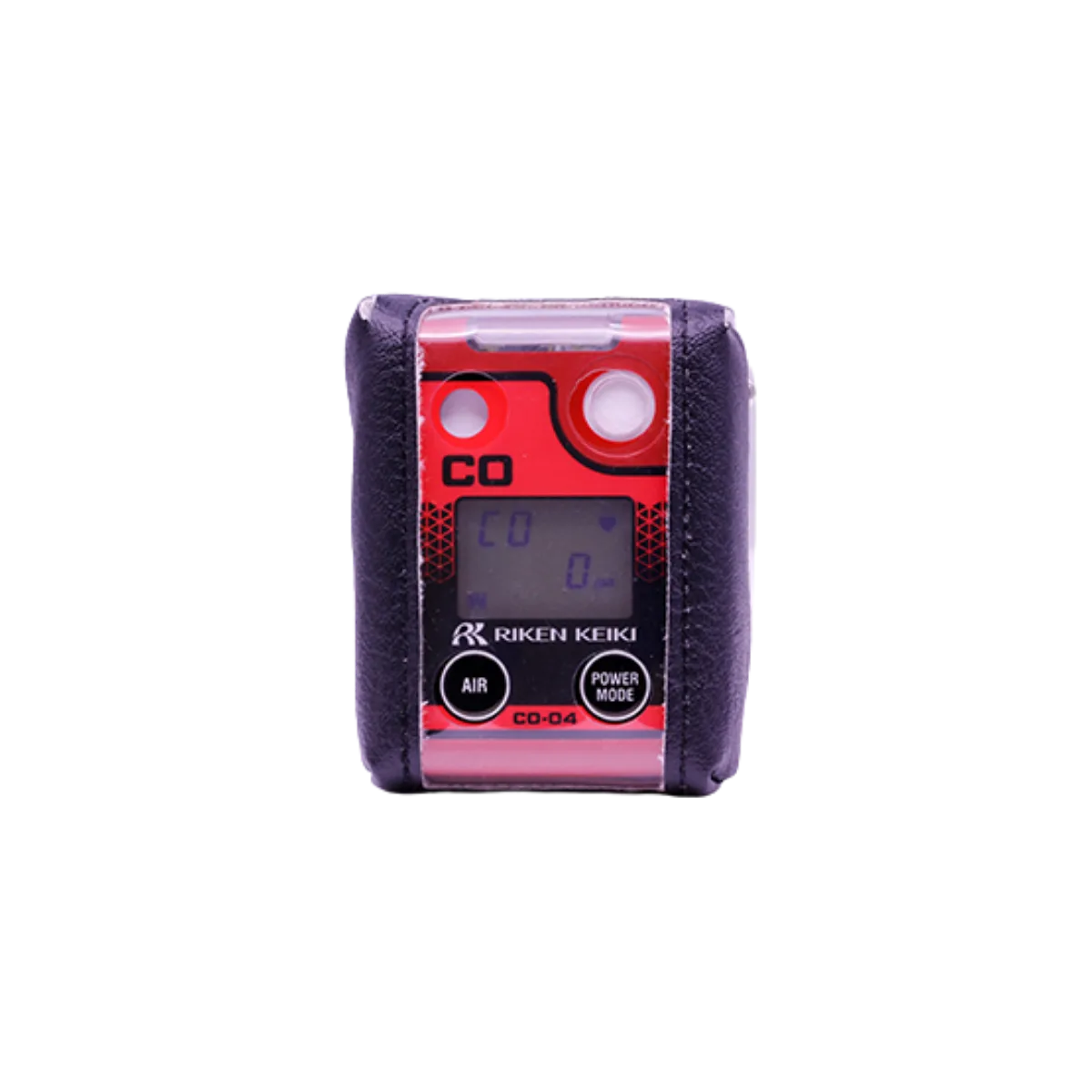

Heat-Resistant Case
Wrist Strap
