Features
- Measures and monitors four fumigation gases
- (PH3/ SO2F2/CH3Br/EDN)
- Complete job management system & reporting
- Measure up to 12 sample points consecutively
- Manage multiple jobs in run/suspend mode (up to 99) or a single job running continuously
- Email finalised job data report to nominated recipients
- Save all job data electronically
- Built-in sample pump
- Continuous operation 25+ hours on battery
- Bluetooth and WiFi enabled
- Lightweight and portable
- GPS location
Applications
-
Shipping Containers
-
Vessels
-
Grain
-
Timber

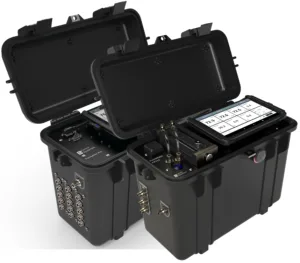

FumiMate Fumigation Gas Monitor Overview
The FumiMate is a flexible gas monitor equipped with a job management system specifically designed for collecting fumigation data.
It offers a range of fumigation gases, multiple sample lines, a sturdy design suitable for various environments, a long-lasting battery, and easy operation via its touchscreen interface.
This device can manage multiple tasks, pause and resume monitoring, and send detailed fumigation reports via email.
Features Include:
- Up to 12 Sample Lines: The FumiMate is a 4-12 Channel Fumigation Gas Monitor with a powerful, user-friendly integrated fumigation job management system that securely measures, collects, processes, and reports all required fumigation data. The operator can select any of four common fumigation gases for the specific job application. Up to 12 sample lines can be attached simultaneously. The measurement time for each sample point in the job sequence is selectable by the operator.
- Rugged design: FumiMate’s rugged design enables it to be used in most applications, including challenging field environments. It is operator-friendly and very portable.
- Long battery life: This instrument can operate for over 25 hours on a single battery charge. All variables can be selected via the touchscreen on the FumiMate. Up to 99 fumigation jobs can be set up prior to the commencement of fumigation.
- Multiple jobs: Once the fumigation process is initiated, the operator can pause a particular job, switch to another job, and initiate another fumigation. The instrument can be returned to each job multiple times to collect additional data.
- All-in-one: The instrument can also run continuously on a single job to record the entire fumigation process. At the end of each fumigation, the operator ends the monitoring, and a complete fumigation report can be emailed to selected addresses.
FumiMate Gas Monitor Specifications
| Gases Measured | • Methyl Bromide (CH3Br) in air 0-200g/m3 (0-200oz/1,000 cu. ft)
• Phosphine (PH3) in air 0-50g/m3 (0-50oz/1,000 cu. ft.) • Sulfuryl Fluoride (SO2F2) in air 0-200g/m3 (0-200oz/1,000 cu. ft.) • Cyanogen (C2N2) in air 0-50g/m3 • Cyanogen (C2N2) in air 0-300g/m3 |
| Detection Principle | Optical Interferometric |
| Sampling Method | Sample-draw by internal pump |
| Sample Inputs | Up to 12 (operator selectable) |
| Job Management | The integrated FumiNav management system collects data without operator input |
| Job Monitoring | Continuous or multi-job handling (up to 99) |
| Job Reporting | Data is electronically reported via transmission on job completion |
| Display | 200mm (8”) touchscreen |
| Filters | Refillable Soda Lime CO2 filter supplied as standard |
| Power Supply | • Rechargeable battery for 25+ hours operation
• Continuous operation when connected to 85 – 264 VAC 50/60 HZ |
| Environmental | 0°C ~ +50°C [ 32°F ~ 122°F ]; 0-95% RH (non-condensing) |
| Enclosure | Polypropylene |
| Dimensions | W 417mm / 16.4″ D 221mm / 8.7″ H 334mm / 13.2″ |
| Weight | 8kg / 18lb |
| Warranty | 12 months |
Videos:
- Overview
-
FumiMate Fumigation Gas Monitor Overview
The FumiMate is a flexible gas monitor equipped with a job management system specifically designed for collecting fumigation data.
It offers a range of fumigation gases, multiple sample lines, a sturdy design suitable for various environments, a long-lasting battery, and easy operation via its touchscreen interface.
This device can manage multiple tasks, pause and resume monitoring, and send detailed fumigation reports via email.
Features Include:
- Up to 12 Sample Lines: The FumiMate is a 4-12 Channel Fumigation Gas Monitor with a powerful, user-friendly integrated fumigation job management system that securely measures, collects, processes, and reports all required fumigation data. The operator can select any of four common fumigation gases for the specific job application. Up to 12 sample lines can be attached simultaneously. The measurement time for each sample point in the job sequence is selectable by the operator.
- Rugged design: FumiMate’s rugged design enables it to be used in most applications, including challenging field environments. It is operator-friendly and very portable.
- Long battery life: This instrument can operate for over 25 hours on a single battery charge. All variables can be selected via the touchscreen on the FumiMate. Up to 99 fumigation jobs can be set up prior to the commencement of fumigation.
- Multiple jobs: Once the fumigation process is initiated, the operator can pause a particular job, switch to another job, and initiate another fumigation. The instrument can be returned to each job multiple times to collect additional data.
- All-in-one: The instrument can also run continuously on a single job to record the entire fumigation process. At the end of each fumigation, the operator ends the monitoring, and a complete fumigation report can be emailed to selected addresses.
- Specifications
-
FumiMate Gas Monitor Specifications
Gases Measured • Methyl Bromide (CH3Br) in air 0-200g/m3 (0-200oz/1,000 cu. ft) • Phosphine (PH3) in air 0-50g/m3 (0-50oz/1,000 cu. ft.)
• Sulfuryl Fluoride (SO2F2) in air 0-200g/m3 (0-200oz/1,000 cu. ft.)
• Cyanogen (C2N2) in air 0-50g/m3
• Cyanogen (C2N2) in air 0-300g/m3
Detection Principle Optical Interferometric Sampling Method Sample-draw by internal pump Sample Inputs Up to 12 (operator selectable) Job Management The integrated FumiNav management system collects data without operator input Job Monitoring Continuous or multi-job handling (up to 99) Job Reporting Data is electronically reported via transmission on job completion Display 200mm (8”) touchscreen Filters Refillable Soda Lime CO2 filter supplied as standard Power Supply • Rechargeable battery for 25+ hours operation • Continuous operation when connected to 85 – 264 VAC 50/60 HZ
Environmental 0°C ~ +50°C [ 32°F ~ 122°F ]; 0-95% RH (non-condensing) Enclosure Polypropylene Dimensions W 417mm / 16.4″ D 221mm / 8.7″ H 334mm / 13.2″ Weight 8kg / 18lb Warranty 12 months - Downloads
-
