Features
- Measures Phosphine (PH3) gas concentrations in fumigation processes up to 2,000ppm
- User-selectable sample reporting intervals
- Local setup via phone app
- Wireless transmission of gas measurement data via cell network
- Battery powered (rechargeable)
- Long sensor life
- Rugged enclosure for harsh environments
- Portable or fixed mounting
- Reduces the need for site visits
Applications
Gas Monitoring of:
- Grain Bunkers
- Silos
- Shipping Containers
- Vessel Cargo Holds
- Ideal for use on remote, unmanned sites

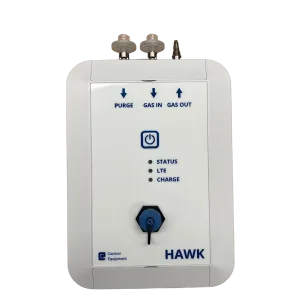

Hawk PH3 Fumigation Gas Monitor Overview
The Hawk PH3 Fumigation Gas Monitor is a lightweight, battery-powered instrument suitable for both portable and fixed-mounted monitoring of phosphine gas levels during the fumigation process. The rugged enclosure protects the instrument in harsh environments. Instrument setup and interrogation are achieved via a dedicated phone app.
Measurement data is transmitted via the cellular network at intervals that the user can pre-set for the specific job type and duration. Live data can be transmitted to a cloud-based dashboard. Data sent to a cloud-based dashboard can be viewed/reviewed at any time from any location, enabling both live monitoring and post-job analysis or auditing, reducing the need for daily site visits.
The Hawk is designed to report on all stages of the fumigation process, including at low fumigant levels. The sensor is only exposed to gas for the short period that gas is being sampled, resulting in a much longer sensor life than conventional diffusion sensing methods.
A grain spear and associated accessories are available for the instrument, which can be inserted into grain piles to monitor fumigation gas levels within the bunker.
Hawk PH3 Gas Monitoring Transmitter Specifications
| Sensor type | Electro Chemical |
| Target gas | Phosphine |
| Measuring range | 2,000ppm |
| Sampling Method | Sample draw via internal pump |
| Measuring Frequency | User selectable 1 per 10min to 1 per 8 hrs |
| Sampling Time | User selectable 30 sec to 120 sec + auto zeroing cycle |
| Communication | Data stream via LTE network |
| Local setup/reading | Bluetooth to phone app (Android and IOS supported) |
| Tubing Connections | 4mm OD tube quick-connect for fresh air and exhaust tubing |
| Battery | Rechargeable internal Li-ion battery |
| Battery life | Up to 30 days at 3 samples/day |
| Charging Connection | IP68-rated connector with a USB-A cable assembly |
| Enclosure | ASA Plastic, high UV rating, weatherproof |
| Dimensions | 210mmH x 150mmW x 50mmD |
| Weight | 800 grams |
| Environmental | -10 to +50 C, 95% RH non-condensing |
| Warranty | 12 Months |
Downloads for the Hawk PH3 Fumigation Gas Monitor
Accessories
Hawk with sample probe and accessories for Bunker use
- Overview
-
Hawk PH3 Fumigation Gas Monitor Overview
The Hawk PH3 Fumigation Gas Monitor is a lightweight, battery-powered instrument suitable for both portable and fixed-mounted monitoring of phosphine gas levels during the fumigation process. The rugged enclosure protects the instrument in harsh environments. Instrument setup and interrogation are achieved via a dedicated phone app.
Measurement data is transmitted via the cellular network at intervals that the user can pre-set for the specific job type and duration. Live data can be transmitted to a cloud-based dashboard. Data sent to a cloud-based dashboard can be viewed/reviewed at any time from any location, enabling both live monitoring and post-job analysis or auditing, reducing the need for daily site visits.
The Hawk is designed to report on all stages of the fumigation process, including at low fumigant levels. The sensor is only exposed to gas for the short period that gas is being sampled, resulting in a much longer sensor life than conventional diffusion sensing methods.
A grain spear and associated accessories are available for the instrument, which can be inserted into grain piles to monitor fumigation gas levels within the bunker.
- Specifications
-
Hawk PH3 Gas Monitoring Transmitter Specifications
Sensor type Electro Chemical Target gas Phosphine Measuring range 2,000ppm Sampling Method Sample draw via internal pump Measuring Frequency User selectable 1 per 10min to 1 per 8 hrs Sampling Time User selectable 30 sec to 120 sec + auto zeroing cycle Communication Data stream via LTE network Local setup/reading Bluetooth to phone app (Android and IOS supported) Tubing Connections 4mm OD tube quick-connect for fresh air and exhaust tubing Battery Rechargeable internal Li-ion battery Battery life Up to 30 days at 3 samples/day Charging Connection IP68-rated connector with a USB-A cable assembly Enclosure ASA Plastic, high UV rating, weatherproof Dimensions 210mmH x 150mmW x 50mmD Weight 800 grams Environmental -10 to +50 C, 95% RH non-condensing Warranty 12 Months - Downloads
-
Downloads for the Hawk PH3 Fumigation Gas Monitor
- Accessories
-
Accessories
Hawk with sample probe and accessories for Bunker use
