Features:
- Capable of measuring up to 8 kinds of gases
- Gas can be selected with key operation
- Direct digital readout
- Built‐in sampling pump
- High accurate measurement with CCD and fourier analysis technology
- Data logging stores up to 100 readings
- Few consumable parts saving on maintenance cost
Application/s:
- Measurement of fumigation gases
- Measurement of anaesthetic
Fumigation/Anaesthetic Gas Monitor Overview:

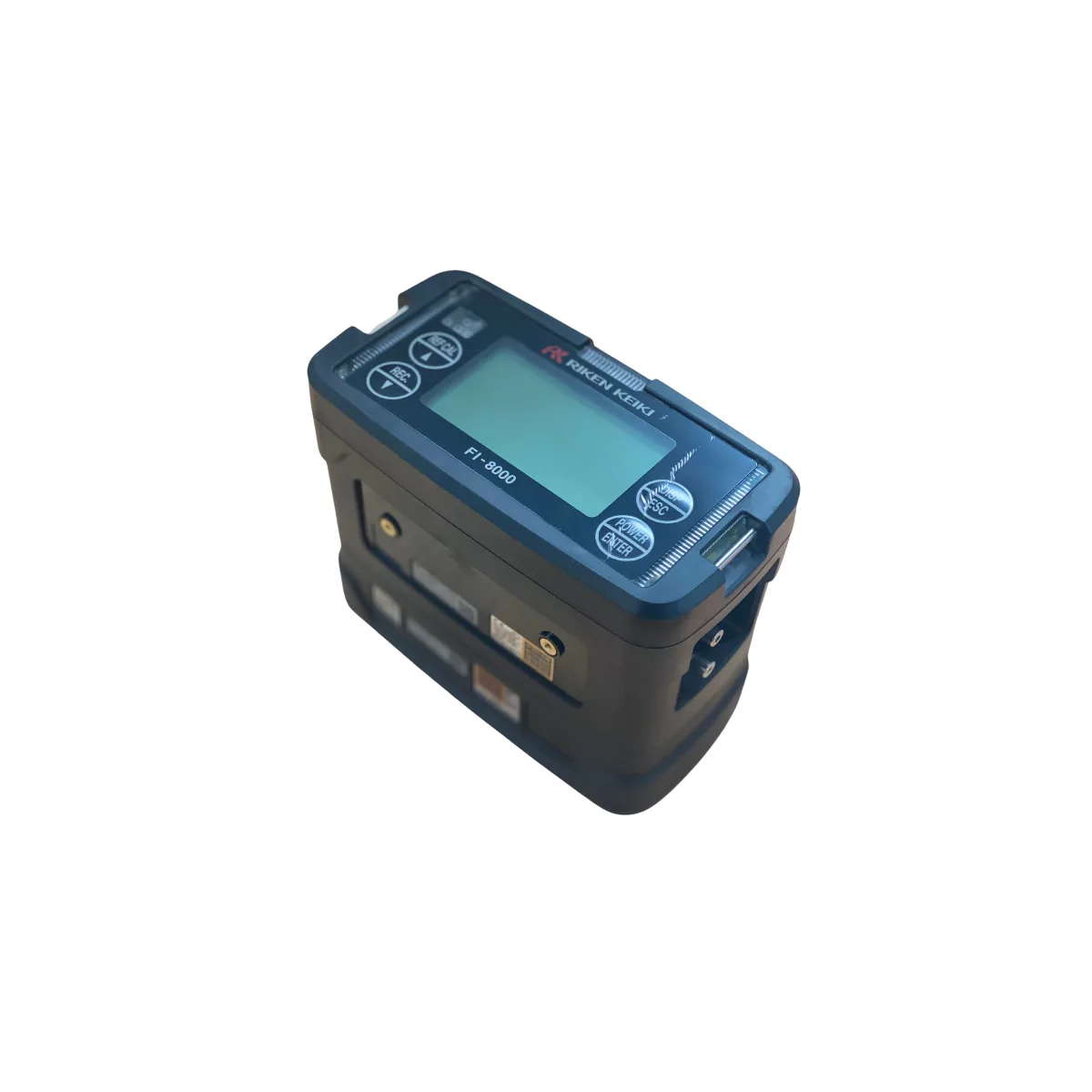

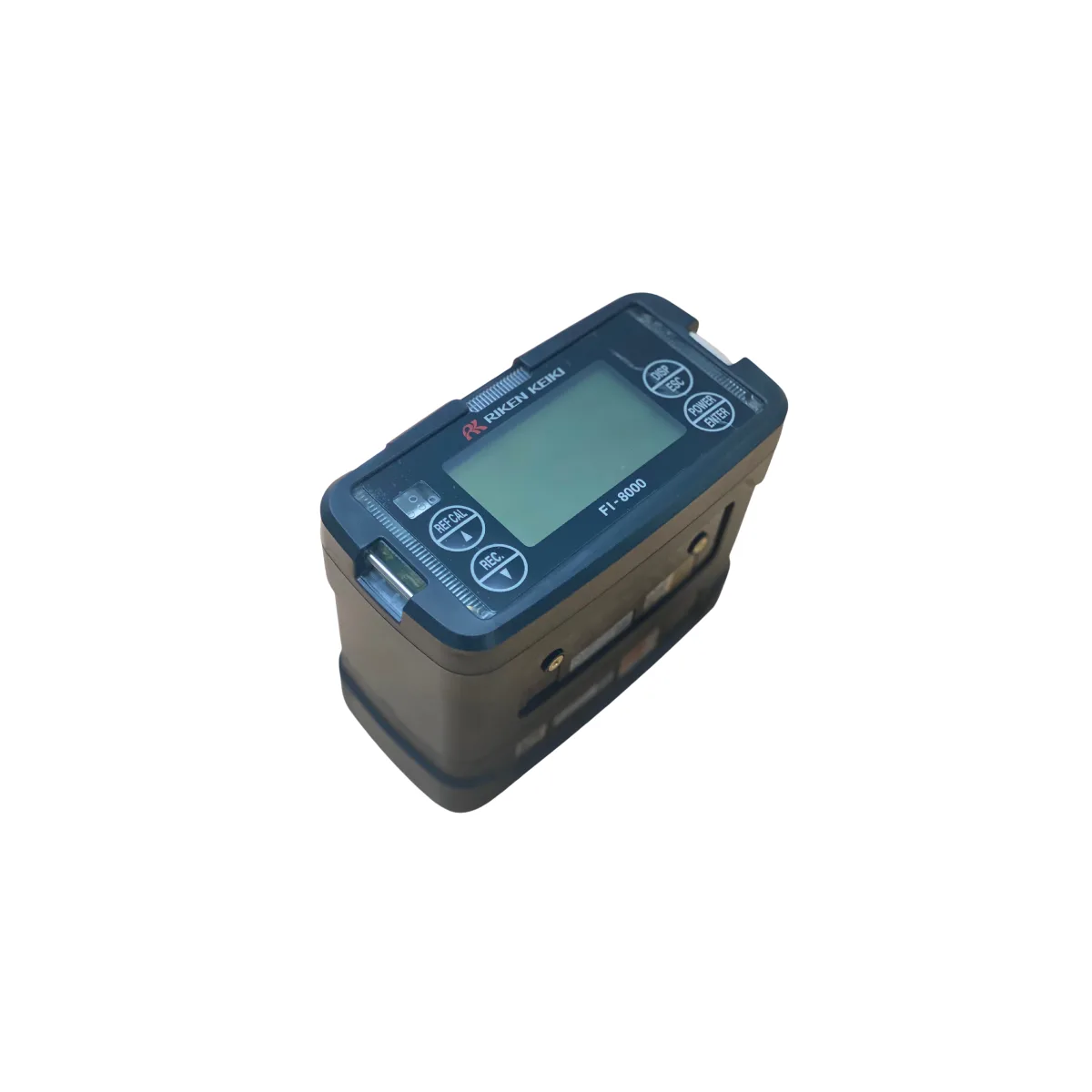

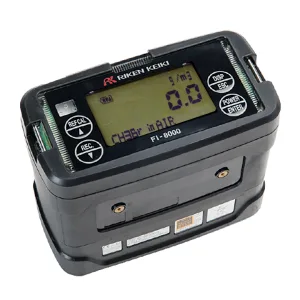

Following on from the popularity of the FI-21, the FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 has now been equipped with more capability of detecting new gases, as well as reducing in size.
Latest tech
The FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 is the latest model from Riken in a long line of optical interferometers dating back to the 1930’s when Riken’s founder first developed the technology for methane detection to help prevent explosion accidents on oil tankers and in coal mines.
Gas Measured
This version of the FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 has been setup to measure commonly used fumigants such as sulfuryl fluoride (SO2F2) / sulphuryl fluoride / vikane® / profume®, phosphine (PH3), methyl iodide (CH3I) / iodomethane / MEL, propylene oxide (CH3CHCH2O), hydrogen cyanide (HCN), and methyl bromide (CH3Br) / bromomethane. The principle operation is the comparison of the optical refractive index of the gas, and hence there are no moving parts or problems with sensor drift. This makes the calibration remain very stable.
Applications
Both FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 is also used in many other applications; such as anaesthesia, solvents, inert gases, toxic gases, and gas purity.
The Riken FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 measures vaporizer output concentration using a digital display and does not require correction factors. Measures concentration in percentage for desflurane (suprane), sevoflurane, isoflurane (forane) and halothane.
Specifications:
| Sampling method | Suction type |
| Principle of detection | Interferometer Method |
| Detection range | Depend on target gas. |
| Explosion protected construction | Intrinsic safety |
| Explosion-proof class | IECEx : Ex ia IIC T4 Ga ATEX : II 1G Ex ia IIC T4 Ga |
| Ingress proof rating | IP67 |
| Approvals | IECEx, ATEX |
| Power source | Dry battery unit (AA alkaline battery 3pcs.) |
| Continuous operation |
Approx.18 hours [TYPE P] (new dry battery, 25ºC, without illumination) |
| Dimensions | Approx. 154(W) × 127(H) × 81(D) mm (projection portions excluded) |
| Weight | Approx. 1.1 kg [dry battery unit] |
| Operating temperature range | -20 to +50ºC (no sudden changes) |
| Operating humidity range | 0 to 95 %RH (no condensing) |
Downloads:
Manual
Specifications:
Certification
FI-8000 Startup
FI-8000 Downloading Data
FI-8000 Unit Configuration
FI-8000 Filter Maintenance
FI-8000 Changing Measurement Gas
Lithium Ion
Rechargeable Battery
Alkaline Battery Pack

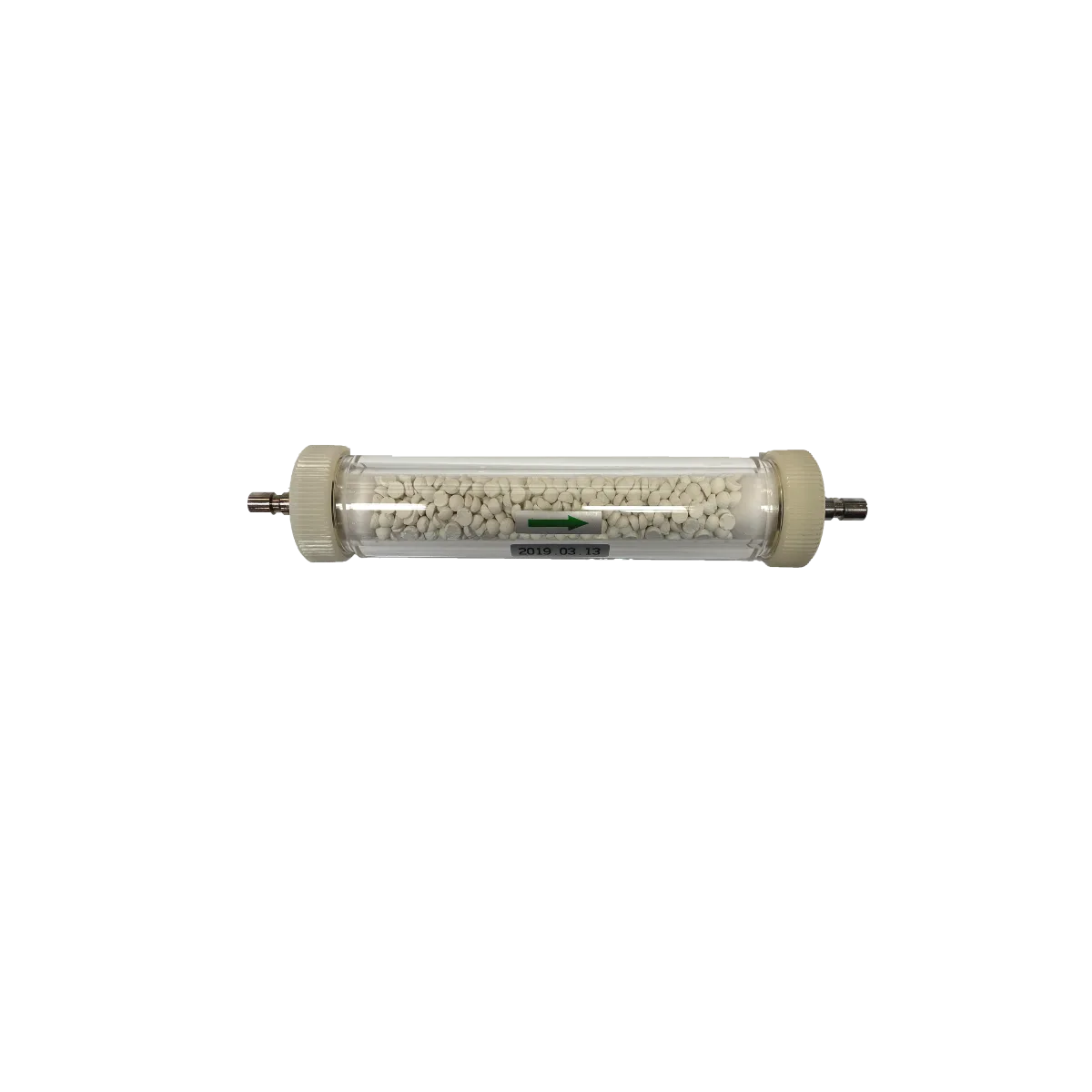

Soda Lime (CO2) Scrubber

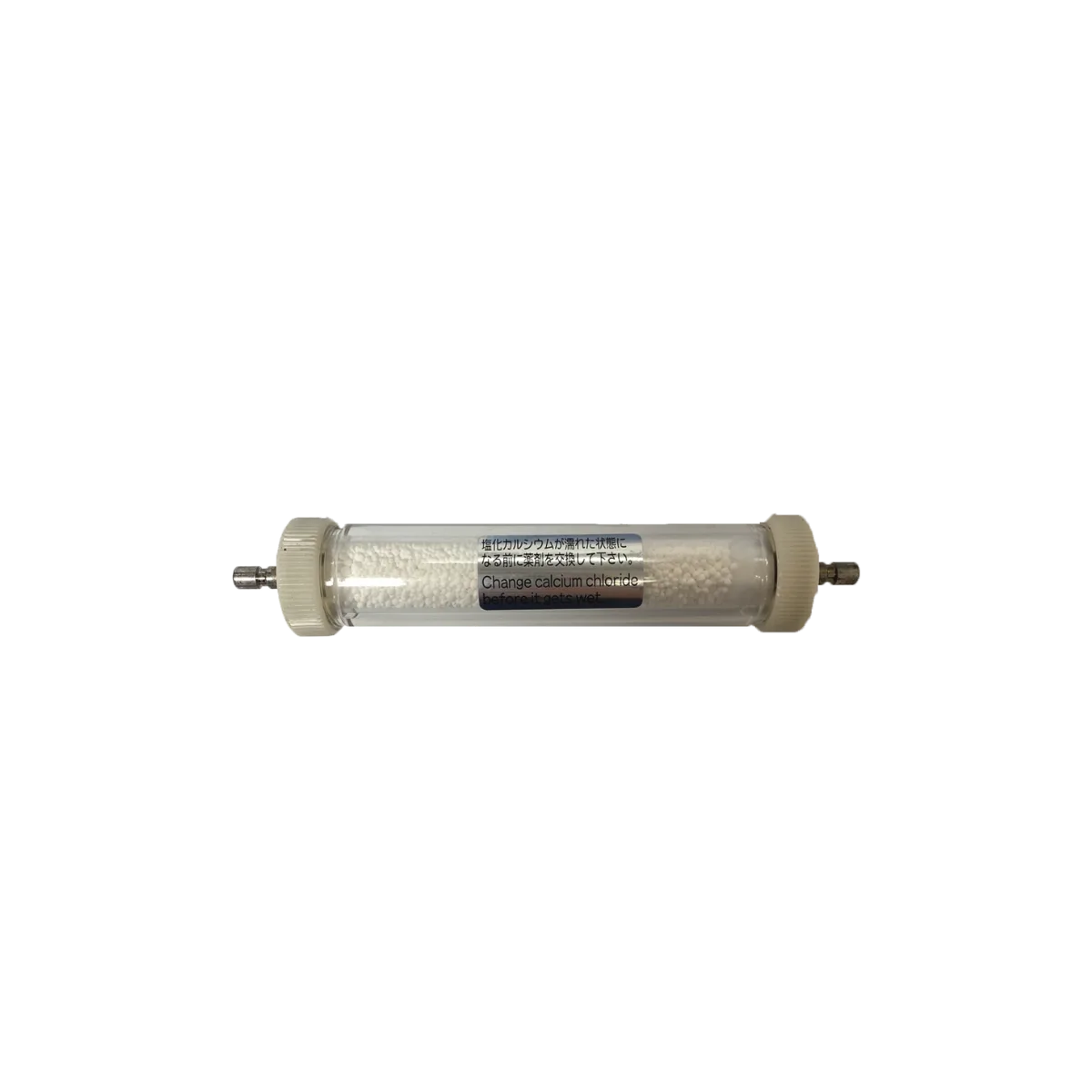

Calcium Chloride
(Moisture Absorber)

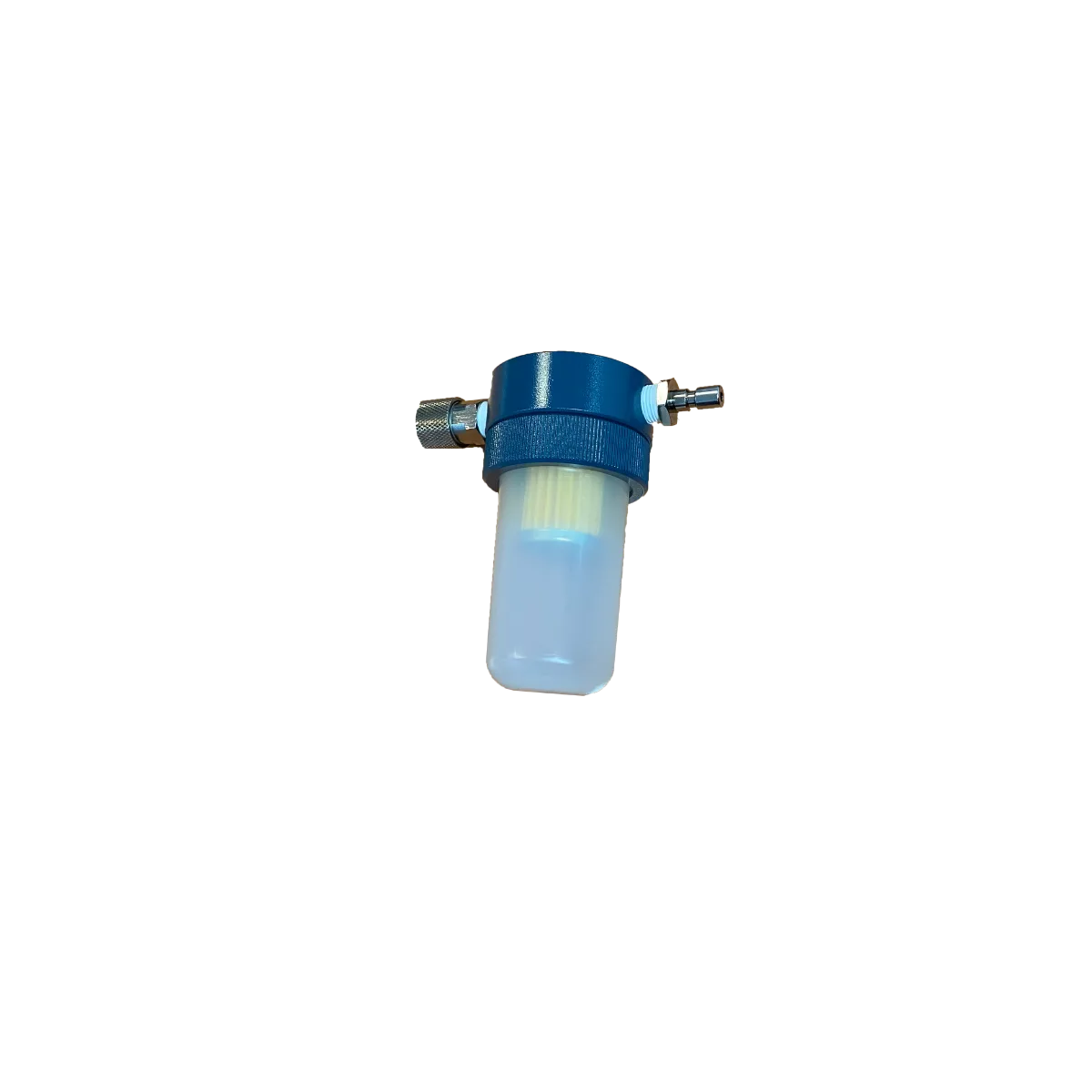

Water Trap

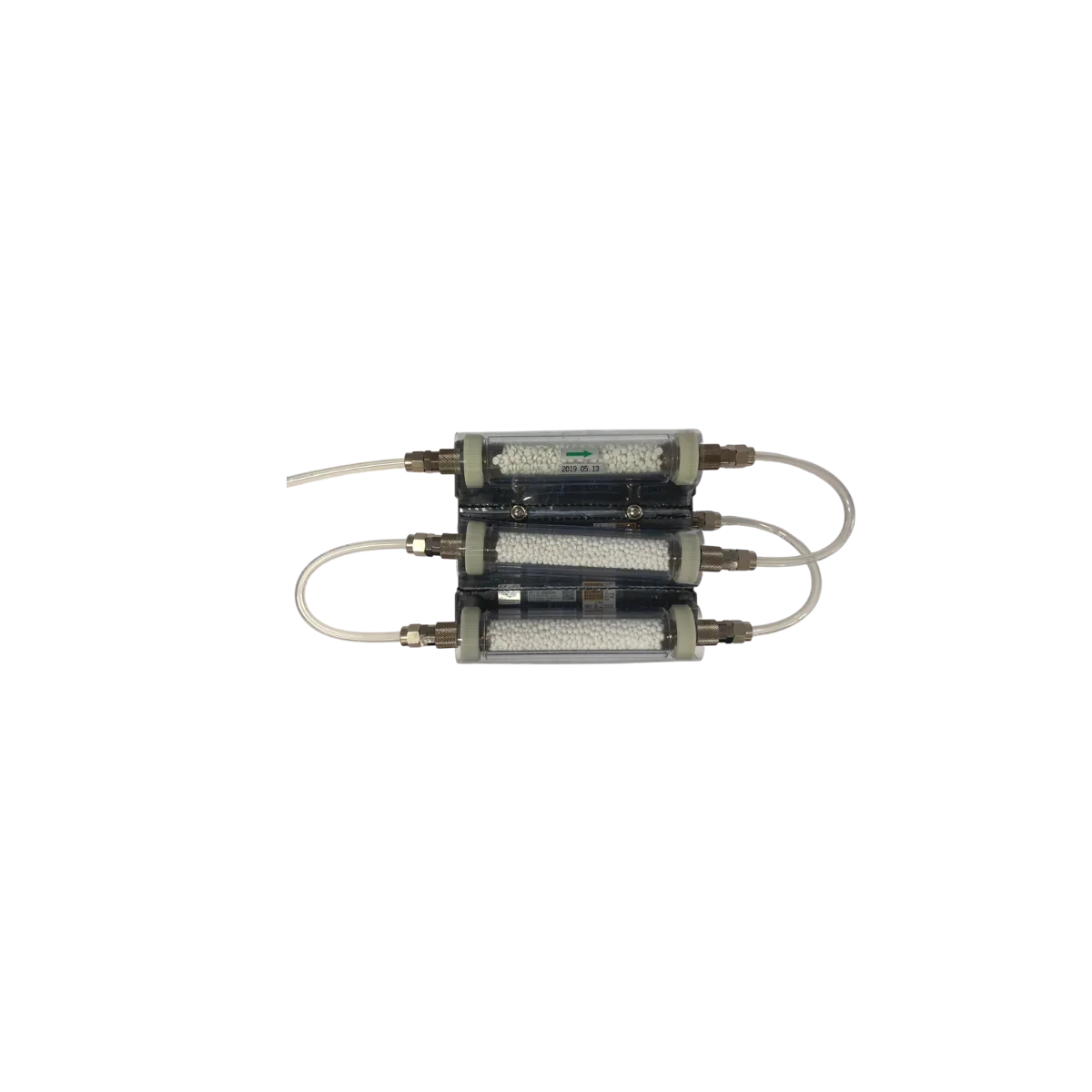

Junction Tubes
- Overview
-
Fumigation/Anaesthetic Gas Monitor Overview:
Following on from the popularity of the FI-21, the FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 has now been equipped with more capability of detecting new gases, as well as reducing in size.
Latest tech
The FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 is the latest model from Riken in a long line of optical interferometers dating back to the 1930’s when Riken’s founder first developed the technology for methane detection to help prevent explosion accidents on oil tankers and in coal mines.
Gas Measured
This version of the FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 has been setup to measure commonly used fumigants such as sulfuryl fluoride (SO2F2) / sulphuryl fluoride / vikane® / profume®, phosphine (PH3), methyl iodide (CH3I) / iodomethane / MEL, propylene oxide (CH3CHCH2O), hydrogen cyanide (HCN), and methyl bromide (CH3Br) / bromomethane. The principle operation is the comparison of the optical refractive index of the gas, and hence there are no moving parts or problems with sensor drift. This makes the calibration remain very stable.
Applications
Both FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 is also used in many other applications; such as anaesthesia, solvents, inert gases, toxic gases, and gas purity.
The Riken FI-8000 fumigation/anaesthetic gas monitor with IECEx / ATEX / IP-67 measures vaporizer output concentration using a digital display and does not require correction factors. Measures concentration in percentage for desflurane (suprane), sevoflurane, isoflurane (forane) and halothane.
- Specifications
-
Specifications:
Sampling method Suction type Principle of detection Interferometer Method Detection range Depend on target gas. Explosion protected construction Intrinsic safety Explosion-proof class IECEx : Ex ia IIC T4 Ga
ATEX : II 1G Ex ia IIC T4 GaIngress proof rating IP67 Approvals IECEx, ATEX Power source Dry battery unit (AA alkaline battery 3pcs.) Continuous operation Approx.18 hours [TYPE P] (new dry battery, 25ºC, without illumination)
Approx. 24 hours [TYPE A] (new dry battery, 25ºC, without illumination)Dimensions Approx. 154(W) × 127(H) × 81(D) mm (projection portions excluded) Weight Approx. 1.1 kg [dry battery unit] Operating temperature range -20 to +50ºC (no sudden changes) Operating humidity range 0 to 95 %RH (no condensing) - Downloads
-
