Smart Explosion Proof Gas Detector – SD-1

Features

Wide range of detectable gases
- % LEL Combustibles, catalytic
- % LEL Combustibles, IR
- H2S, CO, & O2
- PPM for acrylonitrile, hydrogen, ethylene oxide, methyl pyrolidone, methylene chloride, and many others
Sensor types include
- Catalytic, Galvanic Cell, MOS, IR, & Electrochemical
Direct digital display of gas readings
HART Communication protocol or 4-20 linear output
Available with SIL2 approval (IR, EC, OX versions)
Easy maintenance using a magnetic key
Self-diagnosis by microprocessor
Low power operation (Maximum: 3W)
Explosion proof: ATEX, IECEx, ExdIICT5

Description

Smart Explosion Proof Gas Detector Overview:

Our SD-1 line of smart Explosion Proof Gas Detector transmitters feature state-of-the-art gas detectors with durable flameproof enclosure, maximum safety, especially in hydrogen/ acethylene atmospheres. A simple magnetic control key is placed over clear marked positions on the surface plate to test and adjust the instrument without opening the transmitter in situations with danger of explosion. This “single-man-calibration” is already in use and applicable with other Control Equipment gas detectors for easy maintenance.

Smart Transmitter Sensor Specifications

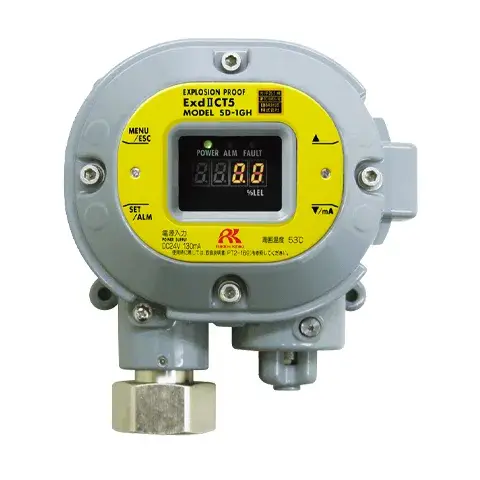

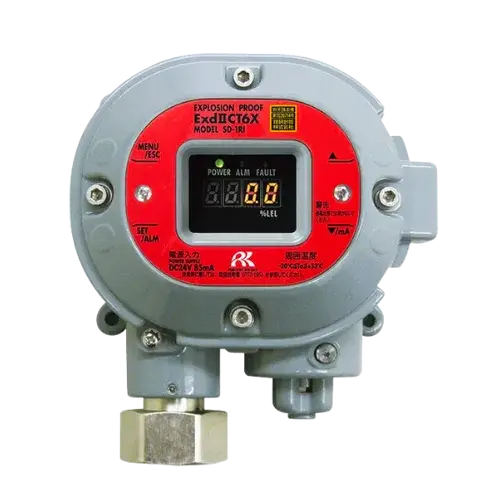

Model	SD-1GP	SD-1RI	SD-1GH	SD-1EC	SD-1OX
Detection principle	Catalytic	Infrared	Semiconductor	Electrochemical	Galvanic Cell
Measuring gas	Variety of hydrocarbons		See datasheet	CO/H2S	Oxygen
Measuring range	0 -100% LEL			CO: 0-75ppm H2S: 0-30ppm	0 -25 vol%
Alarm setting	2 programmable alarm set points/increasing/decreasing/latching/ self resetting/on delays/off delays/energised/energised
Alarm contacts	Normally open or normally closed
Sampling method	Diffusion (Flow adapter and air aspiration available)
Display	4 digit Digital LED
Output	4-20 mA or HART (optional without 4-20 mA)
Relay	1 Relay with 4-20 mA versions or No relay with HART versions
Contact capacity	30 VDC 0.5A or 120 VAC 0.5A (load resistance)
Fail alert Self diagnosis	Circuit failure / Sensor failure
Fail alert display	Fail lamp (Yellow)
Power source	24VDC (17VDC ~ 26.4VDC)
Operating Temperature & humidity	-20 ~ + 60°C / below 95% RH (non condensing), (SD-1EC Below 80% RH)
Dimension & Weight	148(W) x 161(H) x 88(D) mm, Approx. 2.0kg
Approvals **Applied to SD-1GP for H2, CH4, i-C4H10, C3H8	Exd II CT5,ATEX ** IECEx EN60079-29-1	CML 15ATEX1034 IECEX, SIL2	Exd II CT5,ATEX, IECEx	DEKRA 13ATEX0035 IECEx DEK 13.0024X, SIL2

Downloads

[pdf-embedder url=”https://controlequipment.com.au/wp-content/uploads/2024/03/SD-1RI_Datasheet.pdf”]

[pdf-embedder url=”https://controlequipment.com.au/wp-content/uploads/2024/03/SD-1OX_Datasheet.pdf”]

[pdf-embedder url=”https://controlequipment.com.au/wp-content/uploads/2024/03/SD-1_Datasheet.pdf”]

Applications

LNG Terminal
Petrochemical/Chemical plants
Power plant
Utilities
Iron and steel works
