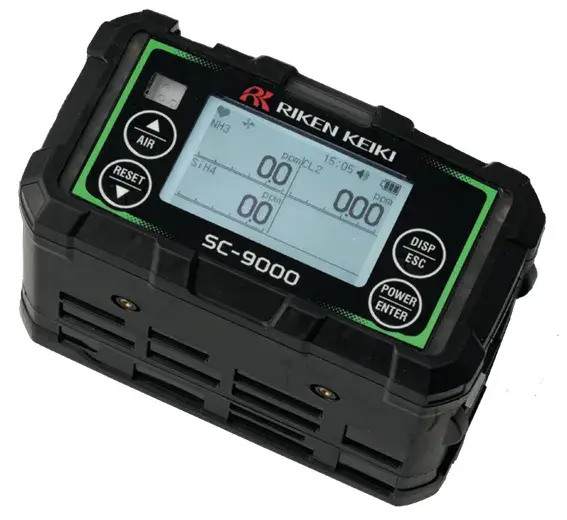

This multi toxic gas detector features 3 different toxic gas sensors to provide the performance of 3 conventional gas detectors in a single unit.
AVAILIBLE
| Sampling method | Suction type/Double type |
| Principle of detection | Potentiostatic Electrolysis Method |
| Detection range | Depend on target gas. |
| Alarm setpoints | Depend on target gas. |
| Type of alarm | Gas alarm / fault alarm |
| Display of alarm | Lamp flashing / continuous modulating buzzer sounding / gas concentration reading blinking |
| Explosion protected construction | Intrinsic safety |
| Explosion-proof class | ATEX : Ⅱ 1 G Ex ia ⅡC T4 Ga |
| IECEx : Ex ia ⅡC T4 Ga | |
| * Dry battery models when using Duracell (MN1500) batteries: | |
| -40 °C to +40 °C: T4, -40 °C to +60 °C: T3. | |
| Ingress proof rating | IP66/68 |
| Approvals | Japan Ex, ATEX, IECEx |
| CE marking | EMC / ATEX / RoHS / RE |
| Power source | Lithium ion battery unit [BUL-9000] or |
| Dry battery unit (AA alkaline battery 6 pcs.) [BUD-9000] | |
| Continuous operation | Approx. 60 hours [Lithium ion battery unit] |
| Approx. 30 hours [Dry battery unit] | |
| (at 25℃, no alarm, no lighting) | |
| Dimensions | Approx. 158 (W) × 85 (H) × 132 (D) mm (excluding projections) |
| Weight | Approx. 1.1 kg (includes battery and battery unit) |
| Operating temperature range | -20 ℃ to +50 ℃ (no sudden changes) |
| Operating humidity range | 20 to 90 %RH (no condensation) |
| Operating pressure range | 80 kPa to 120 kPa (80 to 110 kPa for explosion-proof range) |
This multi toxic gas detector features 3 different toxic gas sensors to provide the performance of 3 conventional gas detectors in a single unit. Sensor combinations can be selected from gases including NH3, HF, CI2, O2, SiH4, and PH3.
Dramatically improves work efficiency while reducing purchase and maintenance costs.
[pdf-embedder url=”https://controlequipment.com.au/wp-content/uploads/2024/12/SC-9000_Datasheet.pdf”]
Lithium-ion battery unit_AC adaptor for the GX-9000_GX-9000H

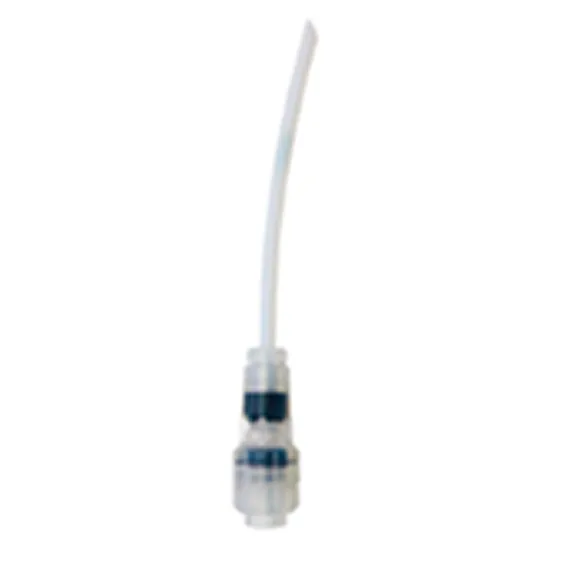

Gas Sampling Rod for GX-9000_GX-9000H
Shoulder strap for GX-9000_GX-9000H

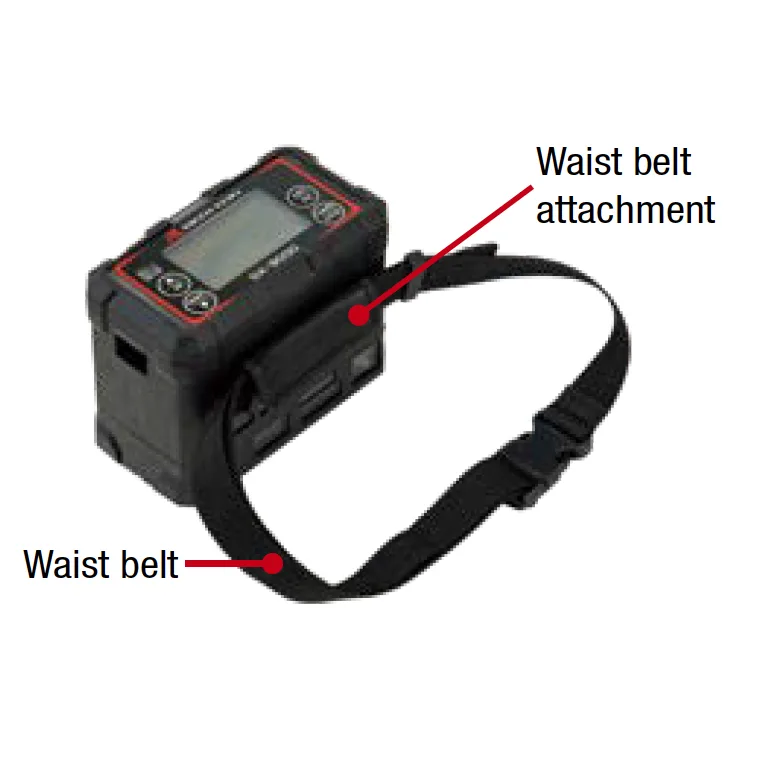

Waist belt and waist belt attachment for the GX-9000_GX-9000H
Sampling tube with weight for the GX-9000_GX-9000H

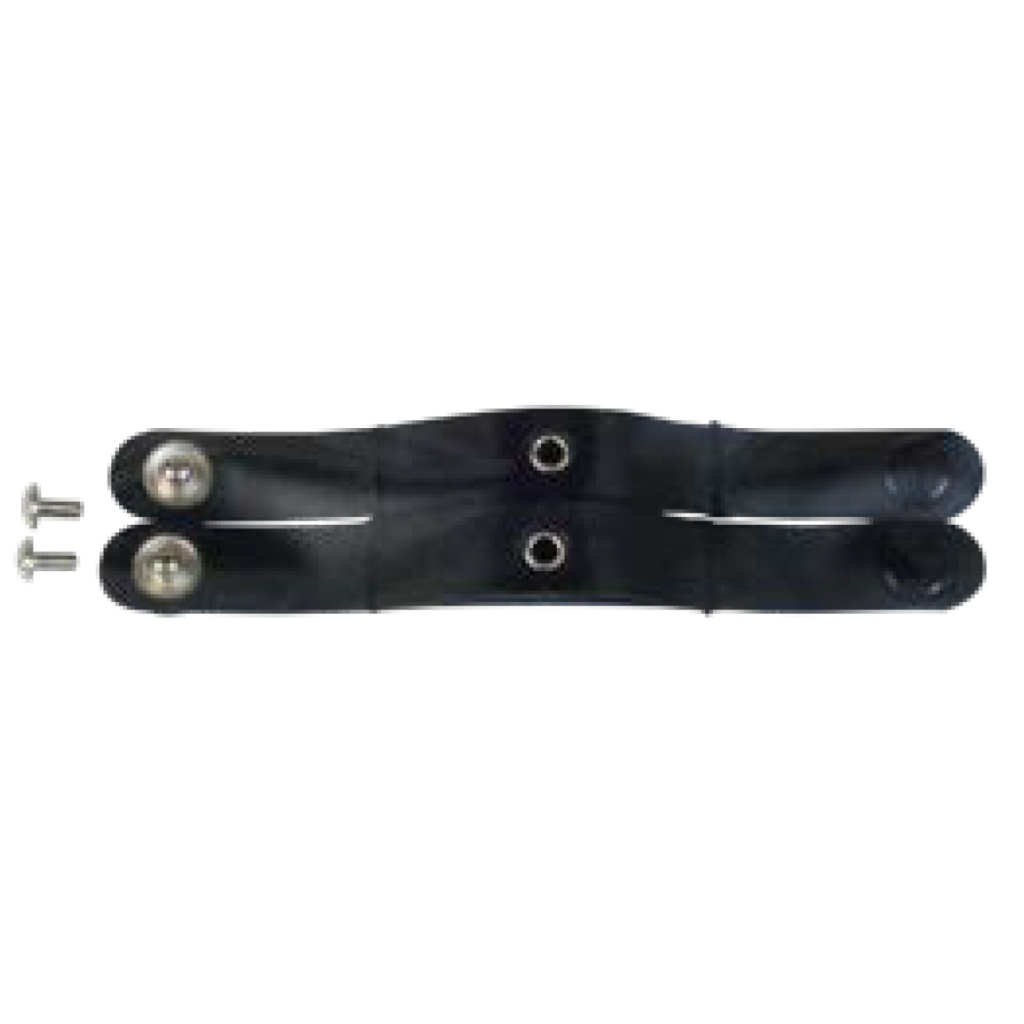

Filter cylinder retaining belt for the GX-9000_GX-9000H
Diluter for the GX-9000_GX-9000H
Dry battery unit for the GX-9000_GX-9000H

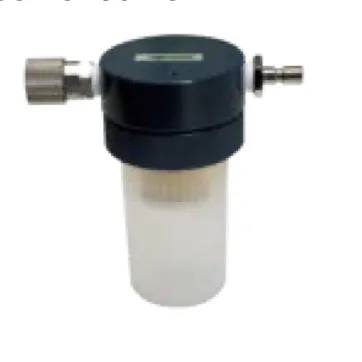

Water trap for the GX-9000/GX-9000H

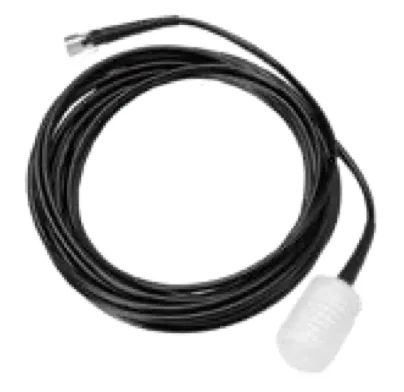

Sampling tube with float for the GX-9000/GX-9000H

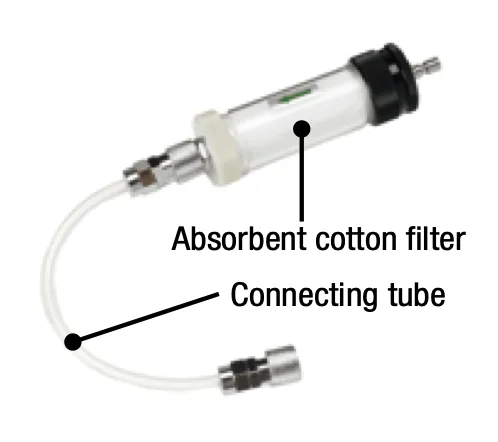

Absorbent cotton filter/Connecting tube for the GX-9000/GX-9000H

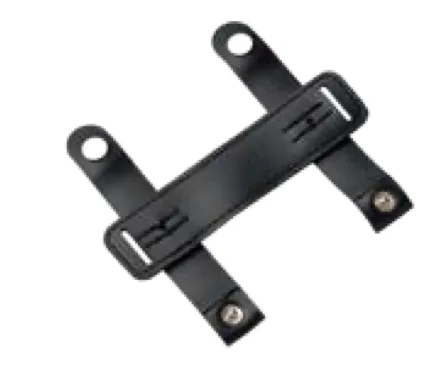

Filter cylinder retaining belt for the shoulder strap for the GX-9000/GX-9000H

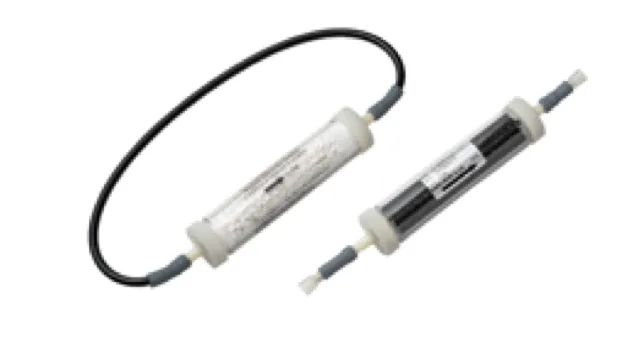

Fresh air adjustment filters for the GX-9000/GX-9000H

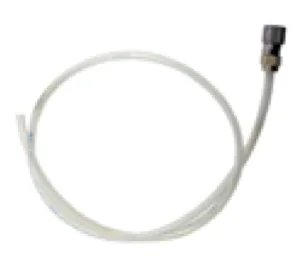

Gas sampling tube for the GX-9000/GX-9000H

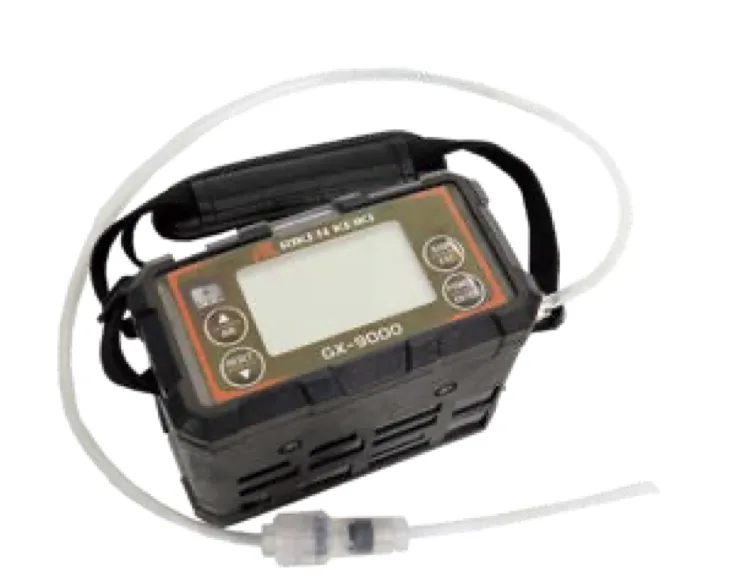

Appearance with accessories attached for the GX-9000/GX-9000H

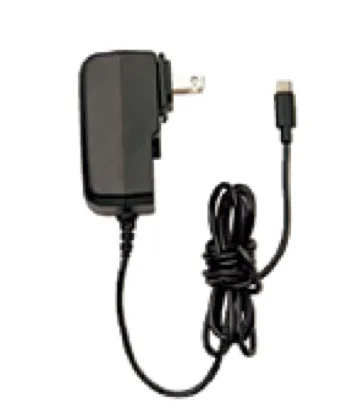

AC adapter for charging for the GX-9000/GX-900H
