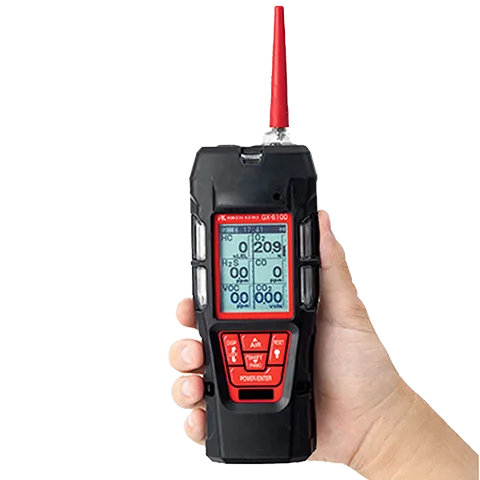

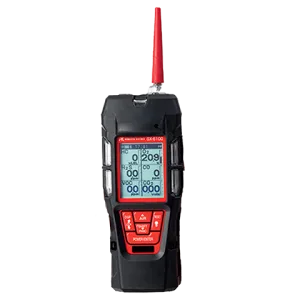

GX-6100 Portable One to Six Gas Monitor

Features:

Simultaneous detection of up to 6 gases: HC/CH₄, O₂, CO, H₂S, VOC, CO₂, NH₃, etc
Smallest 6 gas sample draw detector
High-performance gas sensors with up to 3-year warranty
Runs for approximately 28 hours with a single charge(approximately twice as long as previous models)
Detects combustible gases from ppm to vol% with a single unit
2 Interchangeable smart sensor slots
Supports dual PID sensors
PID library of over 600 VOCs
Internal sample pump
Light weight, small, rugged IP-67 design
Intrinsically safe ATEX / IECEx

Application/s:

Personal monitoring
Confined space entry
Fumigation Safety
Refineries/petrochemical
Wastewater treatment
Chemical plants
Fire service
Hazmat response teams
Arson investigation
Remediation site
Perimeter monitoring
Leak detection
Landfill monitoring
Winery tank entry

Overview
Specifications
Detection Ranges
Downloads
Accessories

GX-6100 Portable One to Six Gas Monitor Overview:

The GX-6100 is a powerful hand-held instrument capable of simultaneously monitoring up to 6 gases. In addition to the standard 4 confined space gases, which include combustibles, O2, CO, & H2S, the GX-6100 has 2 additional smart channels that accept PID, PPM, IR or super toxic sensors. The updated GX-6100 can measure combustible gases in PPM range and %volume in the same monitor.

Features include:

A strong internal sample pump, a man-down alarm, a panic alarm, an LED flashlight, and a large auto-rotating LCD
The GX-6100 can operate as a single-gas PID unit or as a multifunctional tool utilising all 6 channels.
With a PID sensor the GX-6100 comes equipped with a library of over 600 VOCs as standard. Choosing from the library is easy with a personalised favourites list of 30 commonly used VOCs, as well as a list of 8 of the most recently used VOCs.
A benzene-specific version is available using a pre-filter tube for detecting low levels of benzene. Four PID sensors are available: 10.0 eV, 10.6 eV (low or high range), and 11.7 eV. Any combination of two PID sensors can be installed. GX-6100 PID sensors are also humidity-resistant.
The GX-6100 has a rugged design built for the nastiest environments. It is equipped with a removable impact-resistant rubber boot and a dust and water-resistant enclosure with an IP-67 rating.
With 5 bright LED lights on 3 sides of the instrument, alarms are easily seen from a variety of perspectives. With vibration and a loud audible alarm, GX-6100 will easily alert users when needed.

GX-6100 Portable One to Six Gas Monitor Specifications:

Alarm Types	Gas alarm	Man-down	Trouble
	Low and high adjustable	1st – self reset 2nd – latching	Low flow Sensor connection Low battery Circuit error Calibration failure
Sample Method	Sample draw pump, flow rate 0.45 LPM, 100-foot sample range
Display	Digital LCD, autobacklight, peak bar display, auto display rotation, and customizable order of gases
Communication	Bluetooth, IrDA
Audible Alarm	95 dB at 1 ft.
Languages	English, Japanese, French, Spanish, Portuguese, Italian, German, Russian, Korean, Chinese (simplified), Chinese (traditional), Vietnamese, Slovak, Czech, Turkish, Polish
Continuous Operation	28 hours on Lithium-ion battery pack. Complete recharge in 6 hours. 8 hours Alkaline battery pack (3 AA size in each pack)
Operating Temp. & Humidity	-4°F to 122°F (-20°C ~ +50℃), 0- 95% RH non condensing
Dimensions	2.6” W x 7.9” H x 2.2” D (H200 x W68 x D56 mm) 17.6 ounce (500g) with lithium battery pack16 ounces with alkaline batteries (450g)
Case Material	Dust and water resistant with IP-67 approval (exclude sample hose and probe)
Safety Design / Approvals	Explosion proof: IECEx , ATEX , TIIS , cCSAus (pending) Explosion class :Ex ia IIC T4 Ga Others: CE Marking
Standard Features	2 Smart sensors slots auto recognize sensor changes Panic alarm and man down alarm Library of over 600 VOC’s User-defined VOC list. Up to 30 frequently used Recent VOC list for the last 8 selected gases Pump and circuit status indicators User & station ID selection menu Datalogging (interval, alarm trend, station and user ID) Snap logging – on-demand data logging Demand zero / Auto zero BUMP and CAL expiration alarm Flashlight LEL sensor protection mode
Standard Accessories	• Rubber boot • Belt clip • Hand strap • Tapper nozzle• Probe with hydrophobic & dust filter 3’ teflon lined hose• Benzene pre-filter tubes and holder (benzene versions)
Optional Accessories	• SDM-6100 calibration station • Bundles with instrument carrying case and accessories • Flexible probes • Up to 100-foot sample hoses • Filter set • IrDA cable
Warranty	Three years material (including R sensors) and workmanship. 2 years for IR sensors and ESS (except Cl2), One year for TE, Cl2 and PID sensors (Two months for 11.7 eV lamp)

GX-6100 Portable One to Six Gas Monitor Detectable Ranges:


Gas		Detection Range	Reading Increment	Alarm Set Points	Accuracy
PID Sensors
10.6 Lamp	600 VOC’s	0 – 40,000 ppb	1 ppb: (< 5000 ppb) 10 ppb: (> 5,000 ppb)	A1: 5,000 ppb A2: 10,000 ppb A3: 10,000 ppb	± 10% of reading, ± 1 digit
		0 – 4,000 ppm	0.1 ppm: (< 600 ppm) 1 ppm: (> 600 ppm)	A1: 400 ppm A2: 1,000 ppm A3: 1,000 ppm
10.0 Lamp	Benzene Specific	0 – 50 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 50 ppm)	No Alarms
	300 VOC’s	0 – 100 ppm	0.01 ppm (0 ~ 10 ppm) 0.1 ppm (10 ~ 100 ppm)	A1: 5 ppm A2: 10 ppm A3: 10 ppm
11.7	High Voltage Lamp	0 – 1,000 ppm	0.1 ppm (0-100 ppm) 1 ppm (100-1,000 ppm)	A1: 400 ppm A2: 1,000 ppm A3: 1,000 ppm
Electro Chemical R Sensor
Oxygen (O2)		0 – 40.0% Vol.	0.1% Vol.	A1: 19.5 Vol. A2: 18 Vol. A3: 23.5 Vol.	± 0.5% O2
Carbon Monoxide (CO)		0 – 2,000 ppm	1 ppm	A1: 25 ppm A2: 50 ppm A3: 1,200 ppm TWA 25 ppm STEL 200 ppm	± 5% of reading or ± 5 ppm
Hydrogen Sulfide (H2S)		0 – 200.0 ppm	0.5 ppm	A1: 5.0 ppm A2: 30.0 ppm A3: 100.0 ppm TWA 1.0 ppm STEL 5.0 ppm	± 5% of reading or ± 2 ppm
Toxics (EC Sensors)
Ammonia (NH3)		0 – 400.0 ppm	0.5 ppm	A1: 25 ppm A2: 50 ppm A3: 50 ppm	± 10% of reading or ± 5% of full scale
Chlorine (Cl2)		0 – 10.00 ppm	0.05 ppm	A1: 0.5 ppm A2: 1.0 ppm A3: 1.0 ppm
Hydrogen Cyanide (HCN)		0 – 15.0 ppm	0.1 ppm	A1: 5 ppm A2: 10 ppm A3: 10 ppm
Nitrogen Dioxide (NO2)		0 – 20.00 ppm	0.05 ppm	A1: 3 ppm A2: 6 ppm A3: 6 ppm
Phosphine (PH3)		0 – 20.00 ppm	0.01 ppm	A1: 0.30 ppm A2: 1.00 ppm A3: 1.00 ppm
Sulfur Dioxide (SO2)		0 – 99.90 ppm	0.05 ppm	A1: 2 ppm A2: 5 ppm A3: 5 ppm
Smart Sensors
NDIR Smart Sensors
Carbon Dioxide (CO2) NDIR		0 – 10,000 ppm	20 ppm	A1: 5,000 ppm TWA 5,000 ppm	± 5% of reading or ± 2% of full scale
		0 – 10.00% Vol.	0.02%	A1: 0.50% Vol A2: 3.00% Vol A3: 3.00% Vol STEL 3.00% Vol TWA 0.50% Vol
Methane NDIR		0 – 100% LEL 0 – 100% Vol.	1% LEL/ 0.5% Vol	A1: 10% LEL A2: 50% LEL A3: 50% LEL
Isobutane NDIR		0 – 100% LEL 0 – 30% Vol.
Smart Sensor (hot-wire semiconductor type)
Methane		0 – 5,000 ppm	10 ppm	N/A
Isobutane		0 – 2,000 ppm
R Sensor (new ceramic type)
Hydrocarbons (CH4, std)		0 – 100% LEL	1% LEL	A1: 10%LEL A2: 25%LEL A3: 50%LEL	± 5% of reading or ± 2% LEL
TC Sensor (thermal conductivity)
Methane CH4		0 – 100 vol%	1% vol%	N/A

GX-6100 Portable One to Six Gas Monitor Datasheet
