Personal Air Sampling Pump – Apex2

Apex2 Personal Sampling Pump

Features:

  • 2 Years Warranty (Conditions Apply)
  • Bluetooth® and Airwave app
  • Wearer acceptance
  • Motion Sensing
  • Simple Operation
  • Innovative Features
  • Easy Reporting
  • Great Battery Life
  • IP65
  • IECEx & ANZEx Certification

Application/s:

  • Asbestos
  • Occupational Hygiene
  • Mining
  • Indoor air quality
  • Construction sites
  • Personal compliance monitoring
  • Site dust levels

Overview for the Personal Air Sampling Pump:

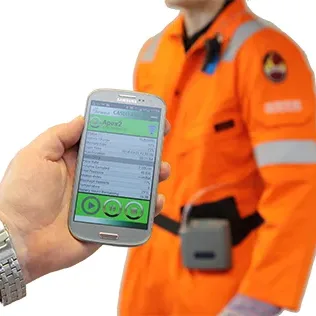

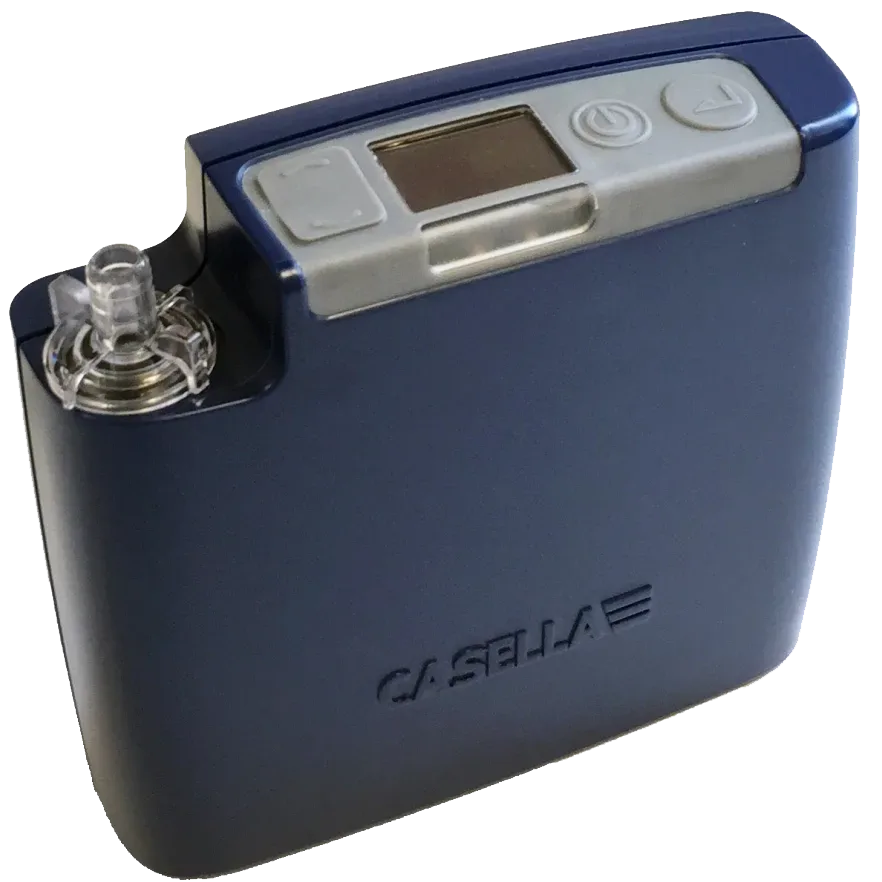

The Apex2 is the latest generation of personal air sampling pump, which can now be monitored from your mobile phone or tablet without disturbing the wearer using the Airwave App and Bluetooth® 4.0 connectivity (Plus and Pro models). On models without remote connectivity, all the running parameters are clearly displayed on the pump LED screen.

Design

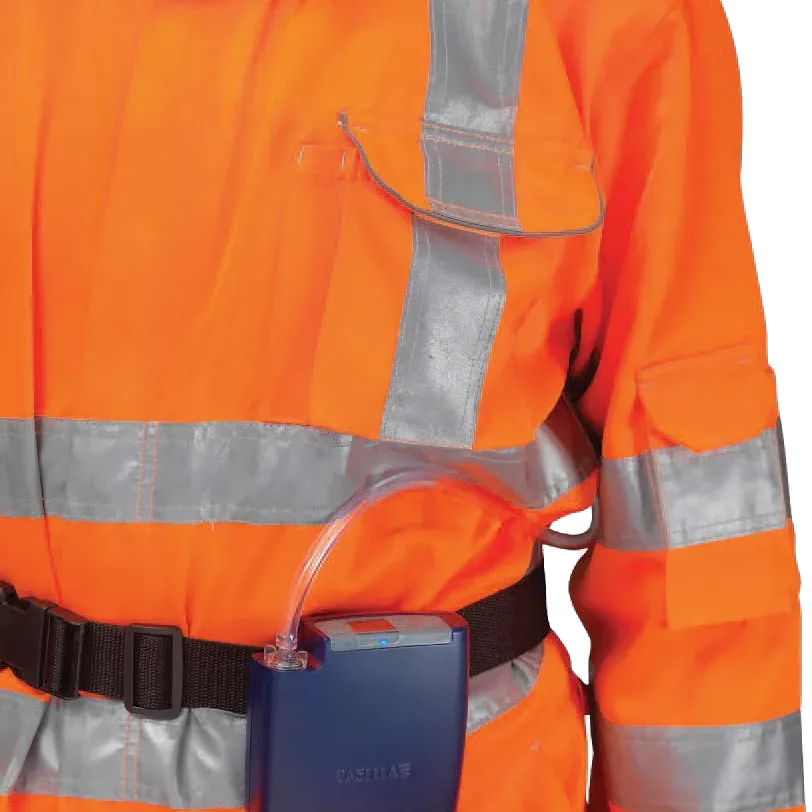

Motion sensing allows you to confirm that the pump is being worn, and the slim ergonomic design provides a high degree of wearer acceptance. To provide greater protection against dust and water ingress the pump is IP65 rated and its smooth finish makes it easier to decontaminate.

Flow Rate

The personal air sampling pump has a maximum flow rate of 5 l/min and an impressive back pressure capability, which ensures it operates reliably with a wide range of filter media. Inlet pressure is continually sensed to establish filter loading and aid diagnostics. Gas and vapour collection is also possible using the gas bag outlet on the pump.

Long Life

On a full battery charge the pump is designed to operate for up to three 8 hr shifts before it needs to be charged up. A gauge shows the battery charge level, and on Pro and Plus models, the remaining run time.

Specifications for the Personal Air Sampling Pump:

Flow Performance
Flow Range ml/min: 1000-5000
Low Flow Range ml/min: 5-500*
Flow Control: < ± 5% at calibrated point
Pulsation: <10% @ 2l/min
Back Pressure Capability: see separate table
Fault Detector: Auto Restart
Operating
Display: Colour OLED
Controls: 4 buttons
Status Indicators: Red/Green LED
Dimensions: 112x37x102mm
Weight: 480g
Environmental
Temperature: Operation, 0 – 45°C
Storage, -10 – 50°C
Humidity: 30-95% RH (non-condensing)
Barometric Pressure: Auto-correcting



Electrical
Battery Type Li ion
Battery Level Indicator Yes
Battery Life See separate table

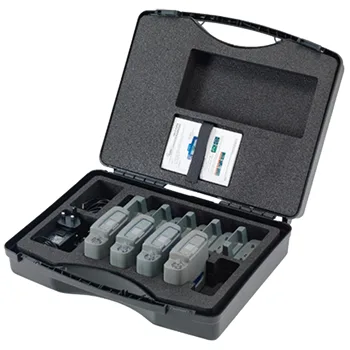

Chargers Single or 5-way
Charge time Typically <6hrs
Approvals

*Requires adaptor

IECEx & ANZEx
EN1232 Compliant ISO 13137
Compliant Ingress Protections: IP65

Downloads for the Personal Sampling Pump:

Specifications:

APEX 2 Bluetooth Capability

Overview

Overview for the Personal Air Sampling Pump:

The Apex2 is the latest generation of personal air sampling pump, which can now be monitored from your mobile phone or tablet without disturbing the wearer using the Airwave App and Bluetooth® 4.0 connectivity (Plus and Pro models). On models without remote connectivity, all the running parameters are clearly displayed on the pump LED screen.

Design

Motion sensing allows you to confirm that the pump is being worn, and the slim ergonomic design provides a high degree of wearer acceptance. To provide greater protection against dust and water ingress the pump is IP65 rated and its smooth finish makes it easier to decontaminate.

Flow Rate

The personal air sampling pump has a maximum flow rate of 5 l/min and an impressive back pressure capability, which ensures it operates reliably with a wide range of filter media. Inlet pressure is continually sensed to establish filter loading and aid diagnostics. Gas and vapour collection is also possible using the gas bag outlet on the pump.

Long Life

On a full battery charge the pump is designed to operate for up to three 8 hr shifts before it needs to be charged up. A gauge shows the battery charge level, and on Pro and Plus models, the remaining run time.

Specifications

Specifications for the Personal Air Sampling Pump:

Flow Performance
Flow Range ml/min: 1000-5000
Low Flow Range ml/min: 5-500*
Flow Control: < ± 5% at calibrated point
Pulsation: <10% @ 2l/min
Back Pressure Capability: see separate table
Fault Detector: Auto Restart
Operating
Display: Colour OLED
Controls: 4 buttons
Status Indicators: Red/Green LED
Dimensions: 112x37x102mm
Weight: 480g
Environmental
Temperature: Operation, 0 – 45°C
Storage, -10 – 50°C
Humidity: 30-95% RH (non-condensing)
Barometric Pressure: Auto-correcting



Electrical
Battery Type Li ion
Battery Level Indicator Yes
Battery Life See separate table
Chargers Single or 5-way
Charge time Typically <6hrs
Approvals

*Requires adaptor

IECEx & ANZEx
EN1232 Compliant ISO 13137
Compliant Ingress Protections: IP65
Downloads

Downloads for the Personal Sampling Pump:

Specifications:

Videos

APEX 2 Bluetooth Capability
