Features:
- Easy-to-grip lightweight design. Approx 280g
- 3 Year sensor warranty
- Intrinsically safe explosion-proof construction, flame-proof enclosure
- Continuous operating time: Approx 30 hours
- Passes 3m drop testing
- Protection rating equivalent to IP67
Application/s
- Confined spaces
- Hazardous material
- Refineries/petrochemical
- Personal monitoring
- Utilities
- Oil and gas
- Water/wastewater plants
- Fire services
- Pharmaceuticals
- Construction

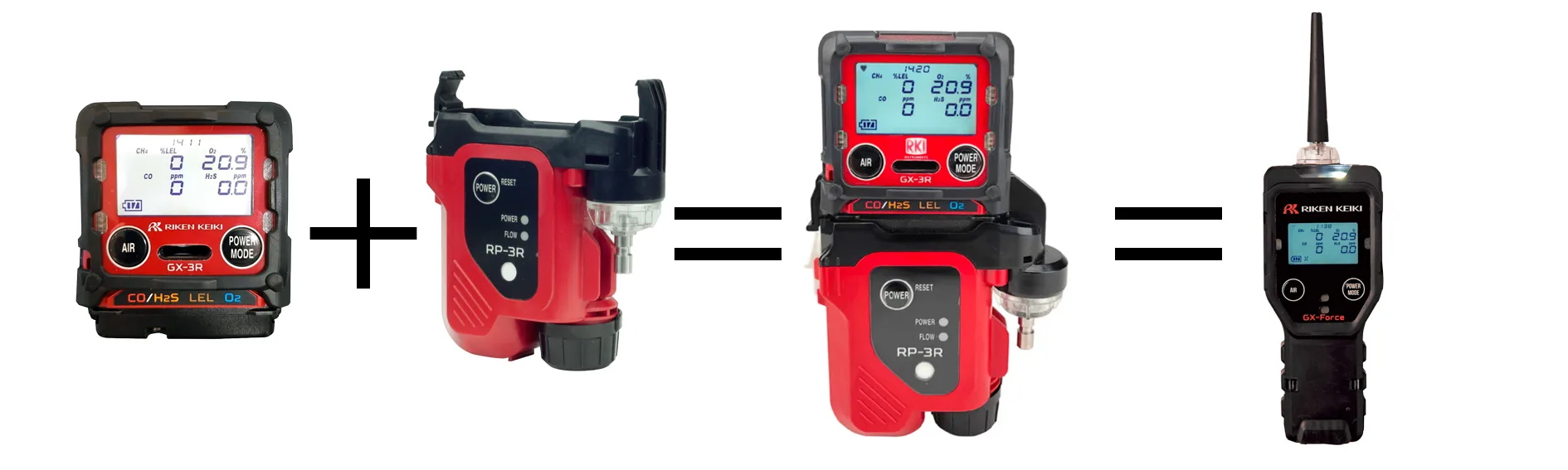

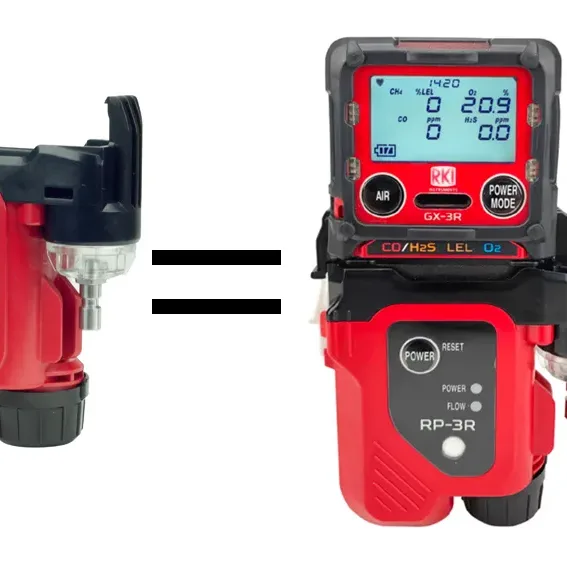

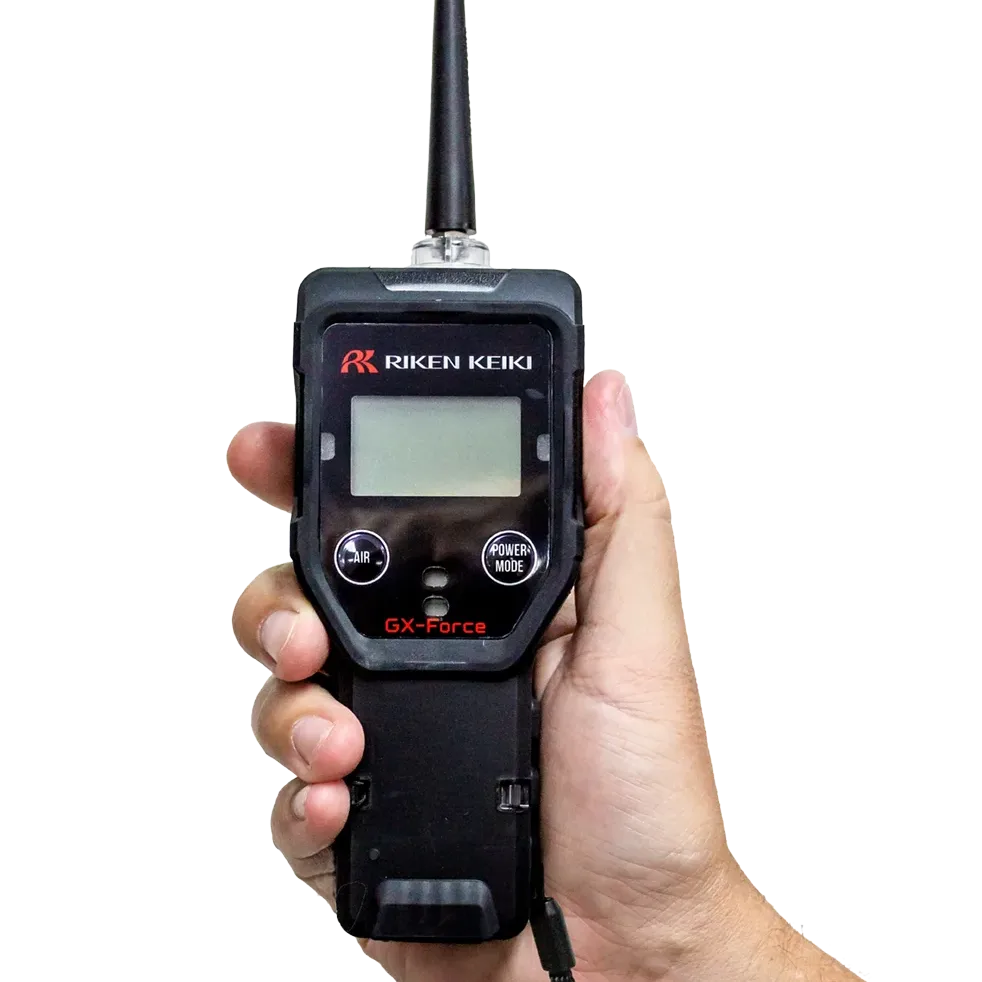

Overview for the GX-FORCE Portable Four Gas Detector with Pump:
The device has a lightweight design, weighing about 300g, with an easy-to-grip handle. It comes with a 3-year sensor warranty, has a continuous use time of approximately 30 hours, and has cleared a 3m drop test. The device has an explosion-proof construction and is equivalent to protection class IP67.
Common Specifications |
|
Model |
GX-Force |
Sampling Method |
Sample draw |
Suction flow rate |
Minimum 0.35 L/min (open flow rate) |
Gas alarm pattern |
Lamp flashing, continuous buzzer sounding, gas concentration display, vibration |
Gas alarm reset operation |
Self-latching |
Fault alarm/self-diagnosis |
System, clock, or sensor abnormality; battery voltage drop; calibration feature; pump abnormality; low flow rate |
Fault alarm pattern |
Lamp flashing, intermittent buzzer sounding, detail display |
Fault alarm reset operation |
Self-latching |
Display |
LCD digital (7-segment + 14-segment + icons) with backlight |
Individual operations |
Operational status, clock, battery level, peak reading, pump status, calibration notification |
Sound pressure |
Approx. 90 dB (30cm) |
Data logger function |
Maximum storage capacity: 3,600 items Interval: 5 minutes (adjustable) |
Communication specifications |
USB2.0 (for data logger) * Connector: Type-C |
Power source |
Rechargeable lithium-ion battery |
Continuous operating time*1 |
Approx. 30 hours (25°C) |
Operating ambient temperature/humidity range*2, 3 |
-40°C – +60°C (no suden changes), 0-95 %RH (no condensation) |
Explosion-proof construction Intrinsically safe explosion-proof construction, flame-proof enclosure
IECEx (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga)
ATEX (II1G Ex da ia IIC T4 Ga/II1G Ex ia IIC T4 Ga)
Japan EX (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga) (pending)
Certifications CE/UKCA marking, JIS T 8201, JIS T 8205, JIS T 8206
Protection Level IP67 equivalent
External dimensions/weight Approx. 64 mm (W) x 173 mm (H) x 47 mm (D) (excluding protrusions) / Approx. 280 g
* 1 Varies depending on the sensor type installed. Please contact for more information
* 2 In temporary ambient conditions for approximately 15 minutes. This operating temperature and humidity ranges for continuous ambient conditions are as follows: Temperature -20°C – +50°C (no sudden changes) / Humidity 10-90 %RH (no condensation)
* 3 The range of operating temperatures in which explosion-proof performance is maintained is as follows:Temperature: -20°C – +60°C (no sudden changes)
Downloads:
Specifications
Accessories for GX-FORCE Portable Four Gas Detector with Pump
Detection Target Gas Accesorries for the Portable four gas detector with pump
| Detection target gas | Combustible gas (CH4 or HC) | Oxygen gas (O2) | Carbon monoxide (CO) | Hydrogen sulfide (H2S) | ||
| Detection principle | New ceramic type (Catalytic type) | Electrochemical type | ||||
| Display range | 0 – 100 %LEL | 0.0 – 40.0 vol% | 0 – 2,000 ppm | 0.0 – 200.0 ppm | ||
| Detection range | 0 – 100%LEL | 0.0 – 25.0 vol% | 0 – 500 ppm | 0.0 – 100.0 ppm | ||
| Resolution | 1 %LEL | 0.1 vol% | 1 ppm | 0.1 ppm | ||
| Alarm setpoints (User-defined setting) | 1st alarm: 10 %LEL 2nd alarm: 25 %LEL
3rd alarm: 50 %LEL OVER alarm: 100% LEL |
1st alarm: 19.5 %LEL LL alarm: 18.0 vol%
H alarm: 23.5 vol% OVER alarm: 18.0 vol% |
1st alarm: 25 ppm
2nd alarm: 50 ppm 3rd alarm: 1,200 ppm TWA alarm: 25 ppm STEL alarm: 200 ppm OVER alarm: 2,000 ppm |
1st alarm: 5.0 ppm
2nd alarm: 30.0 ppm 3rd alarm: 100.0ppm TWA alarm: 1.0 ppm STEL alarm: 5.0 ppm OVER alarm: 200.0 ppm |
||
| Type List | ||||||
| Type / Detection target gas / Sensor | CH4 or GC NCR-6309 | O2 ESR-X13P | H2S & CO ESR-A1DP | H2S ESR-A13P | CO ESR-A13P | Reduced H2 interference CO ESR-A1CP |
| 4-component | Type A | O | O | O |
- Overview
-
Overview for the GX-FORCE Portable Four Gas Detector with Pump:
The device has a lightweight design, weighing about 300g, with an easy-to-grip handle. It comes with a 3-year sensor warranty, has a continuous use time of approximately 30 hours, and has cleared a 3m drop test. The device has an explosion-proof construction and is equivalent to protection class IP67.
- Specifications
-
Common Specifications
Model
GX-Force Sampling Method
Sample draw Suction flow rate
Minimum 0.35 L/min (open flow rate) Gas alarm pattern
Lamp flashing, continuous buzzer sounding, gas concentration display, vibration Gas alarm reset operation
Self-latching Fault alarm/self-diagnosis
System, clock, or sensor abnormality; battery voltage drop; calibration feature; pump abnormality; low flow rate Fault alarm pattern
Lamp flashing, intermittent buzzer sounding, detail display Fault alarm reset operation
Self-latching Display
LCD digital (7-segment + 14-segment + icons) with backlight Individual operations
Operational status, clock, battery level, peak reading, pump status, calibration notification Sound pressure
Approx. 90 dB (30cm) Data logger function
Maximum storage capacity: 3,600 items Interval: 5 minutes (adjustable) Communication specifications
USB2.0 (for data logger) * Connector: Type-C Power source
Rechargeable lithium-ion battery Continuous operating time*1
Approx. 30 hours (25°C) Operating ambient temperature/humidity range*2, 3
-40°C – +60°C (no suden changes), 0-95 %RH (no condensation) Explosion-proof construction Intrinsically safe explosion-proof construction, flame-proof enclosure
IECEx (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga)
ATEX (II1G Ex da ia IIC T4 Ga/II1G Ex ia IIC T4 Ga)
Japan EX (Ex da ia IIC T4 Ga/Ex ia IIC T4 Ga) (pending)Certifications CE/UKCA marking, JIS T 8201, JIS T 8205, JIS T 8206
Protection Level IP67 equivalent
External dimensions/weight Approx. 64 mm (W) x 173 mm (H) x 47 mm (D) (excluding protrusions) / Approx. 280 g
* 1 Varies depending on the sensor type installed. Please contact for more information
* 2 In temporary ambient conditions for approximately 15 minutes. This operating temperature and humidity ranges for continuous ambient conditions are as follows: Temperature -20°C – +50°C (no sudden changes) / Humidity 10-90 %RH (no condensation)
* 3 The range of operating temperatures in which explosion-proof performance is maintained is as follows:Temperature: -20°C – +60°C (no sudden changes)
- Downloads
-
Downloads:
Specifications - Accessories
-
Accessories for GX-FORCE Portable Four Gas Detector with Pump
Gas sampling probe Belt clip for the GX-Force Float type gas collector with tube 2-stage gas sampling rod Software for gas detection instruments Usb Port - Detected Gas
-
Detection Target Gas Accesorries for the Portable four gas detector with pump
Detection target gas Combustible gas (CH4 or HC) Oxygen gas (O2) Carbon monoxide (CO) Hydrogen sulfide (H2S) Detection principle New ceramic type (Catalytic type) Electrochemical type Display range 0 – 100 %LEL 0.0 – 40.0 vol% 0 – 2,000 ppm 0.0 – 200.0 ppm Detection range 0 – 100%LEL 0.0 – 25.0 vol% 0 – 500 ppm 0.0 – 100.0 ppm Resolution 1 %LEL 0.1 vol% 1 ppm 0.1 ppm Alarm setpoints (User-defined setting) 1st alarm: 10 %LEL 2nd alarm: 25 %LEL 3rd alarm: 50 %LEL
OVER alarm: 100% LEL
1st alarm: 19.5 %LEL LL alarm: 18.0 vol% H alarm: 23.5 vol%
OVER alarm: 18.0 vol%
1st alarm: 25 ppm 2nd alarm: 50 ppm 3rd alarm: 1,200 ppm
TWA alarm: 25 ppm
STEL alarm: 200 ppm
OVER alarm: 2,000 ppm
1st alarm: 5.0 ppm 2nd alarm: 30.0 ppm 3rd alarm: 100.0ppm
TWA alarm: 1.0 ppm
STEL alarm: 5.0 ppm OVER alarm: 200.0 ppm
Type List Type / Detection target gas / Sensor CH4 or GC NCR-6309 O2 ESR-X13P H2S & CO ESR-A1DP H2S ESR-A13P CO ESR-A13P Reduced H2 interference CO ESR-A1CP 4-component Type A O O O - Video
-
