Probe thermometer – Testo 925

Features:

  • Very good image quality: IR resolution of 160 x 120 pixels, via integrated testo SuperResolution Technology 320 x 240 pixels
  • Large temperature measuring range from -30°C to +650°C
  • Smart and networked: the free testo Thermography App enables you to write and send reports on site, as well as saving them online, and lots more.
  • Integrated digital camera

Application/s:

  • Detect leaks
  • Identify overheated connections
  • Pinpoint thermal bridges
  • Detect structural defects

Overview:

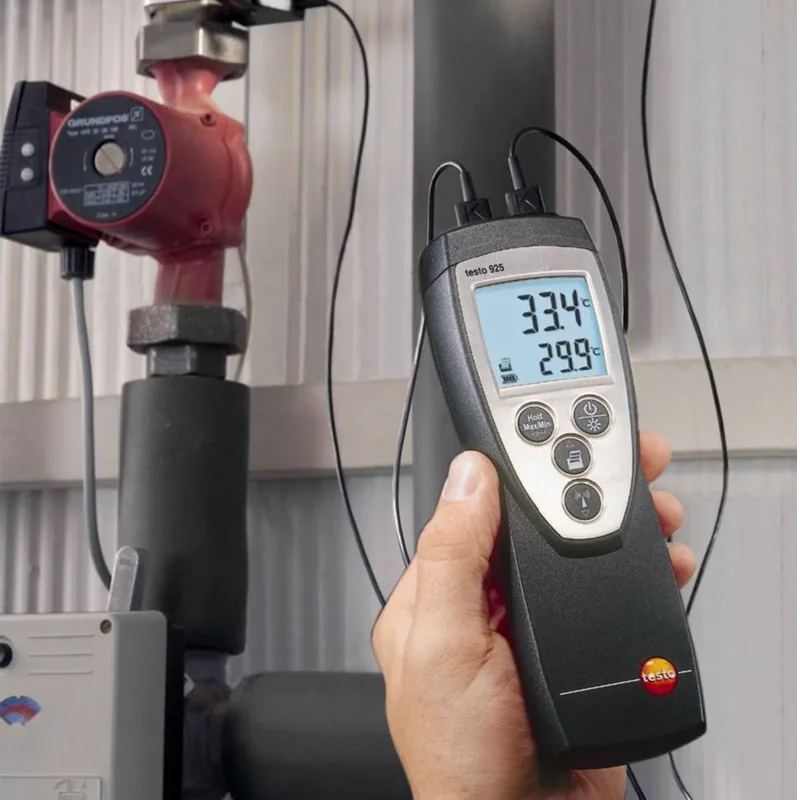

The testo 925 temperature measuring instrument is our all-rounder for temperature measurement in heating engineering, the sanitation sector and refrigeration and air conditioning technology.

Take advantage of the thermocouple technology of the attachable temperature probes (type K thermocouple) with this temperature measuring instrument. It enables fast temperature checks and a large temperature measuring range from -50 to +1000 °C (the measuring range is dependent on the probe selected).

Specifications:

Temperature – TC Type K (NiCr-Ni)
Measuring range -50 to +1000 °C
Accuracy ±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)

±(0.7 °C + 0.5 % of mv) (Remaining Range)

Resolution 0.1 °C (-50 to +199.9 °C)

1 °C (Remaining Range)

General technical data
Dimensions 182 x 65 x 40 mm
Operating temperature -20 to +50 °C
Housing ABS
Number of channels 1-channel
Battery type 9V block battery, 6F22
Battery life 200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)
Storage temperature -40 to +70 °C
Weight 171 g

Downloads:

Specifications:

Overview

Overview:

The testo 925 temperature measuring instrument is our all-rounder for temperature measurement in heating engineering, the sanitation sector and refrigeration and air conditioning technology.

Take advantage of the thermocouple technology of the attachable temperature probes (type K thermocouple) with this temperature measuring instrument. It enables fast temperature checks and a large temperature measuring range from -50 to +1000 °C (the measuring range is dependent on the probe selected).

Specifications:

Specifications:

Temperature – TC Type K (NiCr-Ni)
Measuring range -50 to +1000 °C
Accuracy ±(0.5 °C + 0.3 % of mv) (-40 to +900 °C)

±(0.7 °C + 0.5 % of mv) (Remaining Range)

Resolution 0.1 °C (-50 to +199.9 °C)

1 °C (Remaining Range)

General technical data
Dimensions 182 x 65 x 40 mm
Operating temperature -20 to +50 °C
Housing ABS
Number of channels 1-channel
Battery type 9V block battery, 6F22
Battery life 200 h (connected probe, backlight off); 45 h (radio mode, backlight off); 68 h (connected probe, backlight always on); 33 h (radio mode, backlight always on)
Storage temperature -40 to +70 °C
Weight 171 g
Downloads

Downloads:

Specifications:
