Features:
- Measurement range extension for Single dilution slot or optional for all sensors
- Pressure-/ flow-measurement standard in every Testo 340
- Automatic flow-controlled gas pump
- 18 standard fuels and additional 10 user-defined fuels – Fuel data is calculated using software easyEmission
- Direct measurement of 4 gases simultaneously
- CO range extension 50,000 PPM
- Automatic sensor protection range extension
- Smartphone App compatible
Application/s:
- Analysis of the gas atmosphere (thermal processes)
- Service measurement on industrial engines
- Service measurement on industrial burners
Overview:

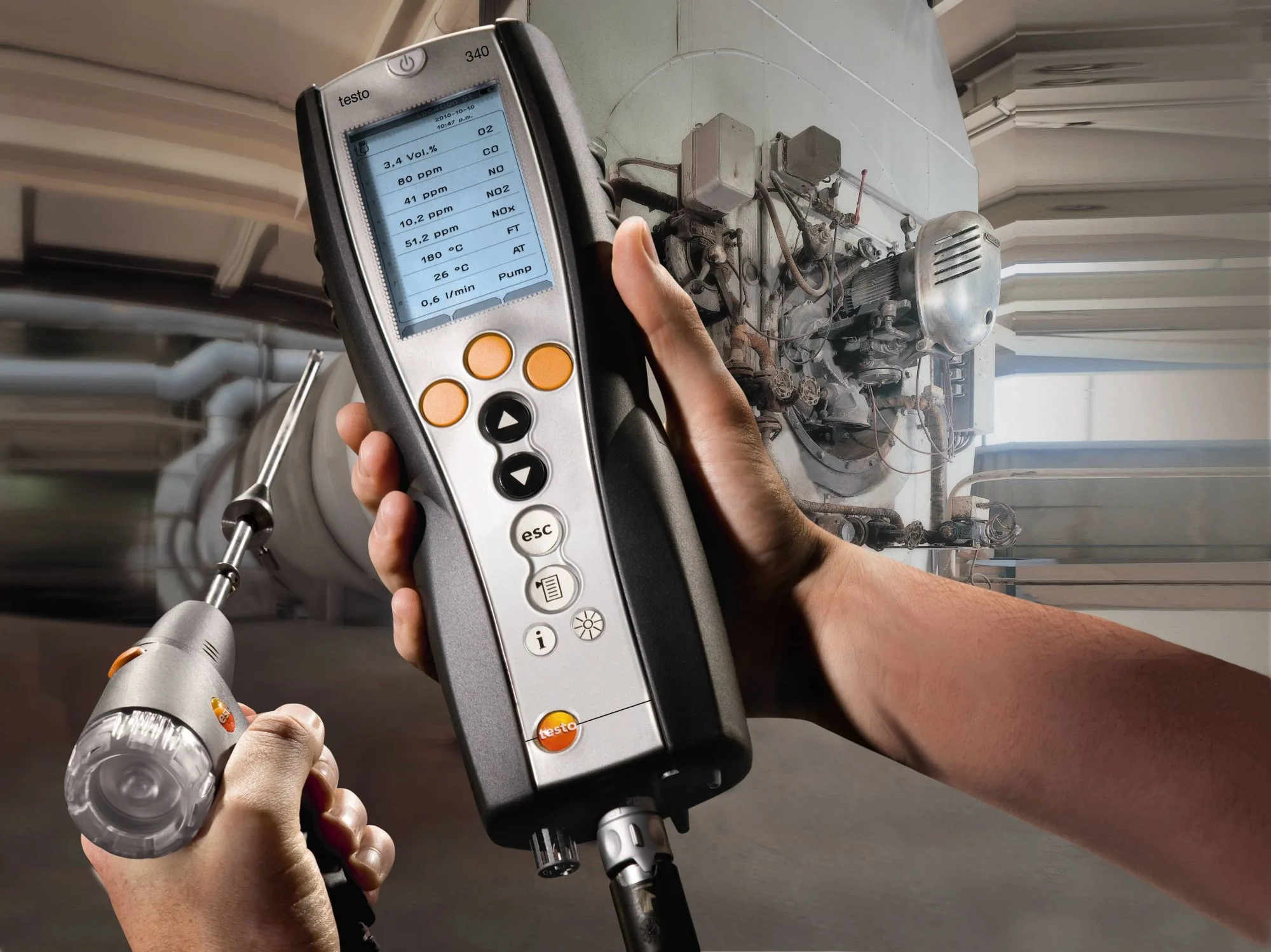

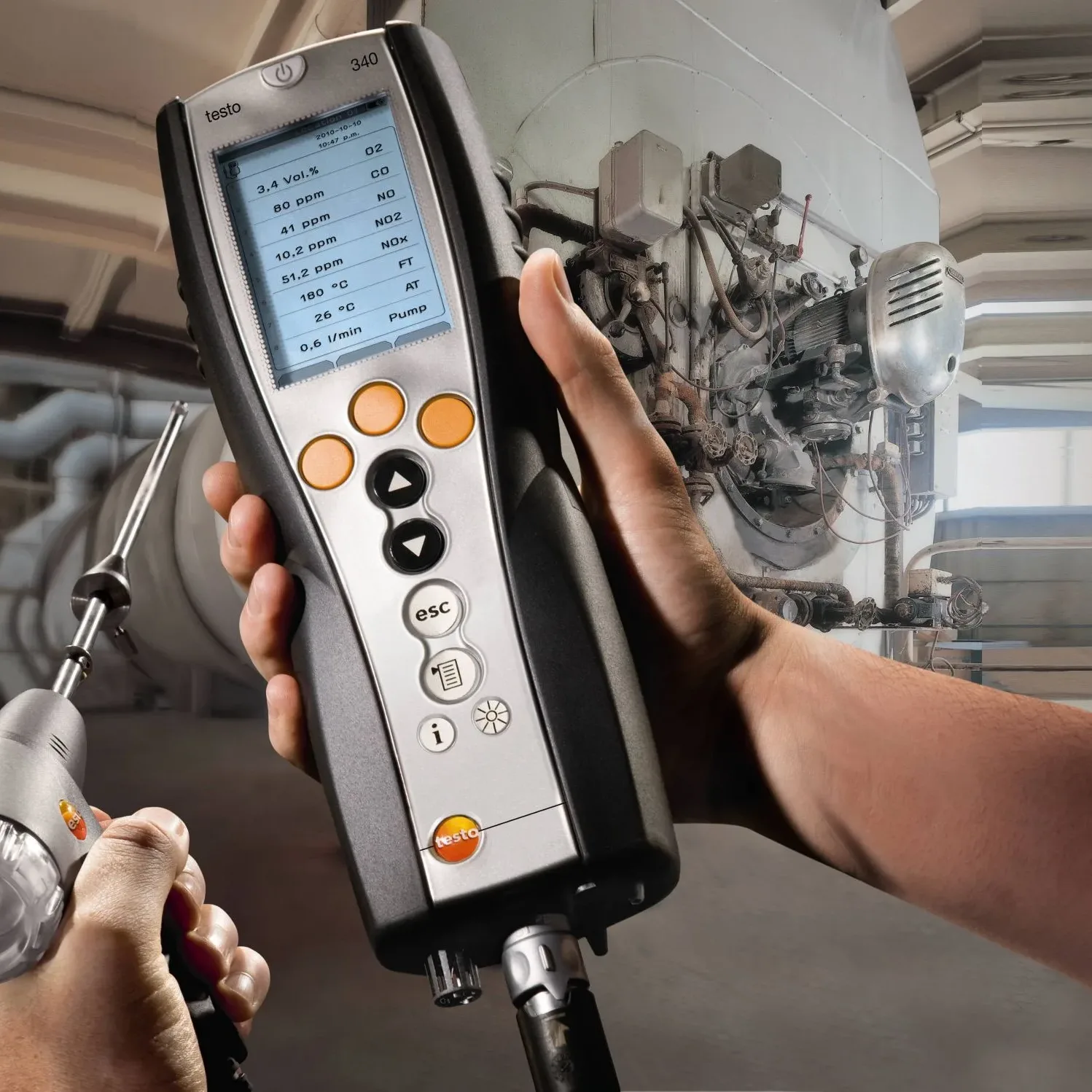

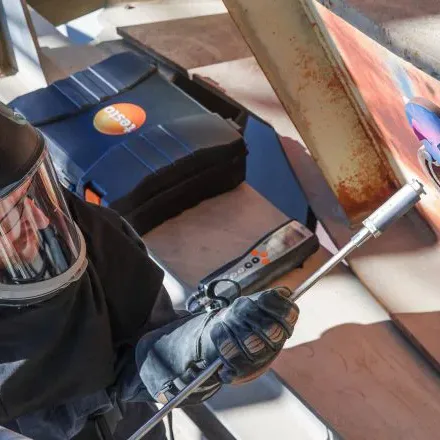

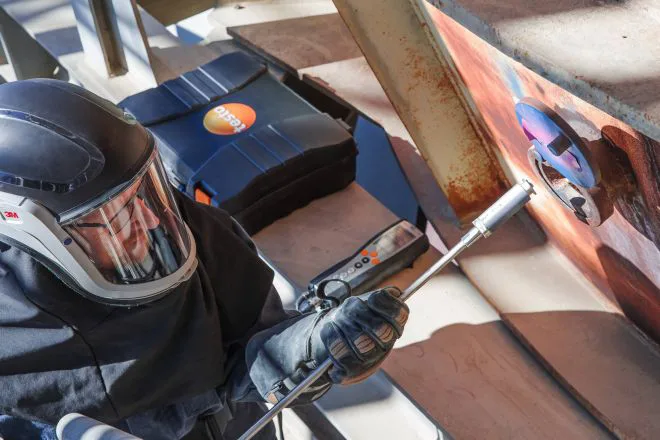

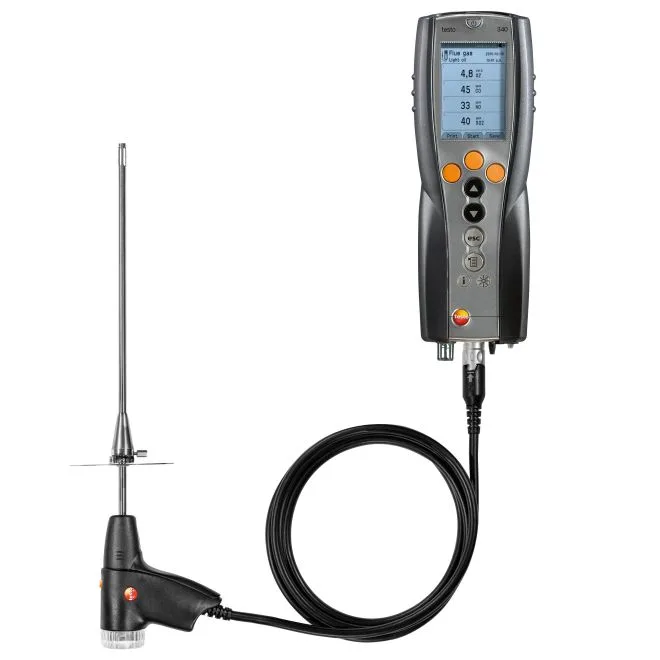

The handy, easy-to-operate emission measuring instrument Testo 340 is the right tool for many different emission measurements. The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines, and thermal processes.

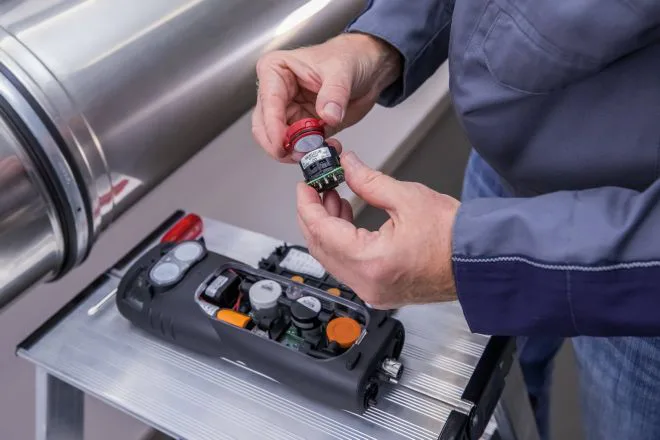

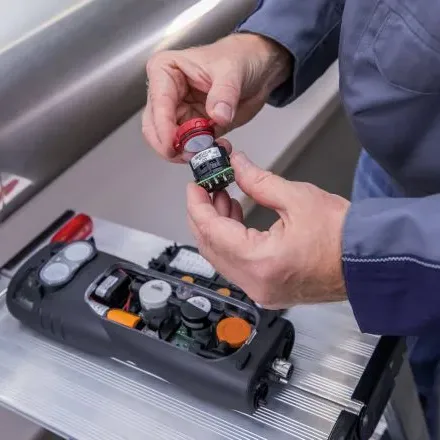

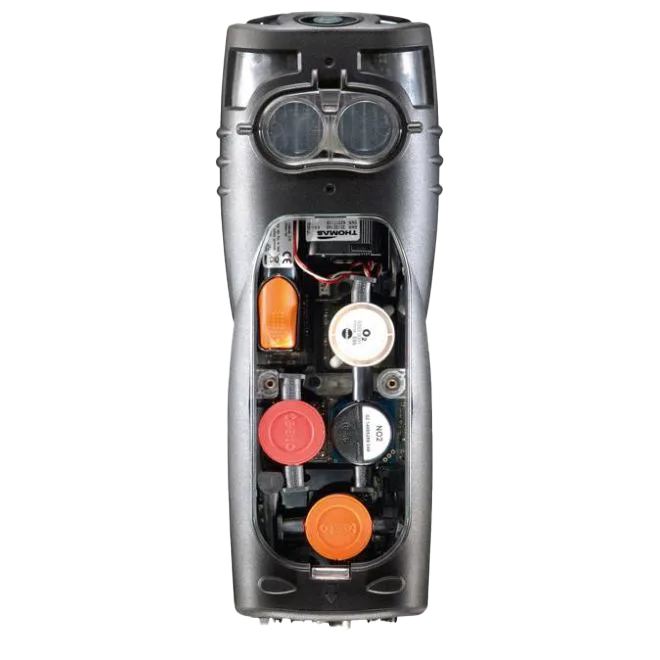

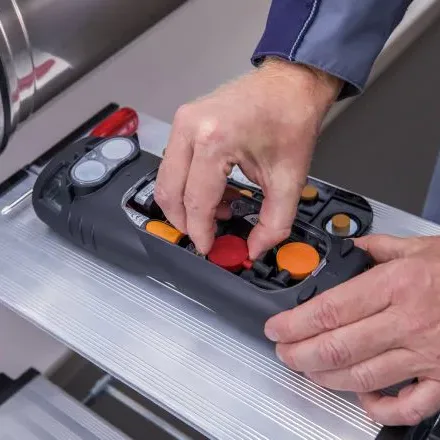

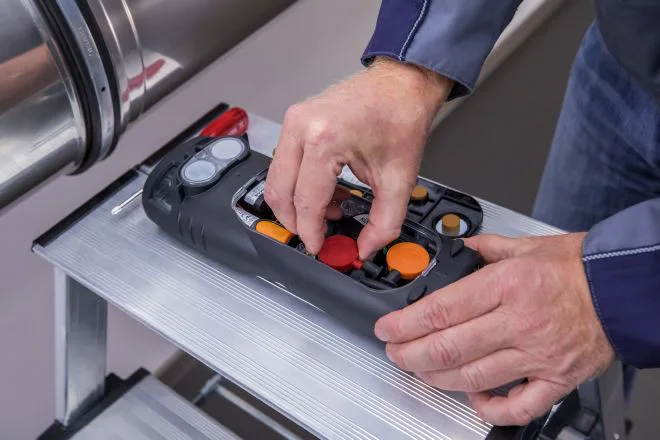

The unique measuring range extension allows unrestricted measurements to be carried out even at high gas concentrations. The Testo 340 is equipped with an O2 sensor as standard. Three further gas sensors can be configured individually, in order to be able to adapt the instrument optimally to the respective measurement task. The instrument can also be operated remotely from your Android Smartphone or tablet using the free App.
| Memory | |
| Maximum | 100 folders |
| Per folder | Max. 10 sites |
| Per site | Max. 200 logs. The max. number of logs is determined bythe number of folders or sites |
| User-defined fuels | 10 user-defined fuels incl. test gas as fuel |
| Regulated diaphragm pump | |
| Pump flow 0.6 l/min (regulated) | Pump flow 0.6 l/min (regulated) |
| Hose length max. 7.8 m (corresponds to two probe | Hose length max. 7.8 m (corresponds to two probe hose extensions) |
| Max. pos. press./flue gas +50 mbar | Max. pos. press./flue gas +50 mbar |
| Max. neg. press./flue gas -200 mbar | Max. neg. press./flue gas -200 mbar |
| Weight 960 g | Weight 960 g |
| Dimensions 283 x 103 x 65 mm | Dimensions 283 x 103 x 65 mm |
| Storage temperature -20 to +50 ÅãC | Storage temperature -20 to +50 ÅãC |
| Operating temperature -5 to +50 ÅãC | Operating temperature -5 to +50 ÅãC |
| Display Graphic display 160 x 240 pixels | Display Graphic display 160 x 240 pixels |
| Power supply Battery block 3.7 V / 2.4 Ah | Power supply Battery block 3.7 V / 2.4 Ah
Mains unit 6.3 V / 2 A |
| Housing material TPE PC | Housing material TPE PC |
| Protection class IP40 | Protection class IP40 |
| Measuring instrument 2 years | Measuring instrument 2 years |
| Gas sensors CO, NO, COlow, NOlow, NO2, SO2: 1 year | Gas sensors CO, NO, COlow, NOlow, NO2, SO2: 1 year O2: 1.5 years |
| Pumps | 0.5 years |
| Solenoid valves | 0,5 years |
| Thermocouples | 1 year |
| Rechargeable batteries | 1 year |
| Probes | 2 years |
| Guarantee conditions | https://www.testo.com/guarantee |
- Overview
-
Overview:
The handy, easy-to-operate emission measuring instrument Testo 340 is the right tool for many different emission measurements. The compact design and the reliable technology make it the ideal measuring instrument for commissioning, service and maintenance work and in test measurements on industrial burners, stationary industrial engines, gas turbines, and thermal processes.
The unique measuring range extension allows unrestricted measurements to be carried out even at high gas concentrations. The Testo 340 is equipped with an O2 sensor as standard. Three further gas sensors can be configured individually, in order to be able to adapt the instrument optimally to the respective measurement task. The instrument can also be operated remotely from your Android Smartphone or tablet using the free App.
- Specifications
-
Memory Maximum 100 folders Per folder Max. 10 sites Per site Max. 200 logs.
The max. number of logs is determined bythe number of folders or sitesUser-defined fuels 10 user-defined fuels incl. test gas as fuel Regulated diaphragm pump Pump flow 0.6 l/min (regulated) Pump flow 0.6 l/min (regulated) Hose length max. 7.8 m (corresponds to two probe Hose length max. 7.8 m (corresponds to two probe hose extensions) Max. pos. press./flue gas +50 mbar Max. pos. press./flue gas +50 mbar Max. neg. press./flue gas -200 mbar Max. neg. press./flue gas -200 mbar Weight 960 g Weight 960 g Dimensions 283 x 103 x 65 mm Dimensions 283 x 103 x 65 mm Storage temperature -20 to +50 ÅãC Storage temperature -20 to +50 ÅãC Operating temperature -5 to +50 ÅãC Operating temperature -5 to +50 ÅãC Display Graphic display 160 x 240 pixels Display Graphic display 160 x 240 pixels Power supply Battery block 3.7 V / 2.4 Ah Power supply Battery block 3.7 V / 2.4 Ah Mains unit 6.3 V / 2 A
Housing material TPE PC Housing material TPE PC Protection class IP40 Protection class IP40 Measuring instrument 2 years Measuring instrument 2 years Gas sensors CO, NO, COlow, NOlow, NO2, SO2: 1 year Gas sensors CO, NO, COlow, NOlow, NO2, SO2: 1 year O2: 1.5 years Pumps 0.5 years Solenoid valves 0,5 years Thermocouples 1 year Rechargeable batteries 1 year Probes 2 years Guarantee conditions https://www.testo.com/guarantee - Downloads
-
