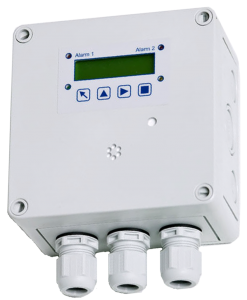

Oxygen and Toxic Gas Stand Alone Monitor – SPC-X3

Features:

  • Continuous monitoring
  • Integrated gas sensor
  • Good resistance to poisoning
  • Long life expectancy
  • Modular design (plug-in technology)
  • Standard version with display/LED/keyboard and internal buzzer
  • Reverse polarity protected, overload-proof and short-circuit-proof
  • (0) 4 – 20 mA / (0) 2 – 10V analogue signal output
  • 2 x relay outputs 30 VAC/DC, 0.5 A
  • 2 x binary output, 30 VDC, 0.05 A
  • 4 – 20 mA input for external transmitter
  • Different housing versions
  • Approved according to EN 61010-1; ANSI/UL 61010 1; CAN/CSA-C22.2 No. 61010

Application/s:

  • Wide range of commercial and industrial applications
  • Possible applications in the field of gas measuring and monitoring

Overview:

Gas measuring, monitoring and warning controller based on state-of-the-art micro-technology with integrated sensor and internal buzzer for the continuous monitoring of the ambient air and detecting toxic gases and vapours or oxygen. The SPC-X3 is provided with an input for one external analog transmitter. Four alarm thresholds per sensor/transmitter are free programmable. Configuration and operation are possible via the logical, simple system menu structure without specific programming knowledge.

The SPC-X3-TOX is suitable for a wide range of commercial and industrial applications, Free programmable parameters and set- points enable the individual adaptation to a variety of possible applications in the field of gas measuring and monitoring.

Specifications:

Electrical
Power supply 18 – 28 VDC/AC, reverse polarity protected
Power consumption (without options) 100 mA, max. (2.5 VA)
Analog output, current or voltage selectable 0 (4) – 20 mA, load≤ 500 Ω

0 (2) – 10 V, load ≥ 50 kΩ

overload-proof and short-circuit-proof
Alarm relay (1) 30 VAC/DC 0.5 A, potential-free, SPDT
Alarm relay (1) 30 VAC/DC 0.5 A, potential-free, SPNO/SPNC
Binary output (2) 30 VDC / 0.05 A, open collector output
Analog input 4 – 20 mA overload-proof and short-circuit-proof,

input resistance 200 Ω
Voltage for ext. analog transmitter 24 VDC max. load 50 mA
Visualisation
Display Two lines, 16 characters each
Status LED (4) Normal operation- Fault- Alarm1- Alarm 2
Operation 4 push-buttons – menu-driven
Buzzer (internal)
Acoustic pressure 83 dB (A) (distance 200 mm) (0.6 ft.)
Frequency 2300 Hz
Gases
Internal sensor Toxic gases, etc. (see Ordering Information)
Sensor data See corresponding datasheet of

ADTX3 transmitter
External transmitter Toxic gases, Ex gases, Freons, temperature,

humidity, pressure, etc.
Operating environment
Humidity 15 – 95 % RH non-condensing
Working temperature -10 °C to + 50 °C (14 °F to 122 °F)
Storage temperature 5 °C to 30 °C (41 °F to 86 °F)
Pressure range Atmospheric ± 10 %
Physical
Enclosure plastic type C, B und E Polycarbonate
Flammability UL 94 V2
Enclosure colour RAL 7032 (light grey)
Dimensions type C and B (W x H x D) 130 x 130 x 75 mm (5.12 x 5.12 x 2.95 inch.)
Dimensions type E 130 x 130 x 100 mm (5.12 x 5.12 x 3.94 inch.)
Weight Approx. 0.6 kg (1.323 Ibs.)
Protection class IP 65
Installation Wall mounting
Cable entry Standard 3 x M 20
Wire connection Screw type terminal, min. 0.25 mm2 (24 AWG)

max. 2.5 mm2 (14 AWG)
Guidelines EMC Directives 2004/108/EC

Low Voltage Directive 2006/95/EC

EN 61010-1:2010

ANSI/UL 61010-1

CAN/CSA-C22.2 No. 61010-1

CE
Warranty 1 year on material (without sensor)
Options
Power supply 230 VAC
  90 to 250 VAC, 50/60 Hz, 0.5 A
Power relay
Contact rating 230 VAC, 5 A, potential-free, change-over contact
Emergency power supply
  Supply duration 60 Min., maintenance-free
LED flashing light
  IP65, LED, 3500 Im.
Warning light
Power supply 18 – 28 VDC/AC
Consumption 45 mA, max. (1.2 VA)
Protection class IP 65
External horn
Acoustic pressure 87 dB (A) (distance 1000 mm)
Frequency 3500 Hz
Power supply 18 – 28 VDC
Consumption 6 mA, max. (0.15 VA)
External multi-sound horn
Acoustic pressure 85 -100 dB (A) (depending on sound type)
Sound types 28
Power supply 18 – 28 VDC
Consumption 6 mA, max. (depending on sound type)
Heating
Temperature controlled 3 °C ±2°C (37.5 °F ± 3.6°F)
Ambient temperature – 30 °C (- 22 °F)
Power supply 18 – 28 VDC/AC
Power consumption 0.5 A; 12 VA
Enclosure stainless steel, type 5
Material V2A steel, 1 mm, material 1.4301 corrosion resistant
Colour Natural, brushed
Dimensions (B x H x D) 113 x 135 x 45 mm (4.45 x 5.31 x 1.77 inch.)
Weight ca. 0.5 kg (1.1 lbs.)
Protection class IP 55
Mounting Wall mounting, pillar mounting
Cable entry Standard 2 x M 20

Downloads:

Specifications:

Overview

Overview:

Gas measuring, monitoring and warning controller based on state-of-the-art micro-technology with integrated sensor and internal buzzer for the continuous monitoring of the ambient air and detecting toxic gases and vapours or oxygen. The SPC-X3 is provided with an input for one external analog transmitter. Four alarm thresholds per sensor/transmitter are free programmable. Configuration and operation are possible via the logical, simple system menu structure without specific programming knowledge.

The SPC-X3-TOX is suitable for a wide range of commercial and industrial applications, Free programmable parameters and set- points enable the individual adaptation to a variety of possible applications in the field of gas measuring and monitoring.

Specifications

Specifications:

Electrical
Power supply 18 – 28 VDC/AC, reverse polarity protected
Power consumption (without options) 100 mA, max. (2.5 VA)
Analog output, current or voltage selectable 0 (4) – 20 mA, load≤ 500 Ω

0 (2) – 10 V, load ≥ 50 kΩ

overload-proof and short-circuit-proof
Alarm relay (1) 30 VAC/DC 0.5 A, potential-free, SPDT
Alarm relay (1) 30 VAC/DC 0.5 A, potential-free, SPNO/SPNC
Binary output (2) 30 VDC / 0.05 A, open collector output
Analog input 4 – 20 mA overload-proof and short-circuit-proof,

input resistance 200 Ω
Voltage for ext. analog transmitter 24 VDC max. load 50 mA
Visualisation
Display Two lines, 16 characters each
Status LED (4) Normal operation- Fault- Alarm1- Alarm 2
Operation 4 push-buttons – menu-driven
Buzzer (internal)
Acoustic pressure 83 dB (A) (distance 200 mm) (0.6 ft.)
Frequency 2300 Hz
Gases
Internal sensor Toxic gases, etc. (see Ordering Information)
Sensor data See corresponding datasheet of

ADTX3 transmitter
External transmitter Toxic gases, Ex gases, Freons, temperature,

humidity, pressure, etc.
Operating environment
Humidity 15 – 95 % RH non-condensing
Working temperature -10 °C to + 50 °C (14 °F to 122 °F)
Storage temperature 5 °C to 30 °C (41 °F to 86 °F)
Pressure range Atmospheric ± 10 %
Physical
Enclosure plastic type C, B und E Polycarbonate
Flammability UL 94 V2
Enclosure colour RAL 7032 (light grey)
Dimensions type C and B (W x H x D) 130 x 130 x 75 mm (5.12 x 5.12 x 2.95 inch.)
Dimensions type E 130 x 130 x 100 mm (5.12 x 5.12 x 3.94 inch.)
Weight Approx. 0.6 kg (1.323 Ibs.)
Protection class IP 65
Installation Wall mounting
Cable entry Standard 3 x M 20
Wire connection Screw type terminal, min. 0.25 mm2 (24 AWG)

max. 2.5 mm2 (14 AWG)
Guidelines EMC Directives 2004/108/EC

Low Voltage Directive 2006/95/EC

EN 61010-1:2010

ANSI/UL 61010-1

CAN/CSA-C22.2 No. 61010-1

CE
Warranty 1 year on material (without sensor)
Options
Power supply 230 VAC
  90 to 250 VAC, 50/60 Hz, 0.5 A
Power relay
Contact rating 230 VAC, 5 A, potential-free, change-over contact
Emergency power supply
  Supply duration 60 Min., maintenance-free
LED flashing light
  IP65, LED, 3500 Im.
Warning light
Power supply 18 – 28 VDC/AC
Consumption 45 mA, max. (1.2 VA)
Protection class IP 65
External horn
Acoustic pressure 87 dB (A) (distance 1000 mm)
Frequency 3500 Hz
Power supply 18 – 28 VDC
Consumption 6 mA, max. (0.15 VA)
External multi-sound horn
Acoustic pressure 85 -100 dB (A) (depending on sound type)
Sound types 28
Power supply 18 – 28 VDC
Consumption 6 mA, max. (depending on sound type)
Heating
Temperature controlled 3 °C ±2°C (37.5 °F ± 3.6°F)
Ambient temperature – 30 °C (- 22 °F)
Power supply 18 – 28 VDC/AC
Power consumption 0.5 A; 12 VA
Enclosure stainless steel, type 5
Material V2A steel, 1 mm, material 1.4301 corrosion resistant
Colour Natural, brushed
Dimensions (B x H x D) 113 x 135 x 45 mm (4.45 x 5.31 x 1.77 inch.)
Weight ca. 0.5 kg (1.1 lbs.)
Protection class IP 55
Mounting Wall mounting, pillar mounting
Cable entry Standard 2 x M 20
Downloads

Downloads:

Specifications:
