Features:
- Time history storage (Selectable from 1s to 30min)
- Larger memory (999 runs)
- Voice notes (Up to 33 hours of audio storage)
- GPS
-
Compact, rugged design
-
Simple operation
-
Single large measurement range
-
Large memory
-
High resolution colour display
-
Real-time octave band analysis (‘B’ models)
-
Simultaneous measurement of all workplace noise parameters
-

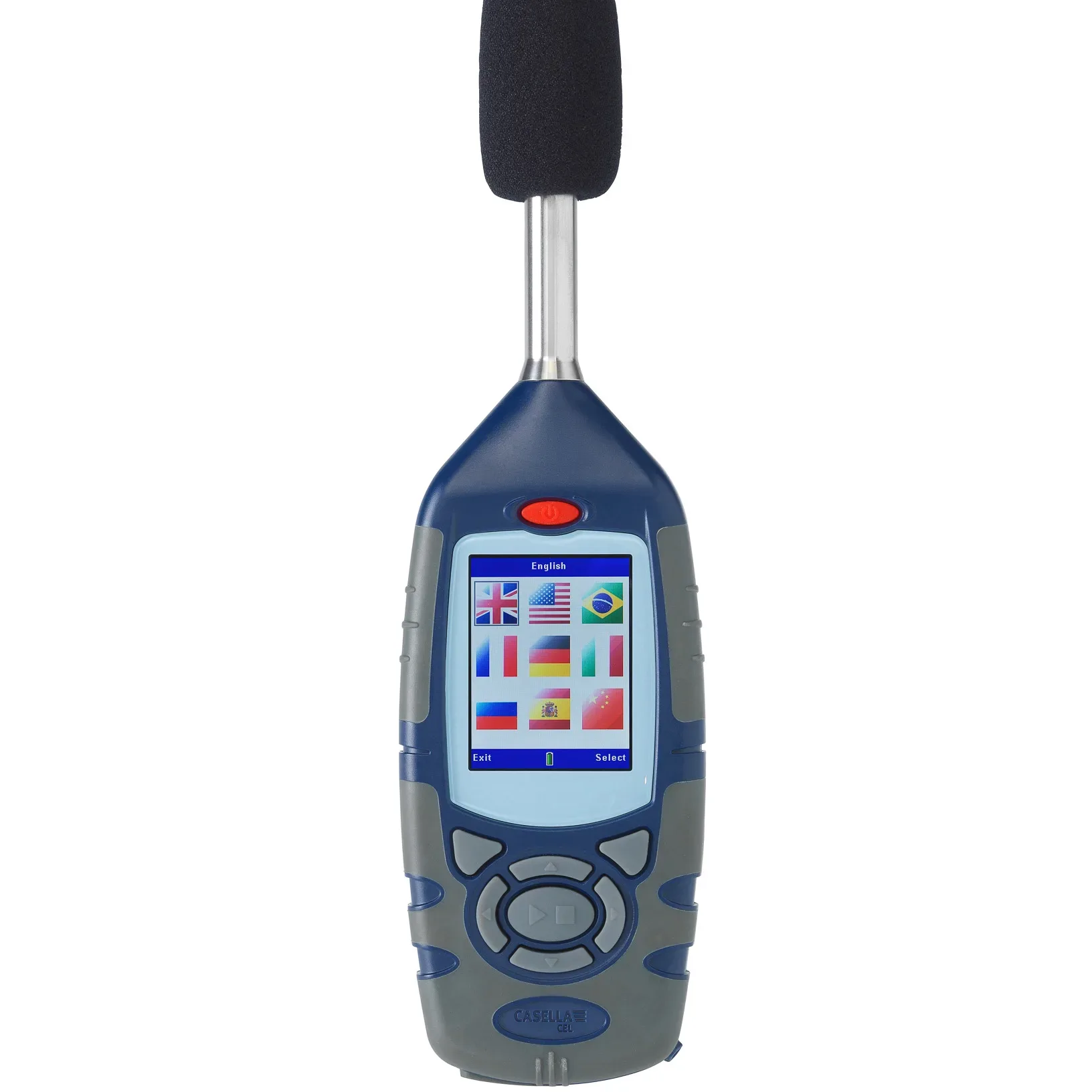

Instrument menu in 9 languages
-
Pre-defined and user configurations available
-
Automatic calibration function
-
Long battery life
Application/s:
-
Occupational Noise Measurement
-
Workplace noise according to ISO9612 and OSHA 29CFR 1910.95
-
Selection of hearing protection
-
Calculation of noise exposure
-
Ensuring compliance with workplace noise legislation
-
Machinery noise tests
Overview:
The CEL-620 Series Enhanced has new features including:
- Time history storage (Selectable from 1s to 30min)
- Larger memory (999 runs)
- Voice notes (Up to 33 hours of audio storage)
- GPS
The CEL-620 Enhanced digital Sound Level meters can be used for the measurement of all workplace noise parameters to comply with workplace noise legislation, e.g. EU, OSHA and ACGIH. Use the CEL-620 Series to carry out occupational noise assessments or machinery noise tests as well as to assist with the selection of hearing protection.
Choose a CEL-620 Series model to suit your requirements, either with a Class 1 or Class 2 Microphone for precision, and with or without Octave Band analysis, to aid you in the choice of hearing protection. The CEL-620 is a simple to use meter and data is displayed on the high resolution colour display. Measurement screens are intuitively colour coded according to the mode of operation, i.e. green if a measurement is being taken and red when a run has ended.
Data is graphically displayed to give a clearer picture of the noise environment. Calibrate easily on-site with the 120 Series Calibrator to comply with best practice. The instrument also has six selectable setups – four that are pre-defined to legislative standards and two that can be customised so that you get the data you need.

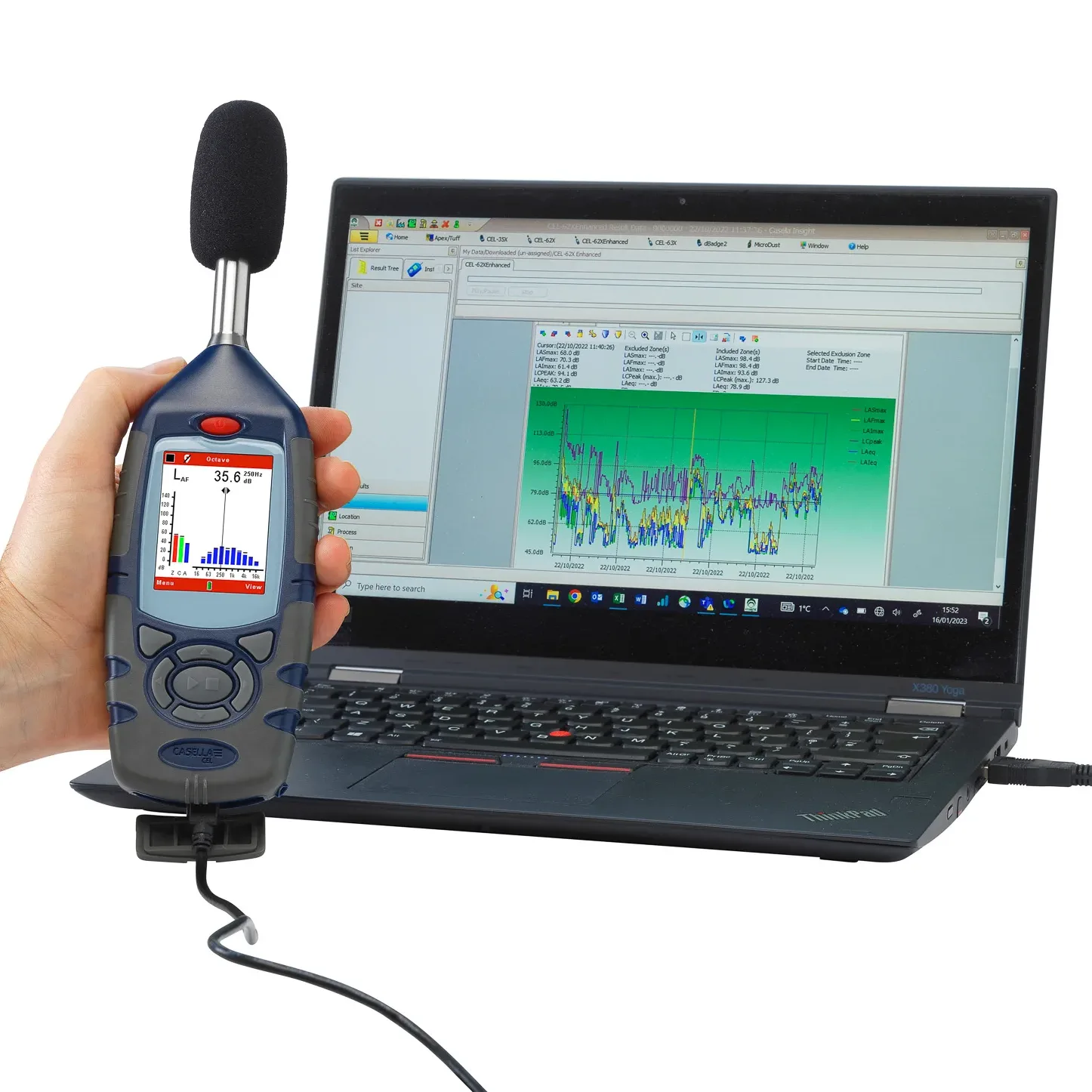

Regardless of the setup, the CEL-620 measures and stores ALL parameters, even if not selected and these can be viewed in the software. All runs are date and time stamped and the CEL-620 stores up to 999 runs. The 999 runs can be up to 24 hours each, even with the 1s time history stored. Simply connect your CEL-620 to a PC via the USB connection and the data can be easily reviewed without the need for proprietary software.
The instrument has a single large measurement range of 20-140dB meaning that you don’t need to change range. On the CEL-620B, Octave band analysis is shown in real-time in both graphical and tabular format with the dominant frequency highlighted.
Specifications:
| Total measurement range: | 20 to 140dB RMS (single range), 143.0 dB Peak |
| Frequency weightings RMS: | Simultaneous A, C & Linear (Z) |
| Frequency weightings Peak: | Simultaneous A, C & Linear (Z) |
| Time weightings: | Simultaneous Slow, Fast & Impulse |
| Amplitude weightings: | Q3, Q4 and Q5 (Q4 & Q5 applicable to L avg only) |
| Thresholds: | 70 to 90 (dB) in 1 dB steps (applicable to L avg only) |
| Noise floor: | <33dB(A) Class 2, <25dB(A) Class 1 |
| Memory: | 999 runs, up to 24 hour length per run. 33 hours of audio notes. Up to 1 years storage with 1s time history selected. |
| Display: | 320×240 pixel transmissive colour TFT |
| Frequency bands: | 11 octave bands 16Hz to 16kHz (CEL-620B model only) |
| Frequency bands: | 11 octave bands 16Hz to 16kHz (CEL-620B model only)
Selectable |
| Time history: | Time history storage from 1s to 30min |
| Audio notes: | Audio notes: 8,000 samples per second, 8bit, up to 4kHz |
| Calibration information: | Stores pre and post run calibration date, time and level |
| Output (P.C.): | USB 2.0 ‘A’ to ‘Mini B’ |
| Batteries: | 3 x AA Alkaline (supplied) or rechargeable |
| External power: | 9-14V DC at 250mA via 2.1mm connector |
| Battery life: | 11 hours with backlight on, 20 hours backlight off |
| Tripod mount: | 1/4” Whitworth socket |
| Size mm (in): | 72 x 229 x 31mm (2.8 x 9.0 x 1.2”) |
| Weight gm (oz): | 295g (10.4oz) |
Digital Technology:
The 620 series measures all the workplace noise parameters simultaneously with necessary time and frequency
weightings, preventing incorrect setup of the instrument.
The instrument has a single large measurement range of
20-140dB, eliminating the need to change measurement range and preventing errors.
On the CEL-620B model, octave analysis is performed in
real-time, saving time compared to performing
measurements sequentially.
Octave band results are shown in both bar-graph and tabular form with the dominant frequency highlighted.

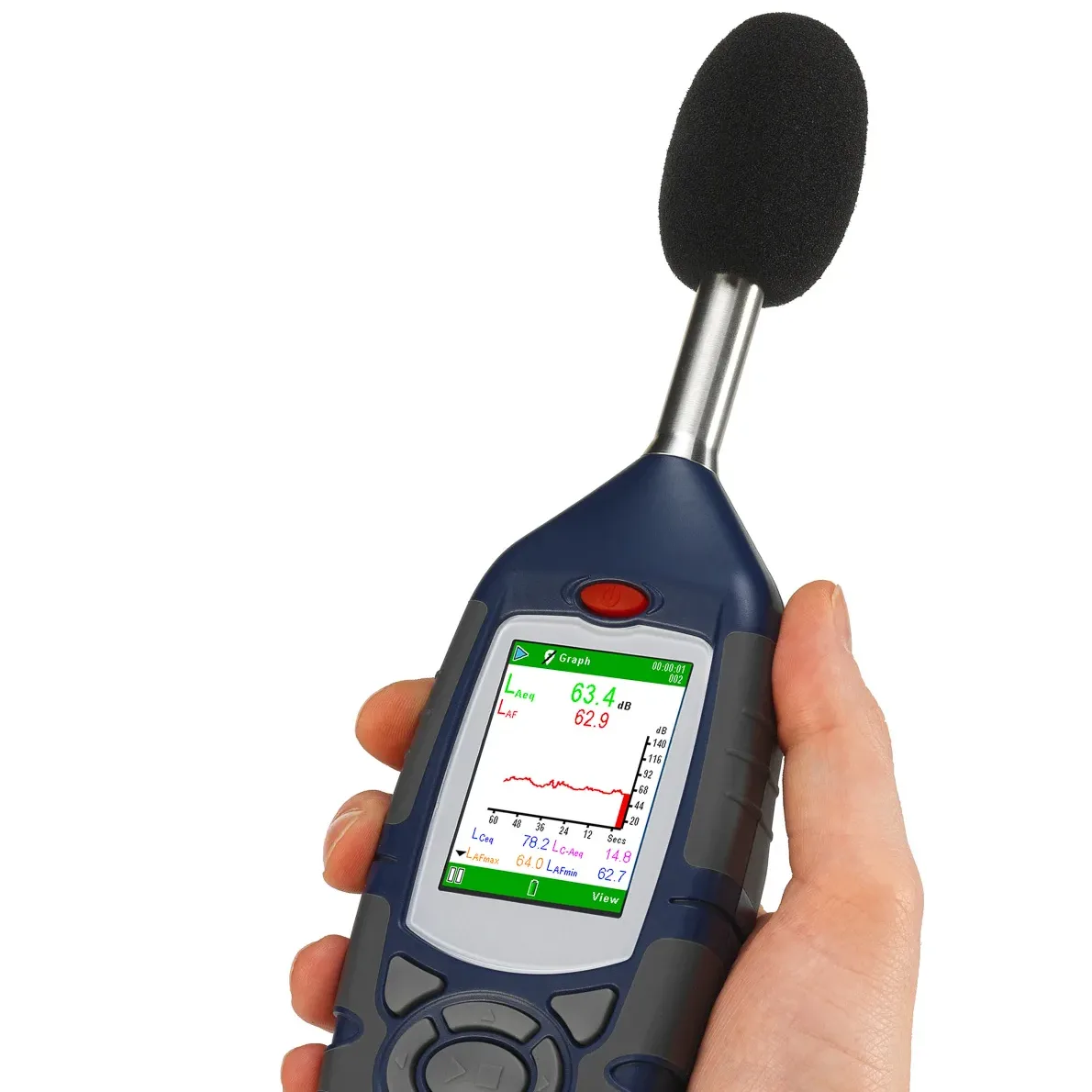

Time history of the broadband noise level is displayed in
real-time and stored in selectable 1s to 30min intervals, so a user can see how the noise level varies with time.
Time history display
Tabular octave results
Simple Operation:
The menu structure is designed to pick up and use without the use of a manual. A simple icon structure is used with word prompts for each selection.
The instrument has six selectable set-ups. Four pre-defined set-ups can be used to satisfy local workplace noise legislation. Two user set-ups can be defined to display parameters and weightings as required.
Up to 999 measurements can be stored without the need to download. All runs are date and time stamped.
• Intuitive menu structure
• Multilingual user interface
• Predefined and user selectable set-ups
Set-up selection
The 620 series uses colours on the high-resolution display to aid the user in making measurements. Measurement screens are colour coded depending on the mode of operation.

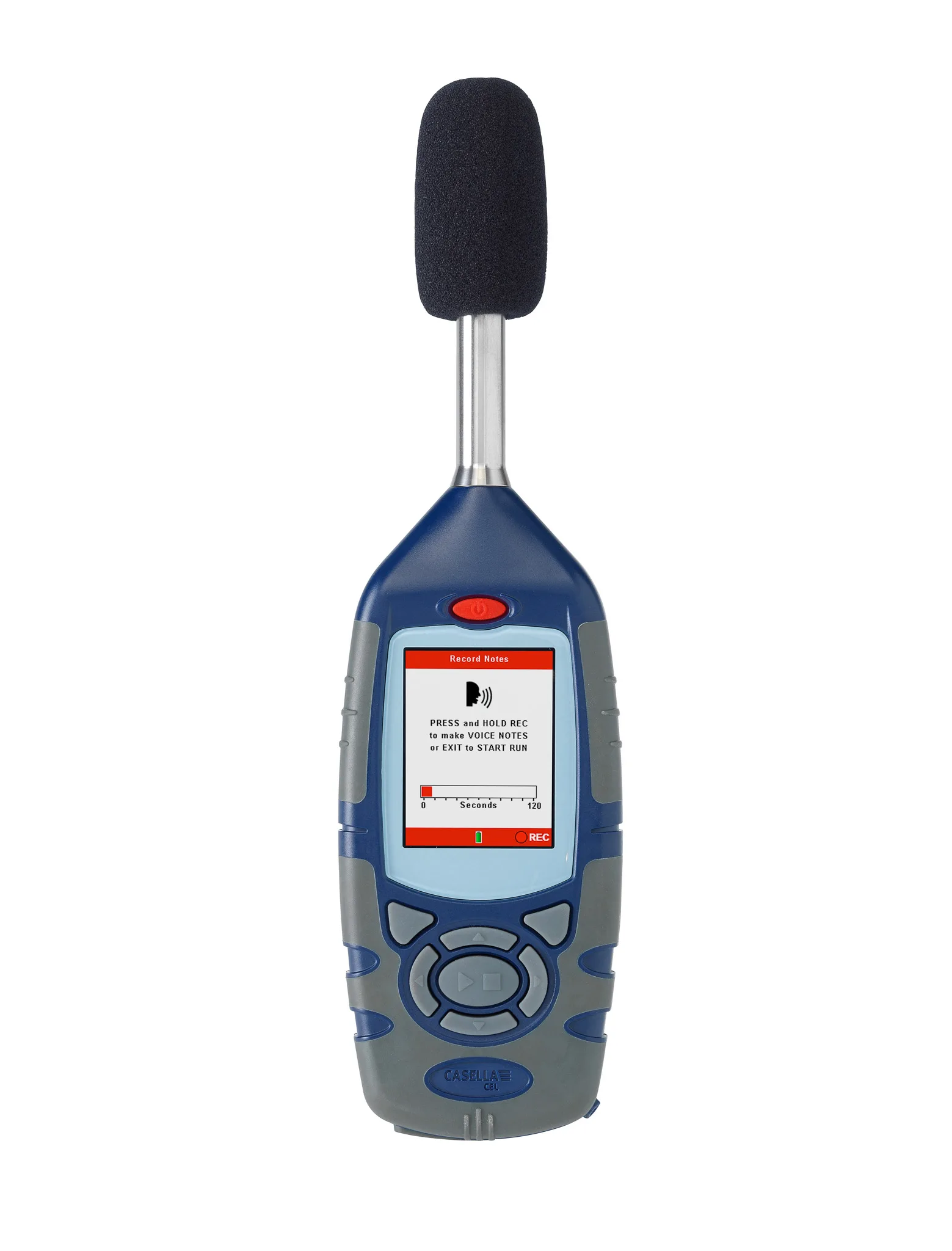

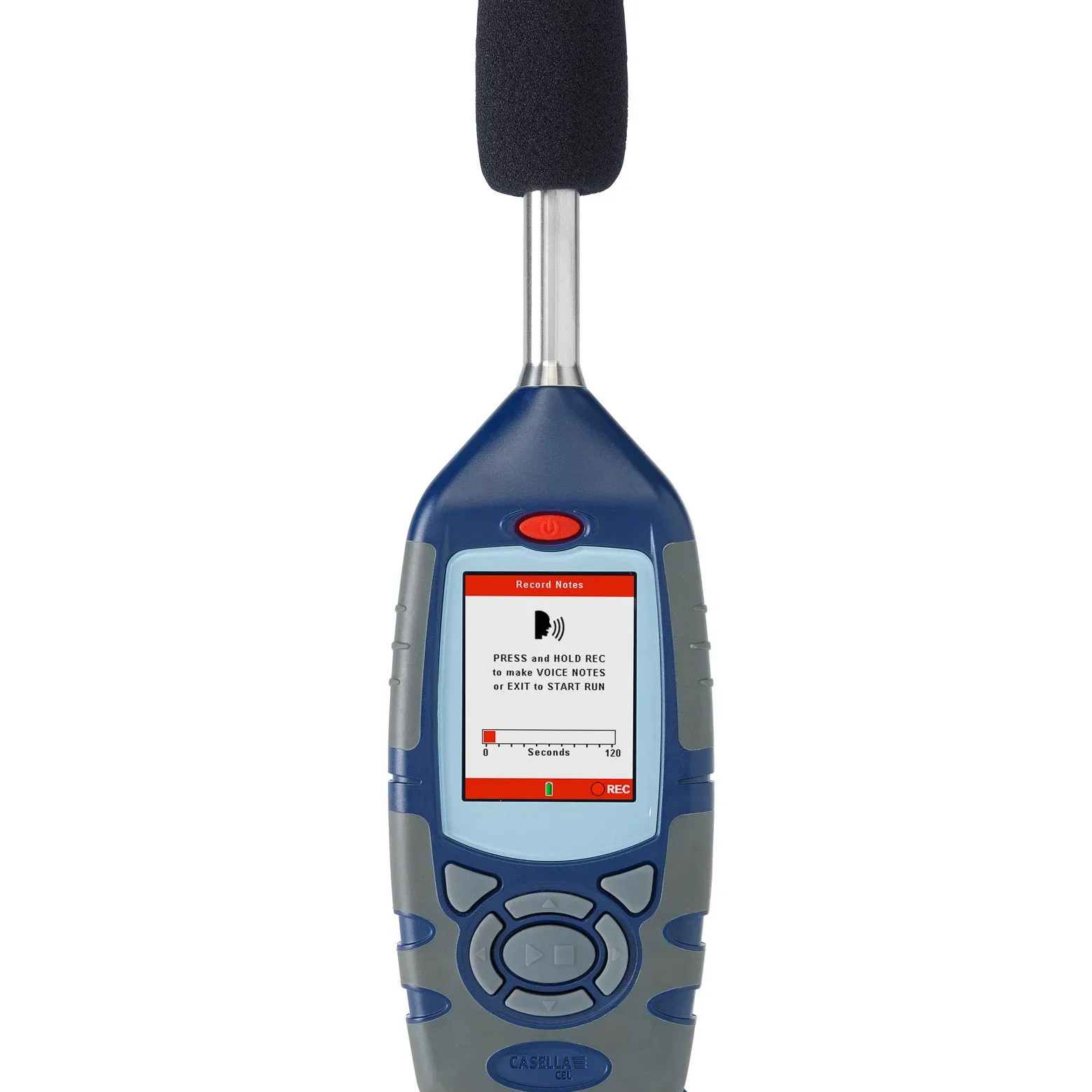

Audio Notes to save time during measurements
| Other Accessories. |
|||
| CEL-6840 | Standard kit case | CEL-6718 | Lightweight tripod |
| 206084D | Executive kit case | CEL-251 | Microphone Class 1 |
| CEL-6841 | Windshield | CEL-252 | Microphone Class 2 |
| CEL-120/1 | Acoustic Calibrator Class 1. | PC18 | Universal power supply |

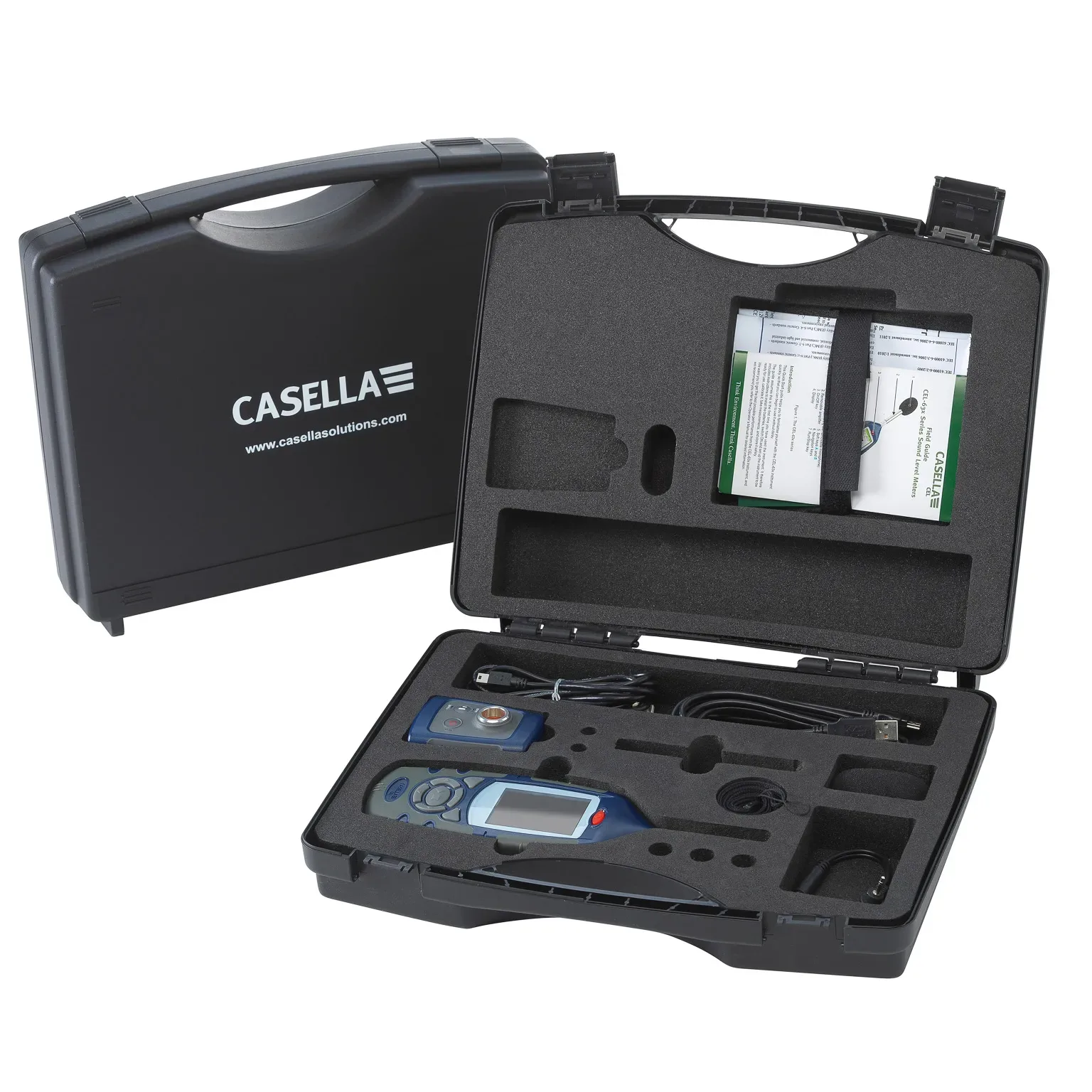

Instrument Kits
Complete kits are available with acoustic calibrator (CEL-120), kit case, windshield, instruction manuals and USB cable. For a complete instrument kit add /K1 to the part number e.g. CEL 620A2/K1. A typical instrument kit is pictured below.
Kits come complete with Casella Insight Data Management Software, see Insight data sheet for more details.

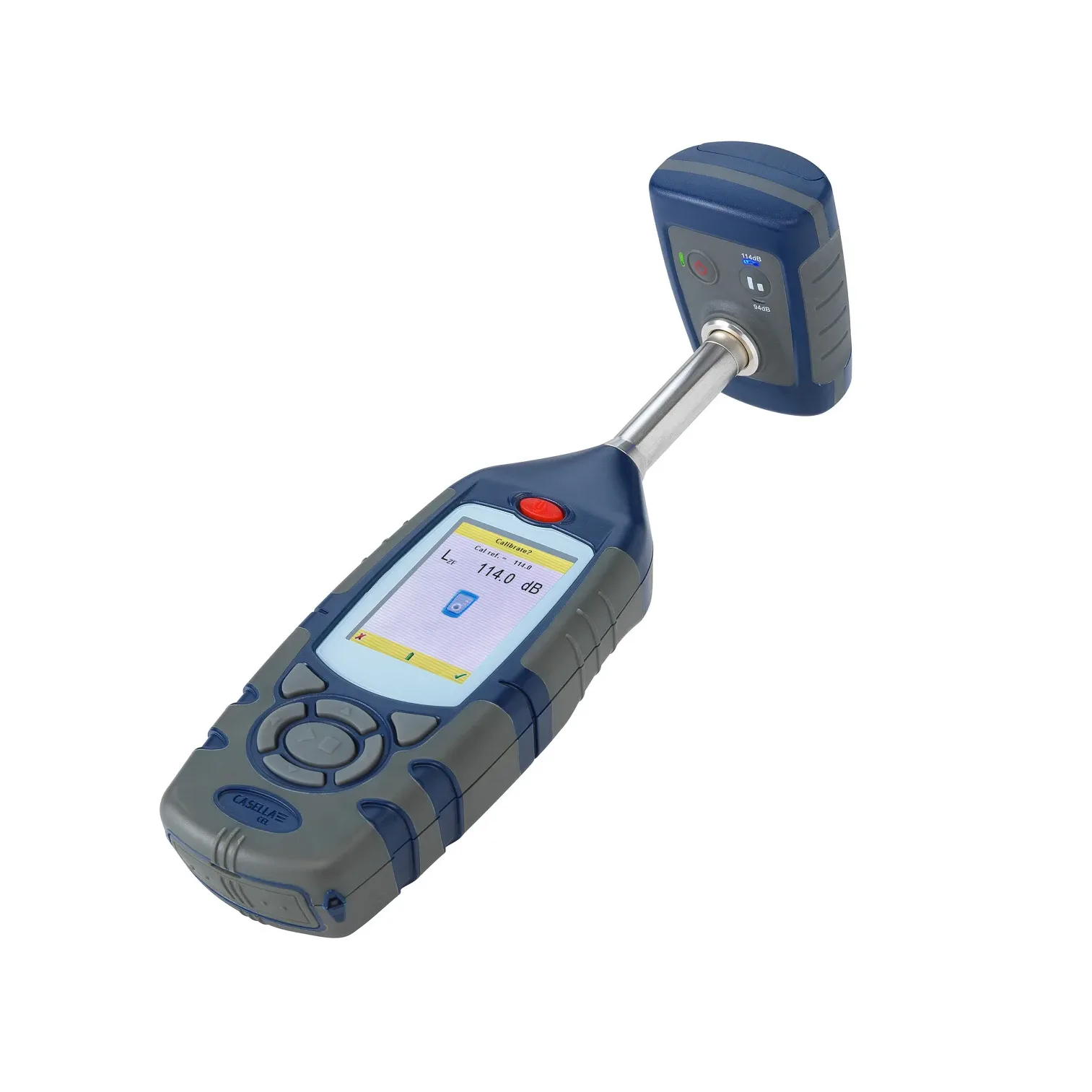

CEL-120 Calibrator
When the CEL-120 calibrator is attached, the instrument automatically enters calibration mode.
CEL-120 Calibrator
